Product Overview
Circuit Standard Profile Metal Shell Connector
Aptiv Interconnect Micro offers Micro-D Combo PCB Standard Profile Metal Shell Connectors designed for high reliability and performance in demanding environments. These PCB-mounted connectors support up to 10 coax or 65 signal positions and operate efficiently from −55°C to 200°C. Built with robust 6061-T6 Aluminum or Passivated 300 Series Stainless Steel shells, they provide superior mechanical strength and corrosion resistance for long lasting performance.
Features and Benefits

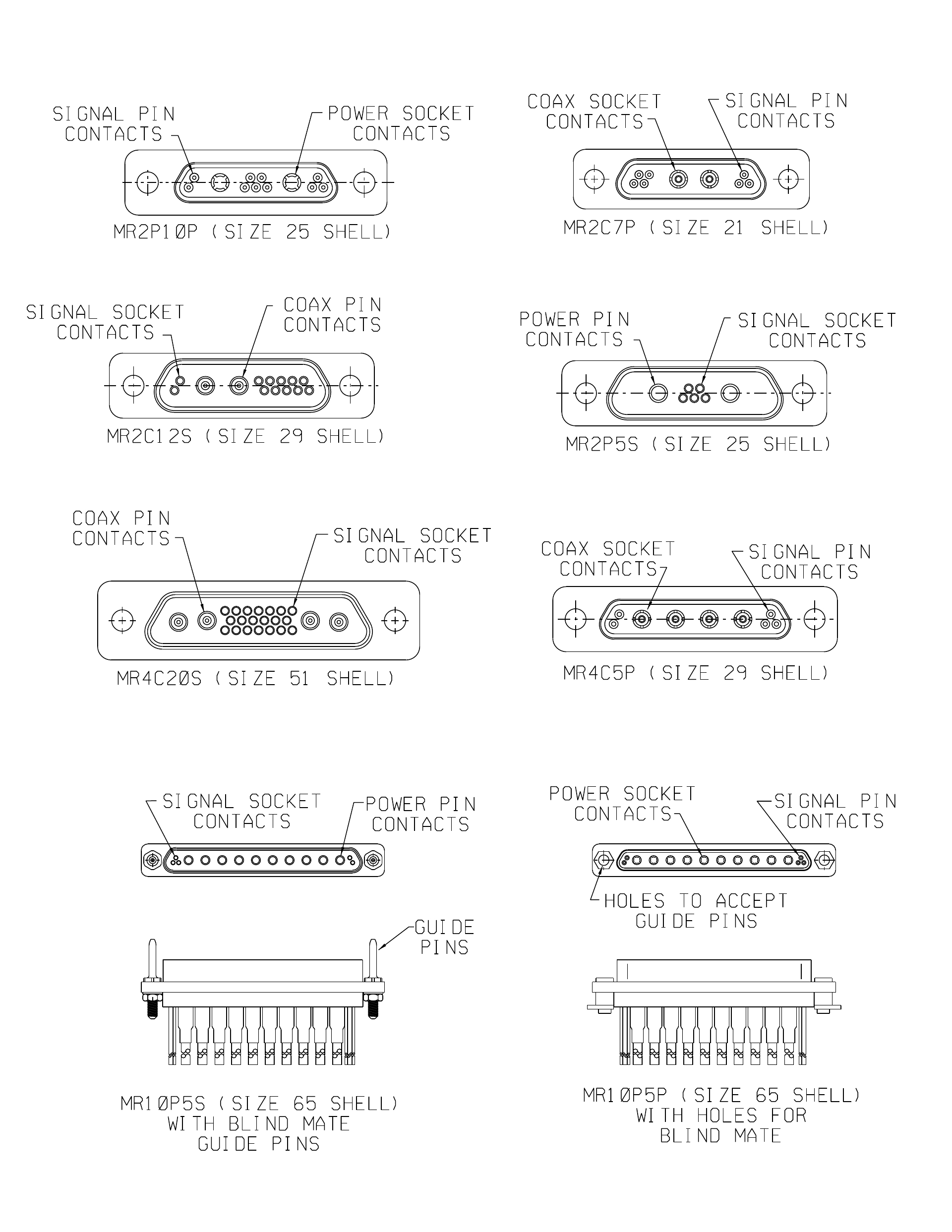

- Versatile Configurations: Supports up to 10 coax or 65 signal positions.
- Wide Temperature Range: Operates reliably from −55°C to 200°C for harsh environments.
- Durable Shell Construction: Available in 6061-T6 Aluminum (SAE-AMS-QQ-A200/8) or Passivated 300 Series Stainless Steel.
- Reliable Plating Options: Electroless Nickel (AMS 2404) or Cadmium (SAE-AMS-QQ-P-416) for enhanced corrosion protection.
- High-Performance Materials: Insulator made from PPS per MIL-M-24519 GST-40F; hardware from Passivated Stainless Steel per MIL-DTL-83513/05.
Specifications, Parts, and Filters
View All
Contact Resistance
8 milliohm max contact only and 32 millohms max with 6" length @ 2.5A.
Current Rating
3A max (Signal Contacts), 10A max Power Contacts.
Dielectric WithStanding Voltage
600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max for signal wire. 1300 VAC at sea level, 1mA leakage current max for power wire.
Insulation Resistance
500 VDC and 5000 Megohms min.
Impedance
Impedance Data (Coax) 37 ohm +/- 5%
Engaging Force
6 oz max. (Signal contacts only, no data for Power or Coax contacts)
Separation Force
.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)
Mating/Unmating Force
10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition E, 1 microsecond max discontinuity
Durability
500 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours
Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C21000 Brass Alloy per ASTM B36
Power Pin Contacts
C3600 Brass per ASTM B16
Power Socket Contacts
C17300 Beryllium Copper per ASTM B196
Coax Center Socket
C21000 Brass Alloy per ASTM B36
Coax Outer Socket
C17300 Beryllium Copper per ASTM B196
Coax Crimp Sleeve
C3600 Brass per ASTM B16
Coax Center Pin
C17200 Beryllium Copper per ASTM B194
Coax Outer Pin
C3600 Brass per ASTM B16
Coax Dielectric
Liquid Crystal Polymer per GLCP-30F
Contact Plating
.000050 Thick Gold Plating per ASTM B488
PC Tails
Copper Wire per A-A-59551 Type S
PC Tail Plating
.000320 min thk Tin plating per ASTM B545, or .000300 min thk 60/40 Tin/Lead plating per SAE-AMS-P-81728, or .000010 thk Gold plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel
Shell Plating
Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416
Insulator Material
Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F
Hardware
Passivated Stainless Steel per MIL-DTL-83513/05
Interfacial Seals
Fluorosilicone per MIL-R-25988 Std Profile (Receptacles only)
