Product Overview
Solderable Standard Profile Metal Shell Connector

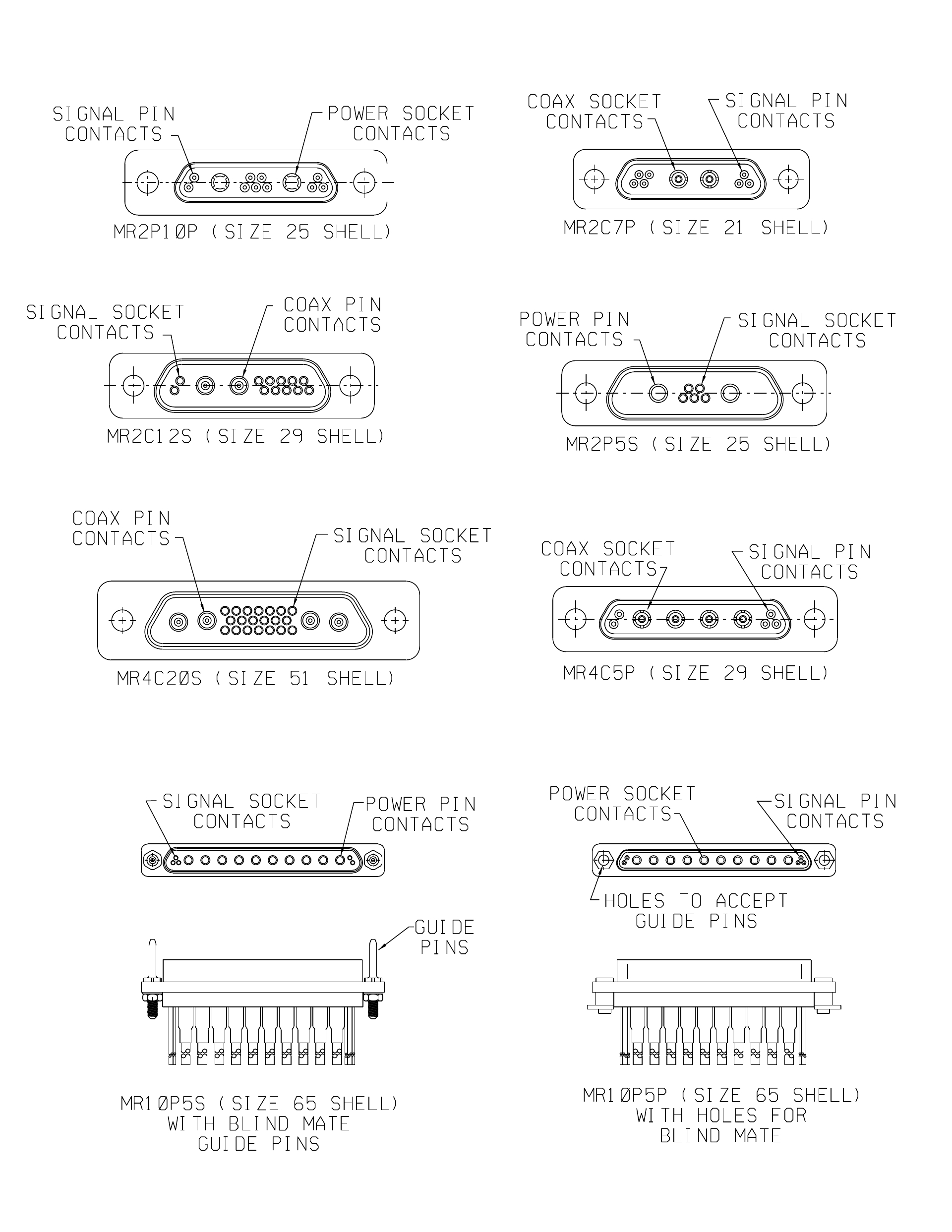

Aptiv Interconnect Micro offers Micro-D Combo Soldercup Standard Profile Metal Shell Connectors engineered for high reliability and performance in demanding environments. These quality connectors are available in multiple configurations, accommodating up to 10 coax or 65 signal positions. With an operating temperature range from −55°C to 200°C, they are built to withstand extreme conditions while maintaining stable electrical performance.
Features and Benefits
- Versatile Configurations: Available with up to 10 coax or 65 signal positions.
- Wide Temperature Range: Operates effectively from −55°C to 200°C for use in harsh conditions.
- Durable Shell Construction: Made from 6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel for superior strength.
- Protective Shell Plating: Options include Electroless Nickel per AMS 2404 or Cadmium Plating per SAE-AMS-QQ-P-416 for enhanced corrosion resistance.
- High-Performance Insulator: Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F ensures electrical stability.
- Reliable Hardware: Passivated Stainless Steel hardware per MIL-DTL-83513/05 provides mechanical durability.
- Environmental Sealing: Interfacial seals made of Fluorosilicone per MIL-R-25988 (standard profile, receptacles only) protect against moisture and contaminants.
- Rugged Design: Designed to provide long-term reliability in soldered interconnect applications.
Specifications, Parts, and Filters
View All
Contact Resistance
8 milliohm max contact only and 32 millohms max with 6" length @ 2.5A.
Current Rating
3A max (Signal Contacts), 10A max Power Contacts.
Dielectric WithStanding Voltage
600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max for signal wire. 1300 VAC at sea level, 1mA leakage current max for power wire.
Insulation Resistance
500 VDC and 5000 Megohms min.
Impedance
Impedance Data (Coax) 37 ohm +/- 5%
Engaging Force
6 oz max. (Signal contacts only, no data for Power or Coax contacts)
Separation Force
.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)
Mating/Unmating Force
10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition E, 1 microsecond max discontinuity
Durability
500 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours
Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C21000 Brass Alloy per ASTM B36
Power Pin Contacts
C3600 Brass per ASTM B16
Power Socket Contacts
C17300 Beryllium Copper per ASTM B196
Coax Center Socket
C21000 Brass Alloy per ASTM B36
Coax Outer Socket
C17300 Beryllium Copper per ASTM B196
Coax Crimp Sleeve
C3600 Brass per ASTM B16
Coax Center Pin
C17200 Beryllium Copper per ASTM B194
Coax Outer Pin
C3600 Brass per ASTM B16
Coax Dielectric
Liquid Crystal Polymer per GLCP-30F
Contact Plating
.000050 Thick Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel
Shell Plating
Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416
Insulator Material
Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F
Hardware
Passivated Stainless Steel per MIL-DTL-83513/05
Interfacial Seals
Fluorosilicone per MIL-R-25988 Std Profile (Receptacles only)
