Product Overview
Solderable Standard Profile Plastic Shell Connector
Aptiv Interconnect Micro offers Micro-D Combo Soldercup Standard Profile Plastic Shell Connectors that provide a reliable and versatile interconnect solution for cable applications. Featuring a durable plastic shell, these connectors are designed for ease of use and dependable performance across demanding environments. Available in multiple configurations, they support up to 10 coax or 65 signal positions and operate effectively across a wide temperature range from −55°C to 200°C (add HT).
Features and Benefits

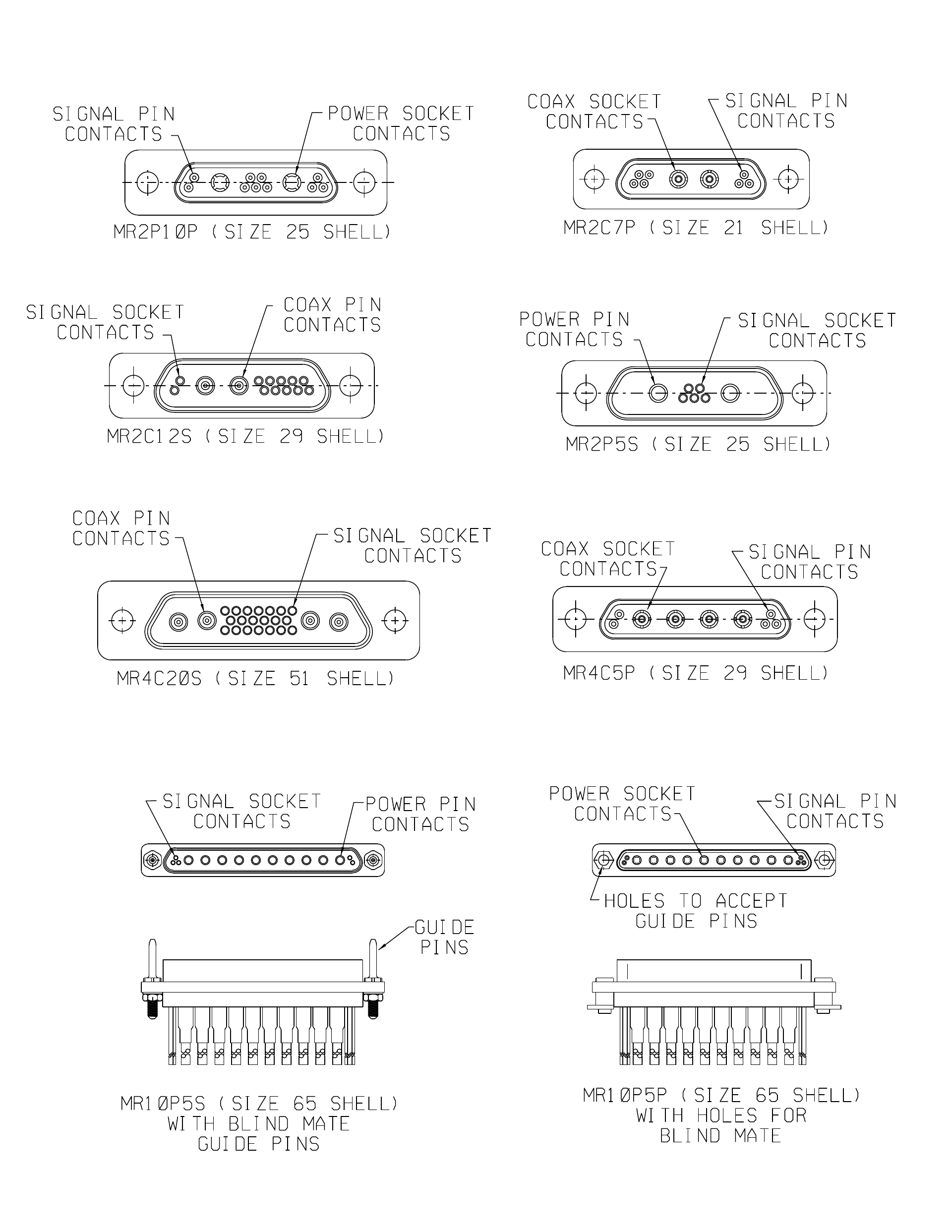

- Versatile Configurations: Supports up to 10 coax or 65 signal positions for flexible design integration.
- Wide Operating Temperature Range: Performs reliably from −55°C to 200°C (add HT) for high-temperature environments.
- Low Contact Resistance: 8 milliohms max (contact only) and 32 milliohms max with 6" length at 2.5A ensure efficient conductivity.
- High Current Capacity: Signal contacts rated at 3A max; power contacts rated up to 10A.
- Robust Voltage Withstand: Dielectric withstand voltage of 600 VAC at sea level, 150 VAC at 70,000 feet, and 1300 VAC at sea level for insulation reliability.
- Durable Plastic Shell: Provides a lightweight yet strong housing for demanding cable connection applications.
- Reliable Performance: Designed to maintain stability and electrical integrity under varying environmental conditions.
Specifications, Parts, and Filters
View All
Contact Resistance
8 milliohm max contact only and 32 millohms max with 6" length @ 2.5A.
Current Rating
3A max (Signal Contacts), 10A max Power Contacts.
Dielectric WithStanding Voltage
600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max for signal wire. 1300 VAC at sea level, 1mA leakage current max for power wire.
Insulation Resistance
500 VDC and 5000 Megohms min.
Impedance
Impedance Data (Coax) 37 ohm +/- 5%
Engaging Force
6 oz max. (Signal contacts only, no data for Power or Coax contacts)
Separation Force
.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)
Mating/Unmating Force
10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition E, 1 microsecond max discontinuity
Durability
500 matings, passes Mating Force, CR, Eng and Sep Forces
Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C21000 Brass Alloy per ASTM B36
Power Pin Contacts
C3600 Brass per ASTM B16
Power Socket Contacts
C17300 Beryllium Copper per ASTM B196
Coax Center Socket
C21000 Brass Alloy per ASTM B36
Coax Outer Socket
C17300 Beryllium Copper per ASTM B196
Coax Crimp Sleeve
C3600 Brass per ASTM B16
Coax Center Pin
C17200 Beryllium Copper per ASTM B194
Coax Outer Pin
C3600 Brass per ASTM B16
Coax Dielectric
Liquid Crystal Polymer per GLCP-30F
Contact Plating
.000050 Thick Gold Plating per ASTM B488
Shell
Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F
Insulator Material
Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F
Hardware
Passivated Stainless Steel per MIL-DTL-83513/05
