Product Overview
Right Angle .075 X .075 (Styles 9) Connector
Style 9 is a condensed footprint right angle connector designed to fit circuit board applications. It features a compact layout for space-efficient designs and serves as a drop-in replacement for the MR75 series industry standard. Spacing between rows is 0.075" on all layouts, and spacing between contacts in any one row is 0.075" on the 9 through 100 contact layouts.
Features and Benefits
- Condensed footprint for circuit board applications. Drop-in replacement for MR75 series industry standard.
- 0.075" spacing between rows on all layouts.
- 0.075" spacing between contacts in each row (9–100 layouts).

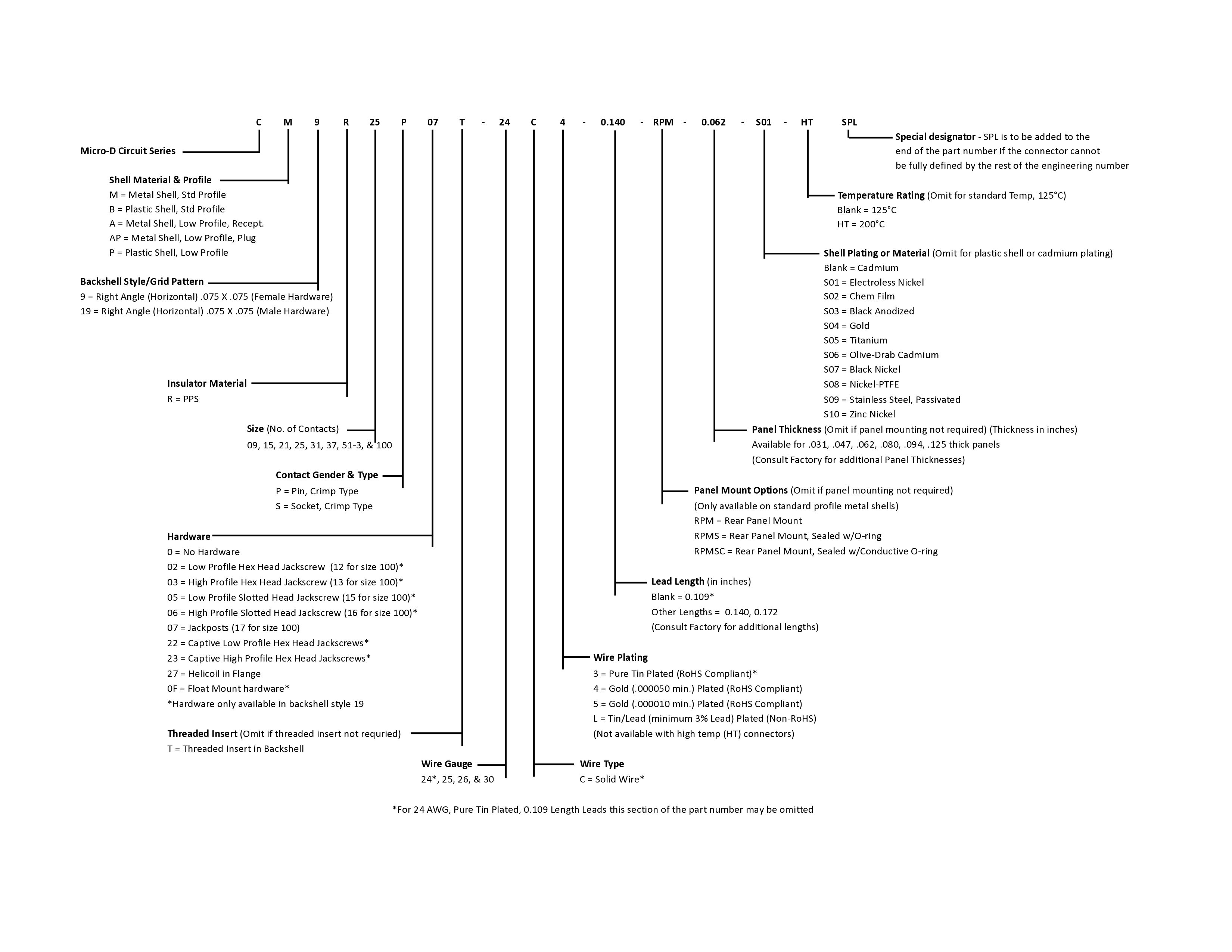

Specifications, Parts, and Filters

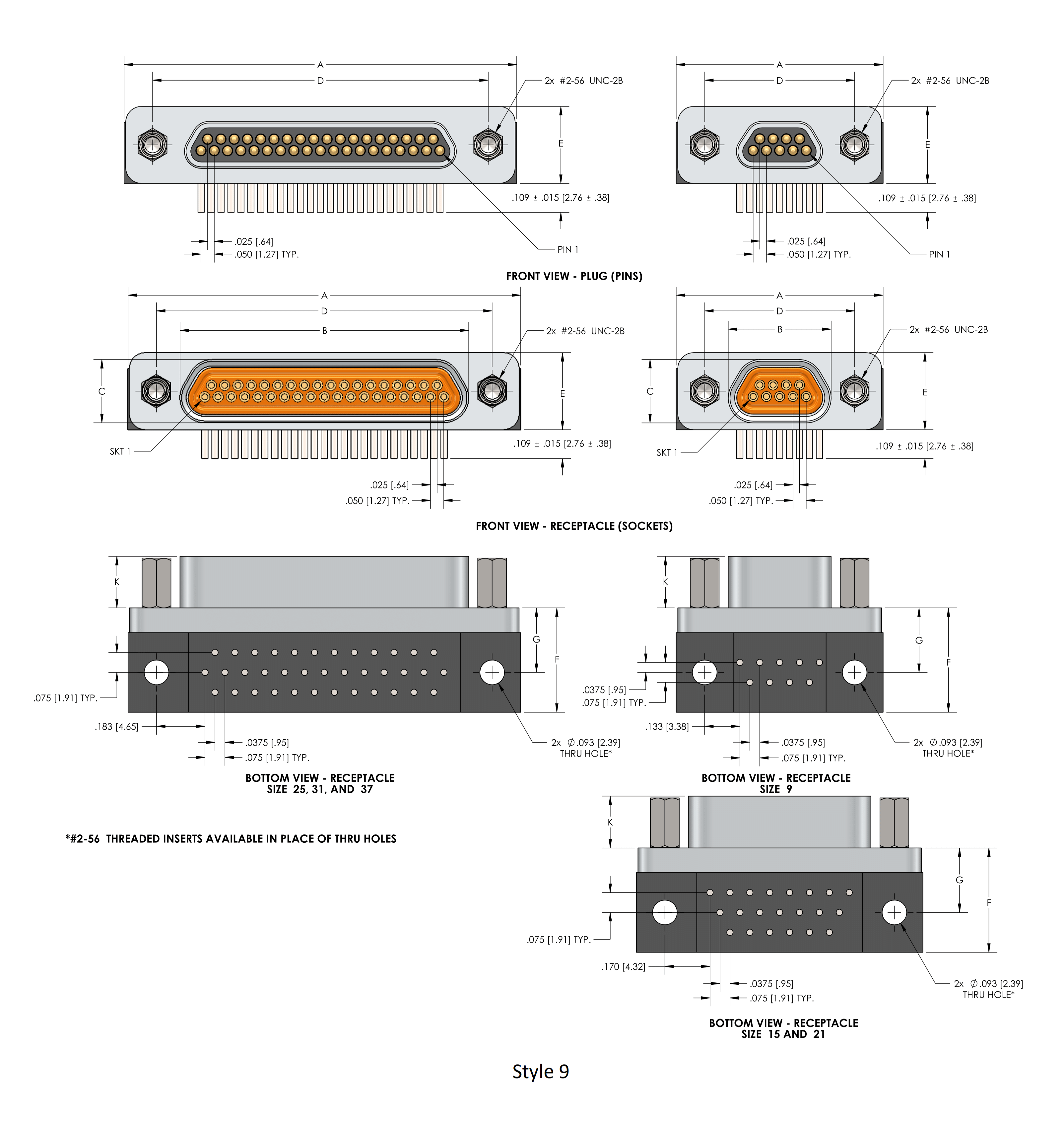

| 2D DIMENSIONAL DATA - MICRO CIRCUIT STYLE 9 &19 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A Max. | B Nom. | C Max. | E Max. | F Max. | G Max. | H Nom. |
| 9 | .785 (19.94) | .565 (14.35) | .400 (10.16) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| 15 | .935 (23.75) | .715 (18.16) | .550 (13.97) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| 21 | 1.085 (27.56) | .865 (21.97) | .700 (17.78) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| 25 | 1.185 (30.10) | .965 (24.51) | .800 (20.32) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| 31 | 1.335 (33.91) | 1.115 (28.32) | .950 (24.13) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| 37 | 1.485 (37.72) | 1.265 (32.13) | 1.100 (27.94) | .308 (7.82) | .410 (10.41) | .250 (6.35) | .138 (3.51) |
| Micro Circuit Right Angle Styles 9,19 | ||||||
|---|---|---|---|---|---|---|
| Size | Gender | Ordering# | Eng# | 2D | 3D | PCB |
| 9 | Style 9 Male | 836111317 | CM9R09P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836211317 | CM9R09S07-S01 | 2D | 3D | PCB | |
| Style 19 Male | 836119048 | CM19R09P02-S01 | 2D | 3D | ||
| Style 19 Female | 836219041 | CM19R09S02-S01 | 2D | 3D | ||
| 15 | Style 9 Male | 836121317 | CM9R15P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836221317 | CM9R15S07-S01 | 2D | 3D | ||
| Style 19 Male | 836129048 | CM19R15P02-S01 | 2D | 3D | ||
| Style 19 Female | 836229024 | CM19R15S02-S01 | 2D | 3D | ||
| 21 | Style 9 Male | 836131317 | CM9R21P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836231317 | CM9R21S07-S01 | 2D | PCB | ||
| Style 19 Male | 836139011 | CM19R21P02-S01 | 2D | 3D | ||
| Style 19 Female | 836239025 | CM19R21S02-S01 | 2D | |||
| 25 | Style 9 Male | 836141317 | CM9R25P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836241317 | CM9R25S07-S01 | 2D | 3D | PCB | |
| Style 19 Male | 836149039 | CM19R25P02-S01 | 2D | 3D | ||
| Style 19 Female | 836249034 | CM19R25S02-S01 | 2D | 3D | ||
| 31 | Style 9 Male | 836151317 | CM9R31P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836251317 | CM9R31S07-S01 | 2D | PCB | ||
| Style 19 Male | 836159018 | CM19R31P02-S01 | 2D | 3D | ||
| Style 19 Female | 836259036 | CM19R31S02-S01 | 2D | 3D | ||
| 37 | Style 9 Male | 836161317 | CM9R37P07-S01 | 2D | 3D | PCB |
| Style 9 Female | 836261317 | CM9R37S07-S01 | 2D | 3D | PCB | |
| Style 19 Male | 836169024 | CM19R37P02-S01 | 2D | 3D | ||
| Style 19 Female | 836269029 | CM19R37S02-S01 | 2D | 3D | ||
Part Number: 836211317
Engineering Part Number: CM9R09S07-S01
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836241317
Engineering Part Number: CM9R25S07-S01
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 25, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836768328
Engineering Part Number: CB9R37P07T-0.140
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.14, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 436111317
Engineering Part Number: CM9R09P07-S01-HT
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 436121317
Engineering Part Number: CM9R15P07-S01-HT
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 436131317
Engineering Part Number: CM9R21P07-S01-HT
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 436211317
Engineering Part Number: CM9R09S07-S01-HT
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 436221317
Engineering Part Number: CM9R15S07-S01-HT
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 836111317
Engineering Part Number: CM9R09P07-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836121317
Engineering Part Number: CM9R15P07-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .075 x .075 (style 9), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
