Right Angle .075 X .100 (Styles 18) Connector

Style 18 is a condensed footprint right angle connector designed for flex circuit applications where a jackscrew is required. It shares the same compact footprint as Style 8 and is recommended for new designs over older Styles 1 (CBR) and 5 (BR). The termination footprints are contained within the connector body envelope, providing optimal space savings.

Request Quote

Download Datasheet

Right Angle .075 X .100 (Styles 18) Connector product image

Condensed footprint right angle connector for flex circuit applications.
Includes jackscrew for secure flex circuit retention. Recommended for new designs over Styles 1 (CBR) and 5 (BR).
Termination footprints contained within connector body for compact design.
Shares same footprint as Style 8 for design interchangeability.
0.075" row spacing on all layouts.
Contact spacing: 0.100" for 9–37 layouts and 0.075" for 51–100 layouts.

View All

Contact Resistance

8 millihom max contact only + any solid lead resistance (depends on wire AWG) @ 2.5A

Current Rating

3A max.

Dielectric WithStanding Voltage

600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max.

Insulation Resistance

500 VDC and 5000 Megohms min.

Engaging Force

6 oz max. (Signal contacts only, no data for Power or Coax contacts)

Separation Force

.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)

Mating/Unmating Force

10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)

Vibration

EIA-364-28 Condition IV, 1 microsecond max discontinuity

Shock

EIA-364-27 Condition E, 1 microsecond max discontinuity

Durability

500 matings, passes Mating Force, CR, Eng and Sep Forces

Salt Spray

EIA 364-26 Condition B-48 hours

Signal Pin Contacts

C17200 Beryllium Copper per ASTM B194

Signal Socket Contacts

C21000 Brass Alloy per ASTM B36

Contact Plating

.000050 Thk Gold Plating per ASTM B488

PC Tails

Copper Wire per A-A-59551 Type S

PC Tail Plating

.000320 min thk Tin plating per ASTM B545, or .000300 min thk Tin/Lead with minimum 3% lead plating per SAE-AMS-P-81728, or .000010 thk Gold plating per ASTM B488

Shell

6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel

Shell Plating

Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416

Insulator Material

Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F

Hardware

Passivated Stainless Steel Per MIL-DTL-83513/05

Interfacial Seals

Fluorosilicone per MIL-R-25988 (Std Profile Receptacles only)

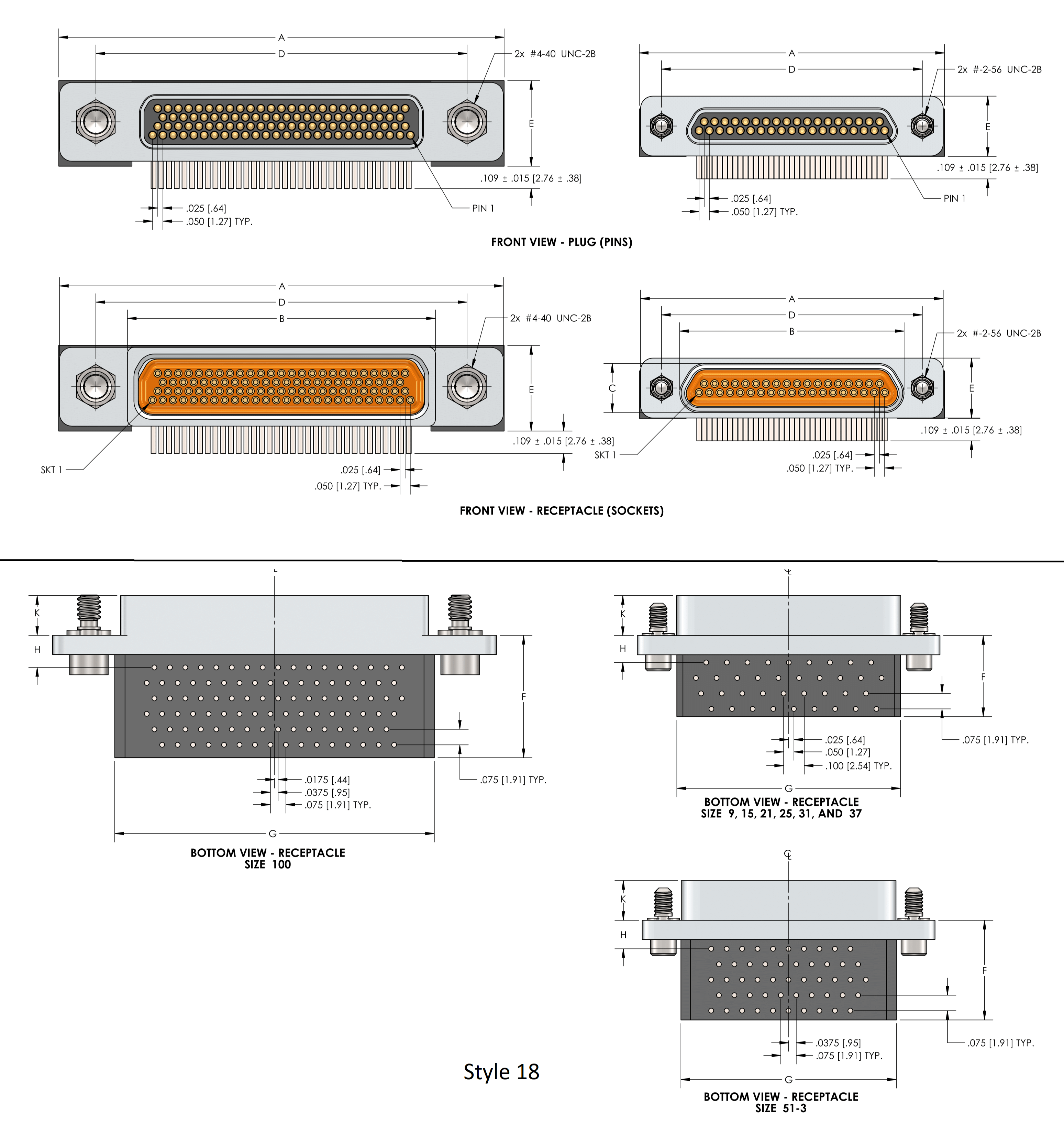

2D DIMENSIONAL DATA - MICRO CIRCUIT STYLE 8 &18
Size	A Max.	B Nom.	C Max.	E Max./ A & P.	E Max./ M & B	F Max.	G Max.	H Max.
9	.785 (19.94)	.565 (14.35)	.400 (10.16)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
15	.935 (23.75)	.715 (18.16)	.550 (13.97)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
21	1.085 (27.56)	.865 (21.97)	.700 (17.78)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
25	1.185 (30.10)	.965 (24.51)	.800 (20.32)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
31	1.335 (33.91)	1.115 (28.32)	.950 (24.13)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
37	1.485 (37.72)	1.265 (32.13)	1.100 (27.94)	.218 (5.54)	.308 (7.82)	.410 (10.41)	.250 (6.35)	.138 (3.51)
51-3	1.435 (36.45)	1.215 (30.86)	1.045 (26.54)	.260 (6.60)	.351 (8.92)	.500 (12.70)	.295 (7.49)	.145 (3.68)
100	2.170 (55.12)	1.800 (45.72)	1.550 (39.37)	N/A	.394 (10.01)	.615 (15.62)	.350 (8.89)	.163 (4.14)

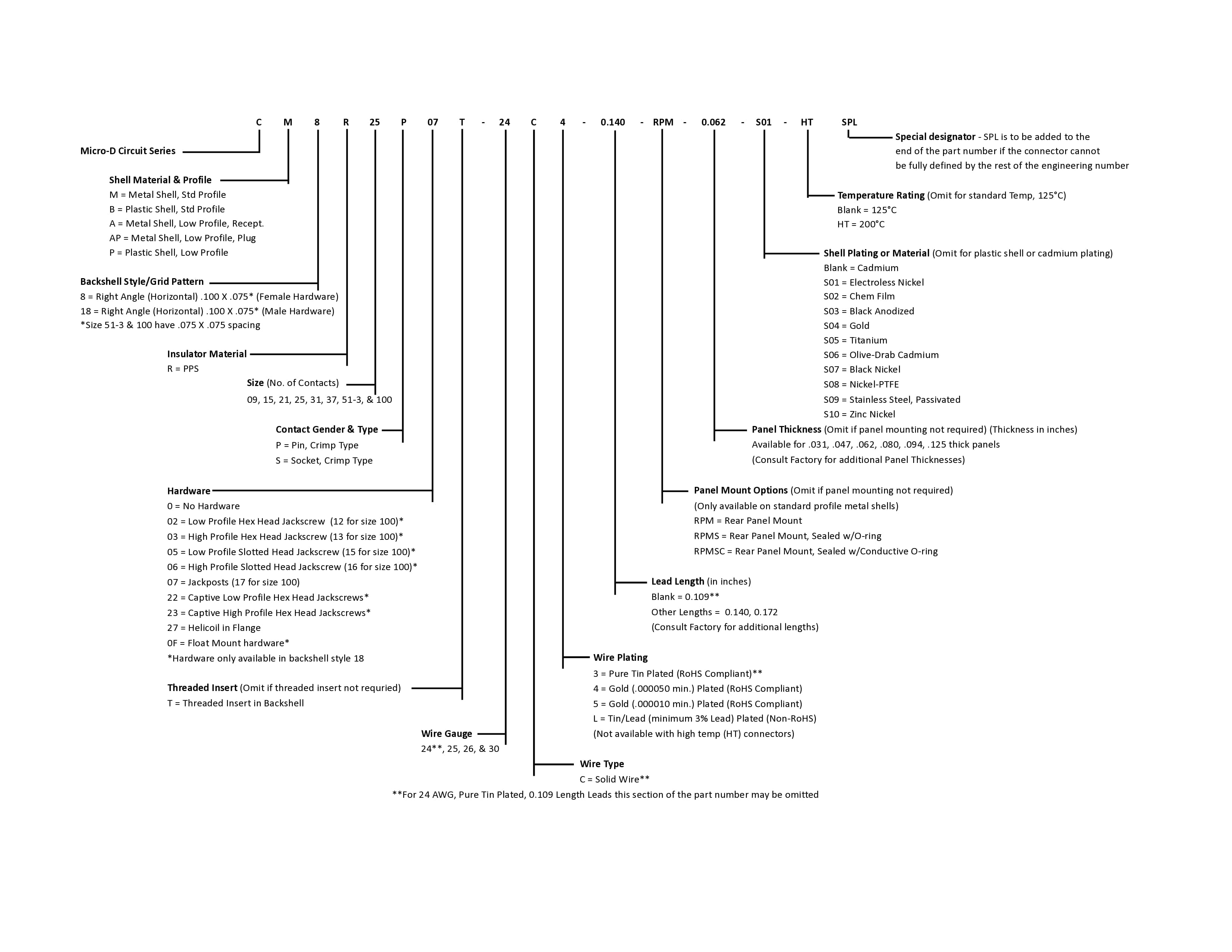

Micro Circuit Right Angle Styles 8, 18
Size	Gender	Ordering#	Eng#	2D	3D	PCB
9	Style 8 Male	836111817	CM8R09P07-S01	2D	3D	PCB
	Style 8 Female	836211817	CM8R09S07-S01	2D	3D	PCB
	Style 18 Male	836111012	CM18R09P02-S01	2D	3D
	Style 18 Female	836211012	CM18R09S02-S01	2D	3D
15	Style 8 Male	836121817	CM8R15P07-S01	2D	3D	PCB
	Style 8 Female	836221817	CM8R15S07-S01	2D	3D	PCB
	Style 18 Male	836121012	CM18R15P02-S01	2D	3D
	Style 18 Female	836221012	CM18R15S02-S01	2D	3D
21	Style 8 Male	836131817	CM8R21P07-S01	2D	3D	PCB
	Style 8 Female	836231817	CM8R21S07-S01	2D	3D	PCB
	Style 18 Male	836131012	CM18R21P02-S01	2D	3D
	Style 18 Female	836231012	CM18R21S02-S01	2D	3D
25	Style 8 Male	836141817	CM8R25P07-S01	2D	3D	PCB
	Style 8 Female	836241817	CM8R25S07-S01	2D	3D	PCB
	Style 18 Male	836141012	CM18R25P02-S01	2D	3D
	Style 8 Female	836241012	CM18R25S02-S01	2D	3D
31	Style 8 Male	836151817	CM8R31P07-S01	2D	3D	PCB
	Style 8 Female	836251817	CM8R31S07-S01	2D	3D	PCB
	Style 18 Male	836151012	CM18R31P02-S01	2D	3D
	Style 18 Female	836251012	CM18R31S02-S01	2D	3D
37	Style 8 Male	836161817	CM8R37P07-S01	2D	3D	PCB
	Style 8 Female	836261817	CM8R37S07-S01	2D	3D	PCB
	Style 18 Male	836161012	CM18R37P02-S01	2D	3D
	Style 18 Female	836261012	CM18R37S02-S01	2D	3D
51-3	Style 8 Male	836171817	CM8R51-3P07-S01	2D	3D	PCB
	Style 8 Female	836271817	CM8R51-3S07-S01	2D	3D	PCB
	Style 18 Male	836171012	CM18R51-3P02-S01	2D	3D
	Style 18 Female	836271012	CM18R51-3S02-S01	2D	3D
100	Style 8 Male	836181817	CM8R100P07-S01	2D	3D	PCB
	Style 8 Female	836281817	CM8R100S07-S01	2D	3D	PCB
	Style 18 Male	836181012	CM18R100P02-S01	2D	3D
	Style 18 Female	836281012	CM18R100S02-S01	2D	3D
