Right Angle .100 X .100 (Style 1) Connector
Aptiv Interconnect Micro offers Right Angle .100 x .100 (Style 1) Connectors designed for a variety of PCB applications. This Style 1 (CBR) connector is a reliable, condensed right-angle mount with 90° termination exit leads on a .100 x .100 grid. It features mounting thru holes with optional jackposts for jackscrews and meets MILDTL-83513 slash sheets 10–15 for the “M” series.
Features and Benefits
- Condensed Right-Angle Design: 90° termination exit leads on a .100 x .100 grid.
- Mounting Versatility: Thru holes and optional jackposts for jackscrew use.
- MIL-DTL-83513 Qualified: Complies with slash sheets 10–15 for the “M” series.
- Low Contact Resistance: 8 milliohms max for efficient power transmission.
- High Current Capacity: Rated up to 3A max at room temperature.
- Strong Electrical Integrity: 600 VAC at sea level, 150 VAC at 70,000 ft dielectric withstand.
- Reliable Insulation: 5000 MΩ minimum at 500 VDC for consistent performance.
- Rugged and Proven: Ensures long-term reliability in demanding PCB applications.
Specifications, Parts, and Filters

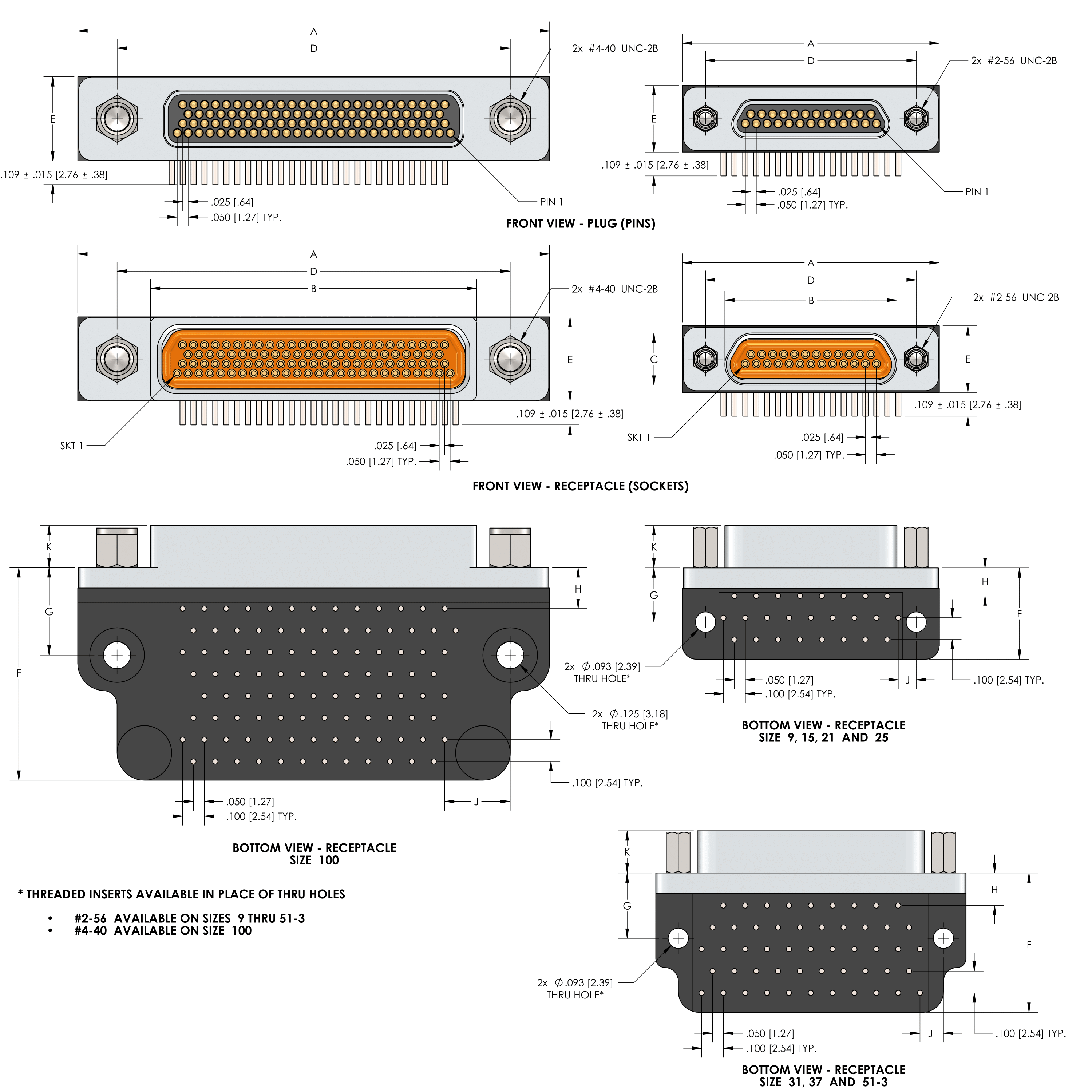

| 2D DIMENSIONAL DATA - MICRO CIRCUIT STYLE 1 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | A Max. | D +/- .005 | E Max./ M & B | E Max. / A & P | F Max. | G +/- .010 | H +/- .010 | J +/- .005 |
| 9 | .785 (19.94) | .565 (14.35) | .310 (7.87) | .218 (5.54) | .425 (10.80) | .250 (6.35) | .230 (5.84) | .083 (2.11) |
| 15 | .935 (23.75) | .715 (18.16) | .310 (7.87) | .218 (5.54) | .425 (10.80) | .250 (6.35) | .130 (3.30) | .108 (2.74) |
| 21 | 1.085 (27.56) | .865 (21.97) | .310 (7.87) | .218 (5.54) | .425 (10.80) | .250 (6.35) | .130 (3.30) | .083 (2.11) |
| 25 | 1.185 (30.10) | .965 (24.51) | .310 (7.87) | .218 (5.54) | .425 (10.80) | .250 (6.35) | .130 (3.30) | .083 (2.11) |
| 31 | 1.335 (33.91) | 1.115 (28.32) | .310 (7.87) | .218 (5.54) | .525 (13.34) | .250 (6.35) | .130 (3.30) | .158 (4.01) |
| 37 | 1.485 (37.72) | 1.265 (32.13) | .310 (7.87) | .218 (5.54) | .525 (13.34) | .250 (6.35) | .130 (3.30) | .183 (4.65) |
| 51-3 | 1.435 (36.45) | 1.215 (30.86) | .351(8.92) | .260 (6.60) | .660 (16.76) | .300 (7.62) | .150 (3.81) | .108 (2.74) |
| 100 | 2.165 (54.99) | 1.800 (45.72) | .394 (10.01) | N/A | 1.010 (25.65) | .400 (10.16) | .200 (5.08) | .275 (6.98) |

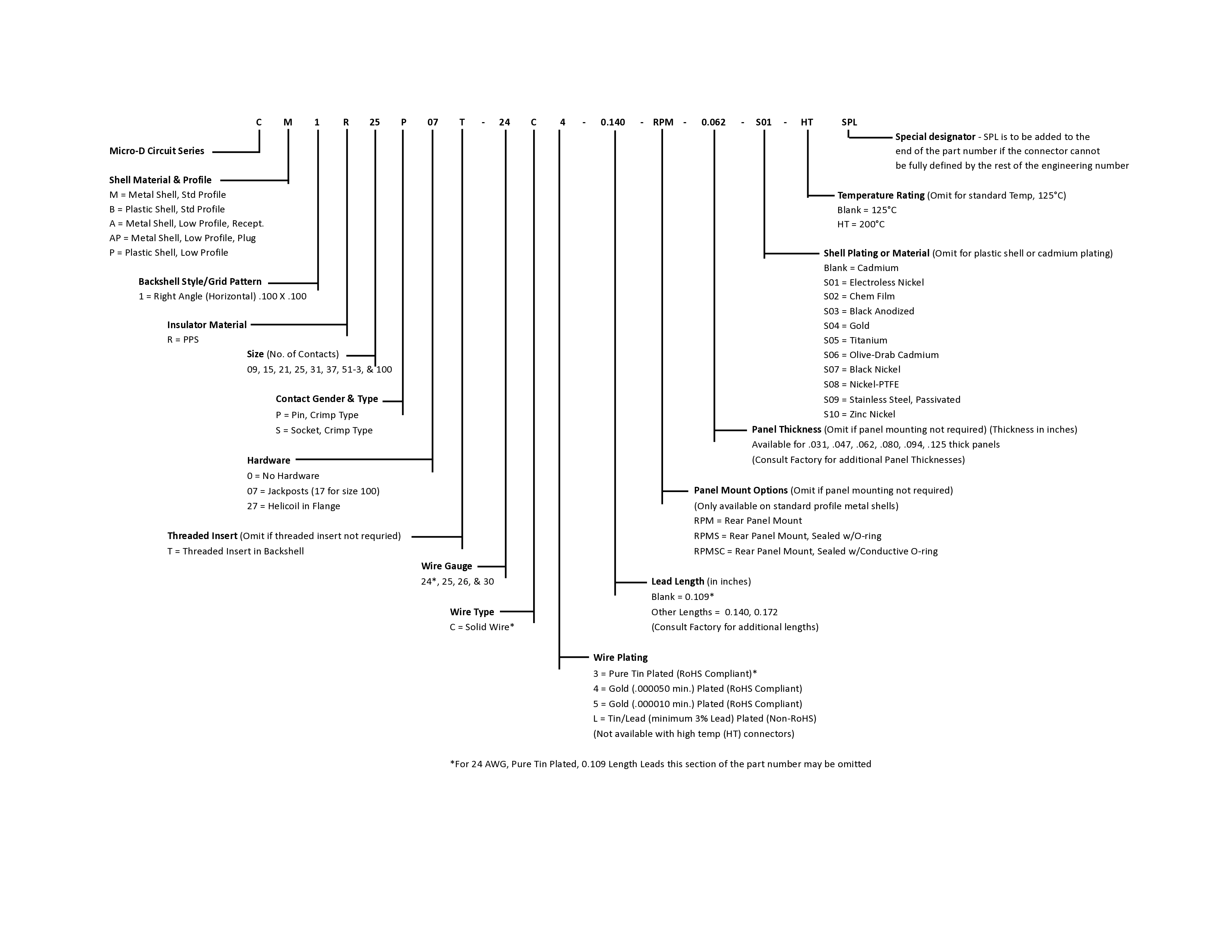

Part Number: 836161118
Engineering Part Number: CM1R37P07T-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836161137
Engineering Part Number: CM1R37P07-.172-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.172, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170117
Engineering Part Number: CM1R51-3P07
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170127
Engineering Part Number: CM1R51-3P07-.140
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.14, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170128
Engineering Part Number: CM1R51-3P07T-.140
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.14, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170129
Engineering Part Number: CM1R51-3P0T-0.140
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.14, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836171110
Engineering Part Number: CM1R51-3P0-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836171117
Engineering Part Number: CM1R51-3P07-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836171118
Engineering Part Number: CM1R51-3P07T-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836171127
Engineering Part Number: CM1R51-3P07-0.140-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 1), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.14, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
