Right Angle .100 X .100 (Style 5) Connector

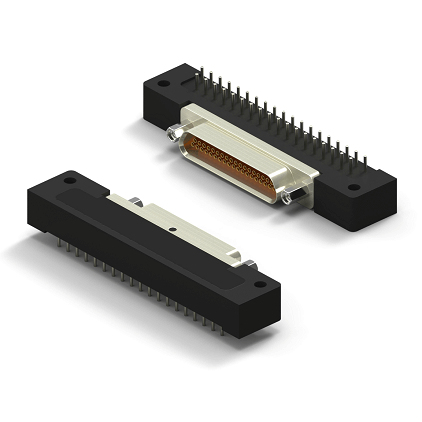

Aptiv Interconnect Micro offers Right Angle .100 X .100 (Style 5) Connectors. Our Style 5 (BR) is a right-angle circuit board connector with exit leads on a .100 x .100 grid, sharing the same footprint as Style 4. These quality connectors include mounting thru-holes and jackposts for coupling and adhere to slash sheets 16 through 21 of MILDTL-83513, exclusively for the “M” series. For applications requiring a denser footprint, Style 8 with a .075 grid is recommended.
Features and Benefits
- Right-Angle Circuit Board Connector: Exit leads on a .100 x .100 grid.
- Compatible Footprint: Shares the same layout as Style 4.
- Mounting Thru-Holes and Jackposts: Provides secure coupling.
- MIL-DTL-83513 Compliant: Meets slash sheets 16–21 for the “M” series.
- Low Contact Resistance: 8 milliohm maximum at 2.5A.
- High Current Rating: 3A maximum at room temperature.
- Dielectric Strength: 600 VAC at sea level and 150 VAC at 70,000 feet.
- Leakage Current: Maximum 1mA at room temperature.
- High Insulation Resistance: 500 VDC, minimum 5000 Megohms.
- Denser Footprint Option: Style 8 (.075 grid) recommended for tighter layouts.
Specifications, Parts, and Filters

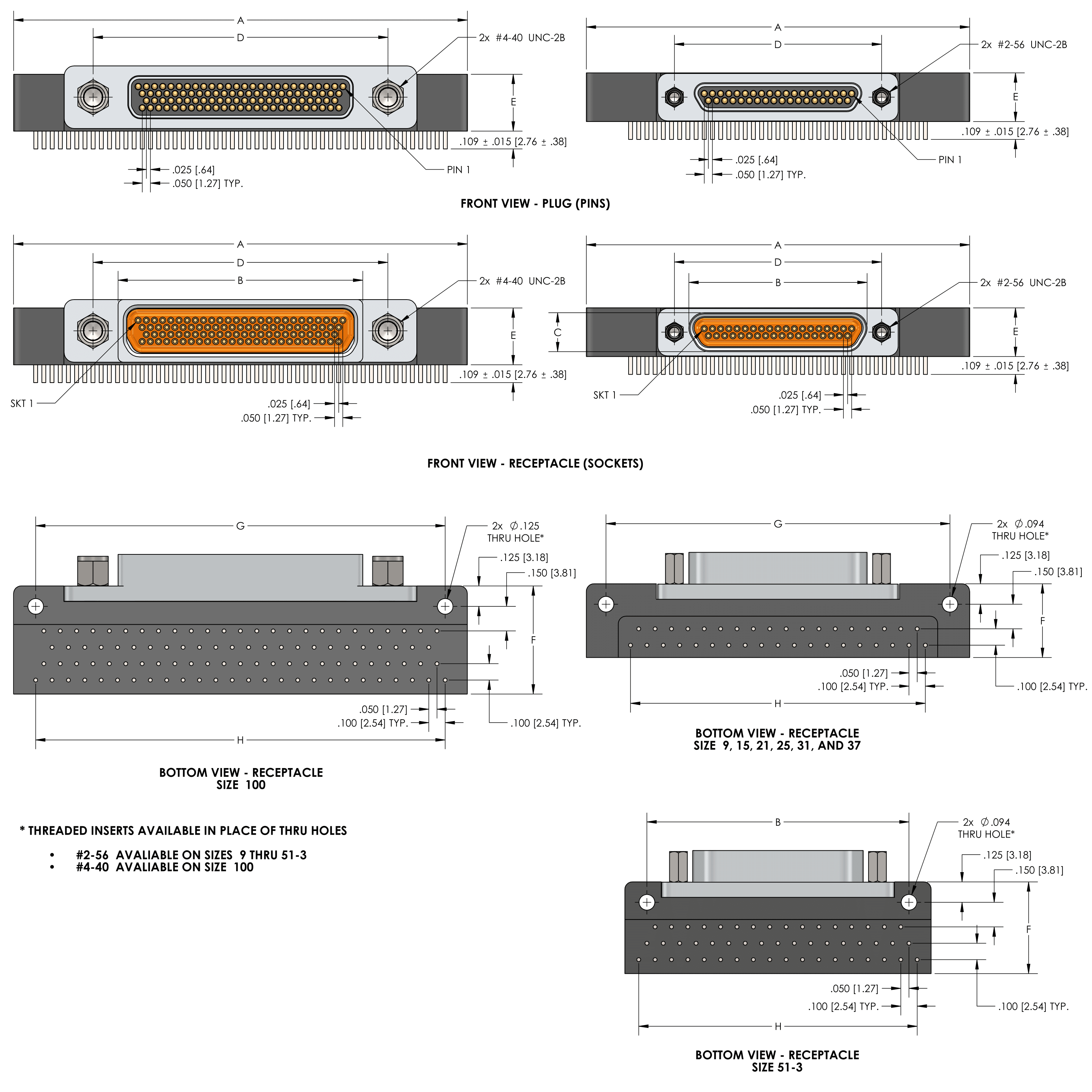

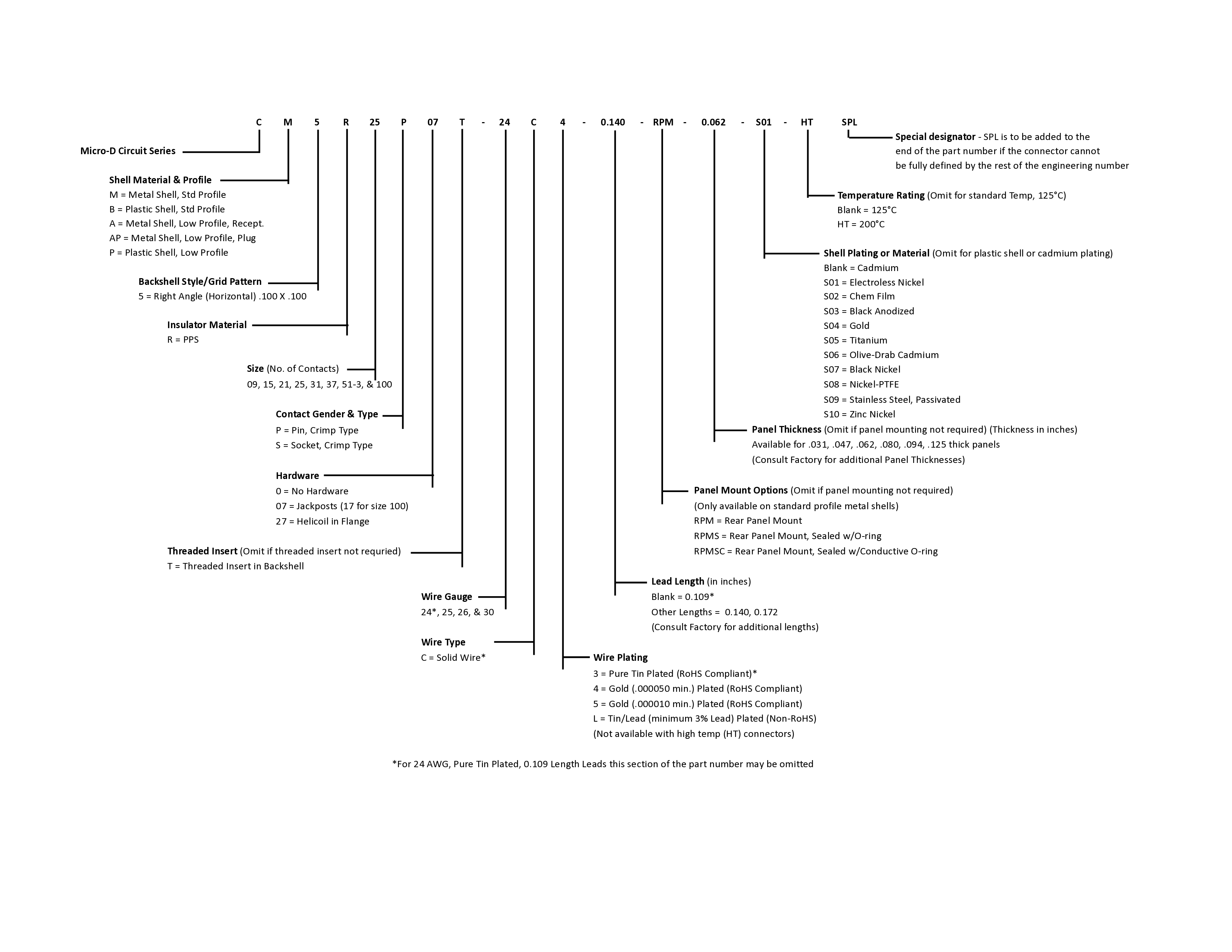

| 2D DIMENSIONAL DATA - MICRO CIRCUIT STYLE 5 | |||||||
|---|---|---|---|---|---|---|---|
| Size | A Max. | B +/- .007 | C +/- .005 | D Ref. | E Max. / M & B | E Max. / A & P | F Max. |
| 9 | 1.390 (35.31) | 1.150 (29.21) | .565 (14.35) | .400 (10.16) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 15 | 1.540 (39.12) | 1.300 (33.02) | .715 (18.16) | .700 (17.78) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 21 | 1.690 (42.93) | 1.450 (36.83) | .865 (21.97) | 1.000 (25.40) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 25 | 1.790 (45.47) | 1.550 (39.37) | .965 (24.51) | 1.200 (30.48) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 31 | 2.040 (51.82) | 1.800 (45.72) | 1.115 (28.32) | 1.500 (38.10) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 37 | 2.340 (59.44) | 2.100 (53.34) | 1.265 (32.13) | 1.800 (45.72) | .308 (7.82) | .218 (5.54) | .455 (11.56) |
| 51-3 | 1.875 (47.63) | 1.600 (40.64) | 1.215 (30.86) | 1.700 (43.18) | .351 (8.92) | .260 (6.60) | .565 (14.35) |
| 100 | 2.780 (70.61) | 2.500 (63.50) | 1.800 (45.72) | 2.500 (63.50) | .420(10.67) | N/A | .665 (16.89) |
| Micro Circuit Right Angle Style 5 | ||||||
|---|---|---|---|---|---|---|
| Size | Gender | Ordering# | Eng# | 2D | 3D | PCB |
| 9 | Male | 836111517 | CM5R09P07-S01 | 2D | 3D | PCB |
| Female | 836211517 | CM5R09S07-S01 | 2D | 3D | PCB | |
| 15 | Male | 836121517 | CM5R15P07-S01 | 2D | 3D | PCB |
| Female | 836221517 | CM5R15S07-S01 | 2D | 3D | PCB | |
| 21 | Male | 836131517 | CM5R21P07-S01 | 2D | 3D | PCB |
| Female | 836231517 | CM5R21S07-S01 | 2D | 3D | PCB | |
| 25 | Male | 836141517 | CM5R25P07-S01 | 2D | 3D | PCB |
| Female | 836241517 | CM5R25S07-S01 | 2D | 3D | PCB | |
| 31 | Male | 836151517 | CM5R31P07-S01 | 2D | 3D | PCB |
| Female | 836251517 | CM5R31S07-S01 | 2D | 3D | PCB | |
| 37 | Male | 836161517 | CM5R37P07-S01 | 2D | 3D | PCB |
| Female | 836261517 | CM5R37S07-S01 | 2D | 3D | PCB | |
| 51-3 | Male | 836171517 | CM5R51-3P07-S01 | 2D | 3D | PCB |
| Female | 836271517 | CM5R51-3S07-S01 | 2D | 3D | PCB | |
| 100 | Male | 836181517 | CM5R100P07-S01 | 2D | 3D | PCB |
| Female | 836281517 | CM5R100S07-S01 | 2D | 3D | PCB | |
Part Number: 836170517
Engineering Part Number: CM5R51-3P7
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170518
Engineering Part Number: CM5R51-3P07T
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170519
Engineering Part Number: CM5R51-3P0T
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836170520
Engineering Part Number: CM5R51-3P0-.140
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.14, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836171517
Engineering Part Number: CM5R51-3P07-S01
Termination: PCB, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836210518
Engineering Part Number: CM5R09S07T
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Threaded Insert: Yes, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836221517
Engineering Part Number: CM5R15S07-S01
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836240517
Engineering Part Number: CM5R25S07
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 25, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836250510
Engineering Part Number: CM5R31S0
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 31, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 836251517
Engineering Part Number: CM5R31S07-S01
Termination: PCB, Profile: Standard, Contact Gender: Socket, Number of signal contacts: 31, Hardware: Jack Post, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 x .100 (style 5), Orientation: Right Angle, Lead Finish: Tin, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
