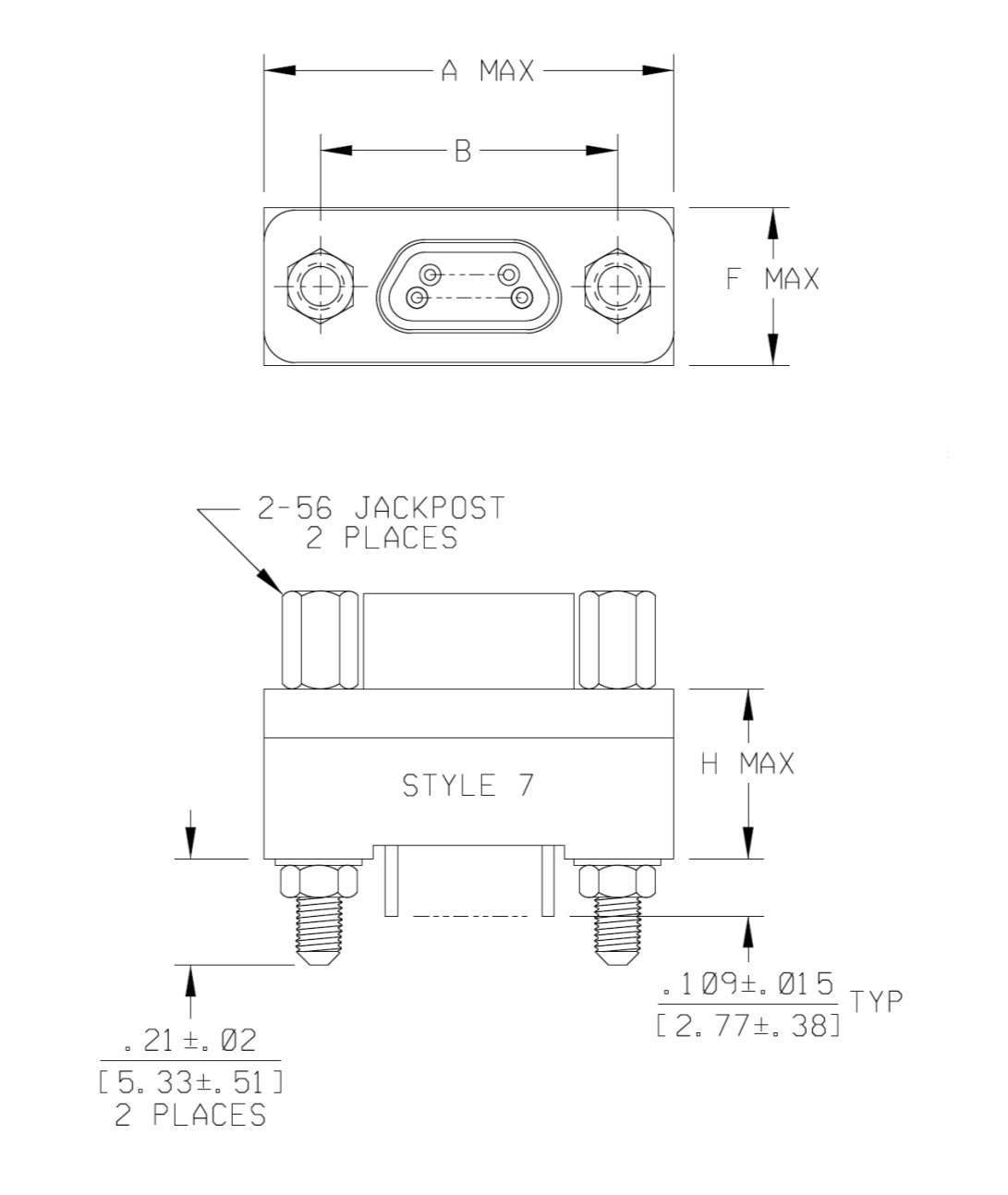

Vertical .075 X .075 (Styles 7) Connector

Aptiv Interconnect Micro offers Vertical Angle .075 X .075 (Style 7) Connectors. Style 7 is a condensed footprint vertical connector designed to fit circuit board applications, providing a compact and efficient interconnect solution. This connector utilizes the same condensed footprint as Style 17 and is recommended as a drop-in replacement for the MR75 series industry standard. Spacing between rows and between contacts in any one row is 0.075 on the 9 through 100 layouts.

Request Quote
Download Datasheet
Vertical .075 X .075 (Styles 7) Connector product image

Features and Benefits

  • Condensed Footprint Design: Optimized for circuit board applications.
  • Vertical Mount Configuration: Ideal for compact PCB layouts.
  • MR75 Series Compatible: Drop-in replacement for the industry standard.
  • Uniform Spacing: 0.075 between rows and contacts on 9–100 layouts.
  • Space-Saving Solution: Compact form factor for high-density designs.
  • Reliable Performance: Ensures consistent connectivity in demanding environments.

Specifications, Parts, and Filters

View All

Contact Resistance
8 millihom max contact only + any solid lead resistance (depends on wire AWG) @ 2.5A
Current Rating
3A max.
Dielectric WithStanding Voltage
600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max.
Insulation Resistance
500 VDC and 5000 Megohms min.

Engaging Force
6 oz max. (Signal contacts only, no data for Power or Coax contacts)
Separation Force
.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)
Mating/Unmating Force
10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition E, 1 microsecond max discontinuity
Durability
500 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours

Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C21000 Brass Alloy per ASTM B36
Contact Plating
.000050 Thk Gold Plating per ASTM B488
PC Tails
Copper Wire per A-A-59551 Type S
PC Tail Plating
.000320 min thk Tin plating per ASTM B545, or .000300 min thk Tin/Lead with minimum 3% lead plating per SAE-AMS-P-81728, or .000010 thk Gold plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel
Shell Plating
Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416
Insulator Material
Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F
Hardware
Passivated Stainless Steel Per MIL-DTL-83513/05
Interfacial Seals
Fluorosilicone per MIL-R-25988 (Std Profile Receptacles only)
