Vertical .075 X .100 (Style 16) Connector

Aptiv Interconnect Micro offers Vertical Angle .100 X .075 (Style 16) Connectors. Style 16 is a condensed footprint vertical connector specifically designed for flex circuit applications where the use of a jackscrew is necessary. Sharing the same condensed footprint as Style 6, Style 16 is recommended for new designs over the older Style 4 (BS). The termination footprints are contained within the connector body envelope, providing optimal space savings. Spacing between rows is 0.075 on all layouts, and spacing between contacts in any one row is 0.100 on the 9–37 layouts and 0.075 on the 51 and 100 layouts.

Request Quote

Download Datasheet

Vertical .075 X .100 (Style 16) Connector product image

Condensed Vertical Design: Optimized for flex circuit applications requiring a jackscrew.
Space-Saving Footprint: Terminations fully contained within the connector body.
Modern Replacement: Recommended for new designs over Style 4 (BS).
Uniform Spacing: 0.075 between rows; 0.100 (9–37) and 0.075 (51–100) between contacts.
Compact Configuration: Ideal for high-density and flex circuit applications.
Enhanced Mounting: Supports jackscrew use for secure mechanical connection.

View All

Contact Resistance

8 millihom max contact only + any solid lead resistance (depends on wire AWG) @ 2.5A

Current Rating

3A max.

Dielectric WithStanding Voltage

600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max.

Insulation Resistance

500 VDC and 5000 Megohms min.

Engaging Force

6 oz max. (Signal contacts only, no data for Power or Coax contacts)

Separation Force

.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)

Mating/Unmating Force

10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)

Vibration

EIA-364-28 Condition IV, 1 microsecond max discontinuity

Shock

EIA-364-27 Condition E, 1 microsecond max discontinuity

Durability

500 matings, passes Mating Force, CR, Eng and Sep Forces

Salt Spray

EIA 364-26 Condition B-48 hours

Signal Pin Contacts

C17200 Beryllium Copper per ASTM B194

Signal Socket Contacts

C21000 Brass Alloy per ASTM B36

Contact Plating

.000050 Thk Gold Plating per ASTM B488

PC Tails

Copper Wire per A-A-59551 Type S

PC Tail Plating

.000320 min thk Tin plating per ASTM B545, or .000300 min thk Tin/Lead with minimum 3% lead plating per SAE-AMS-P-81728, or .000010 thk Gold plating per ASTM B488

Shell

6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel

Shell Plating

Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416

Insulator Material

Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F

Hardware

Passivated Stainless Steel Per MIL-DTL-83513/05

Interfacial Seals

Fluorosilicone per MIL-R-25988 (Std Profile Receptacles only)

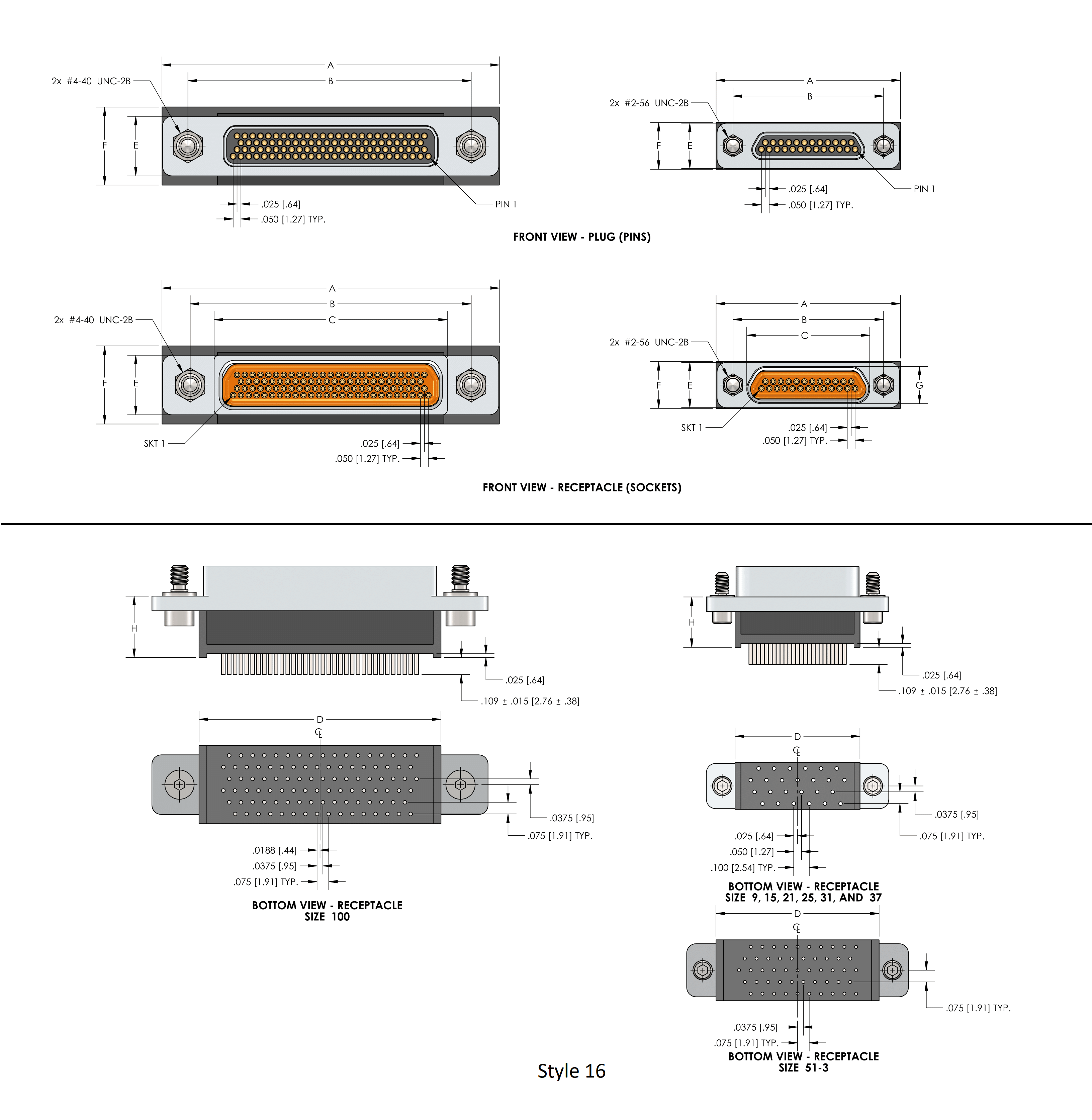

2D DIMENSIONAL DATA - MICRO CIRCUIT STYLE 6 &16
Size	A Max.	B Nom.	C Max.	E Max.	F Max.	H Max.
9	.785 (19.94)	.565 (14.35)	.400 (10.16)	.308 (7.82)	.310 (7.87)	.330 (8.38)
15	.935 (23.75)	.715 (18.16)	.550 (13.97)	.308 (7.82)	.310 (7.87)	.330 (8.38)
21	1.085 (27.56)	.865 (21.97)	.700 (17.78)	.308 (7.82)	.310 (7.87)	.330 (8.38)
25	1.185 (30.10)	.965 (24.51)	.800 (20.32)	.308 (7.82)	.310 (7.87)	.330 (8.38)
31	1.335 (33.91)	1.115 (28.32)	.950 (24.13)	.308 (7.82)	.310 (7.87)	.330 (8.38)
37	1.485 (37.72)	1.265 (32.13)	1.100 (27.94)	.308 (7.82)	.310 (7.87)	.330 (8.38)
51-3	1.435 (36.45)	1.215 (30.86)	1.045 (26.54)	.308 (7.82)	.400 (10.16)	.345 (8.76)
100	2.165 (54.99)	1.800 (45.72)	1.550 (39.37)	.394 (10.01)	.510 (12.95)	.400 (10.16)

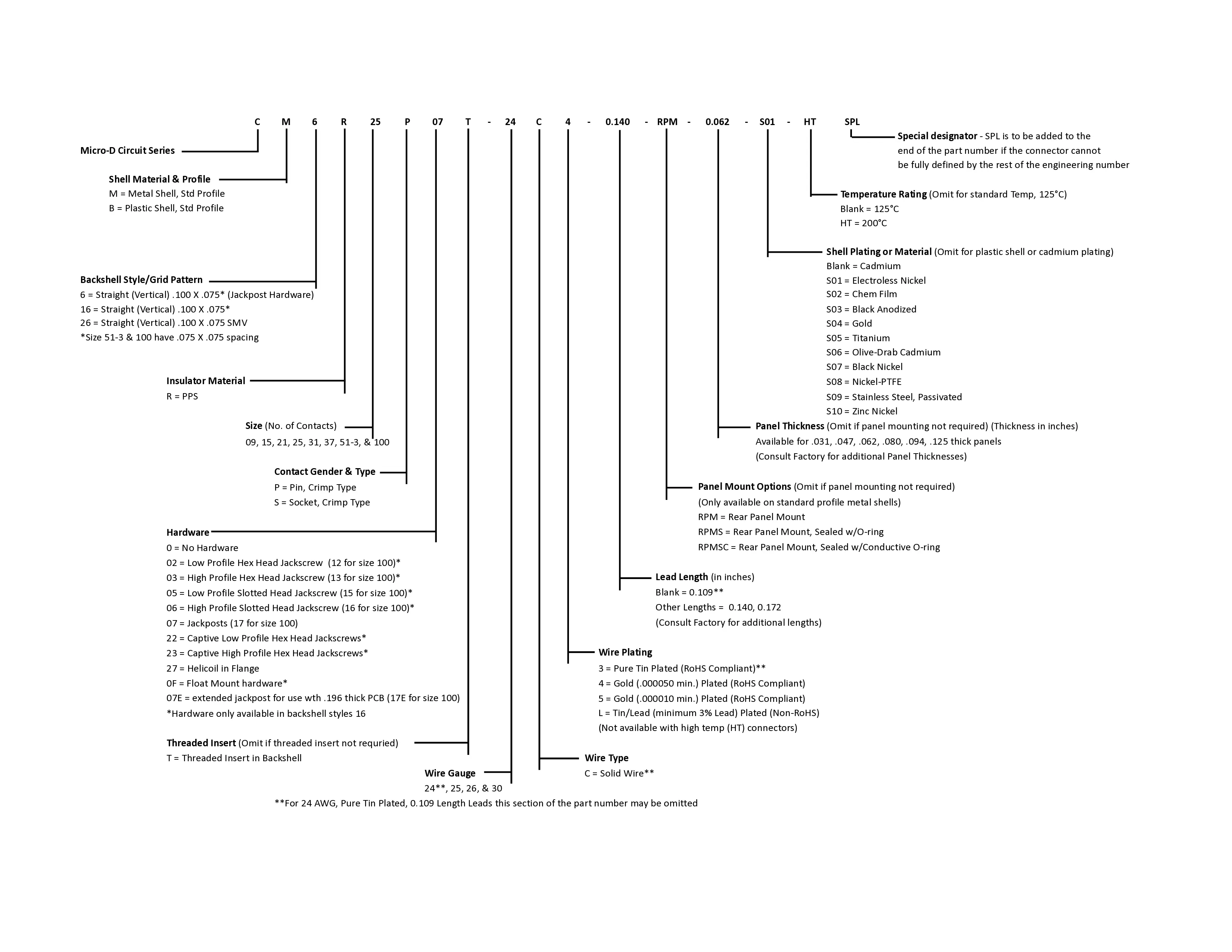

Micro Circuit Right Angle Styles 6, 16
Size	Style	Gender	Eng#	Ordering#	2D	3D	PCB
9
	6	Male	CM6R09P07-S01	836111617	2D	3D	PCB
	6	Female	CM6R09S07-S01	836211617	2D	3D	PCB
	16	Male	CM16R09P02-S01	836111712	2D	3D
	16	Female	CM16R09S02-S01	836211712	2D	3D
15
	6	Male	CM6R15P07-S01	836121617	2D	3D	PCB
	6	Female	CM6R15S07-S01	836221617	2D	3D	PCB
	16	Male	CM16R15P02-S01	836121712	2D	3D
	16	Female	CM16R15S02-S01	836221712	2D	3D
21
	6	Male	CM6R21P07-S01	836131617	2D	3D	PCB
	6	Female	CM6R21S07-S01	836231617	2D	3D	PCB
	16	Male	CM16R21P02-S01	836131712	2D	3D
	16	Female	CM16R21S02-S01	836231712	2D	3D
25
	6	Male	CM6R25P07-S01	836141617	2D	3D	PCB
	6	Female	CM6R25S07-S01	836241617	2D	3D	PCB
	16	Male	CM16R25P02-S01	836141712	2D	3D
	16	Female	CM16R25S02-S01	836241712	2D	3D
31
	6	Male	CM6R31P07-S01	836151617	2D	3D	PCB
	6	Female	CM6R31S07-S01	836251617	2D	3D	PCB
	16	Male	CM16R31P02-S01	836151712	2D	3D
	16	Female	CM16R31S02-S01	836251712	2D	3D
37
	6	Male	CM6R37P07-S01	836161617	2D	3D	PCB
	6	Female	CM6R37S07-S01	836261617	2D	3D	PCB
	16	Male	CM16R37P02-S01	836161712	2D	3D
	16	Female	CM16R37S02-S01	836261712	2D	3D
51-3
	6	Male	CM6R51-3P07-S01	836171617	2D	3D	PCB
	6	Female	CM6R51-3S07-S01	836271617	2D	3D	PCB
	16	Male	CM16R51-3P02-S01	836171712	2D	3D
	16	Female	CM16R51-3S02-S01	836271712	2D	3D
100
	6	Male	CM6R100P07-S01	836181617	2D	3D	PCB
	6	Female	CM6R100S07-S01	836281617	2D	3D	PCB
	16	Male	CM16R100P02-S01	836181712	2D	3D
	16	Female	CM16R100S02-S01	836281712	2D	3D
