Product Overview
Low Profile Metal Shell Soldercup Connector
Aptiv Interconnect Micro offers Low Profile Metal Shell Soldercup Connectors, providing a high-quality, environmentally sealed solution for demanding applications. Designed to operate from −55°C to +125°C, with high-temperature versions available up to +200°C (HT), these MIL-DTL-83513 compliant rectangular connectors support 9–51 contacts accepting 24 AWG wire. They ensure reliable mechanical performance with an engaging force of 6 oz max, separation force of 0.5 oz min, and mating/unmating force of 10 oz × number of contacts.
Features and Benefits
- Low Profile Design: Compact metal shell ideal for space-constrained applications.
- Environmentally Sealed: Ensures reliable performance in harsh conditions.
- Wide Operating Temperature Range: −55°C to +125°C; HT versions up to +200°C.
- Flexible Contact Options: Available in 9–51 contact configurations for 24 AWG wire.
- MIL-DTL-83513 Compliant: Meets stringent military and industry standards.
- Consistent Mating Performance: 6 oz max engaging, 0.5 oz min separation, 10 oz × contacts mating force.
- Durable Metal Shell Construction: Provides superior shielding and mechanical strength.
- Reliable Electrical Connectivity: Built for consistent signal integrity in critical systems.
Specifications, Parts, and Filters
| 2D Dimensional Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | A Max. | B Max. | C Max. | D Nom. | E Max. | J Max.(Skt) | L Max.(Skt) | M Max.(Pin) | ||
| ALL | A & P SERIES | |||||||||
| 9 | .785(19.94) | .376(9.55) | .395(9.98) | .565(14.35) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 15 | .935(23.75) | .526(13.36) | .545(13.79) | .715(18.16) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 21 | 1.085(27.56) | .693(17.17) | .695(17.60) | .865(21.97) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 25 | 1.185(30.10) | .776(19.71) | .795(20.14) | .965(24.51) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 31 | 1.335(33.91) | .926(23.52) | .945(23.95) | 1.115(28.32) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 37 | 1.485(37.72) | 1.076(27.33) | 1.095(27.76) | 1.265(32.13) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 51-3 | 1.435(36.45) | 1.026(26.06) | 1.045(26.44) | 1.215(30.86) | .254(6.45) | .182(4.62) | .375(9.57) | .395(10.03) | ||

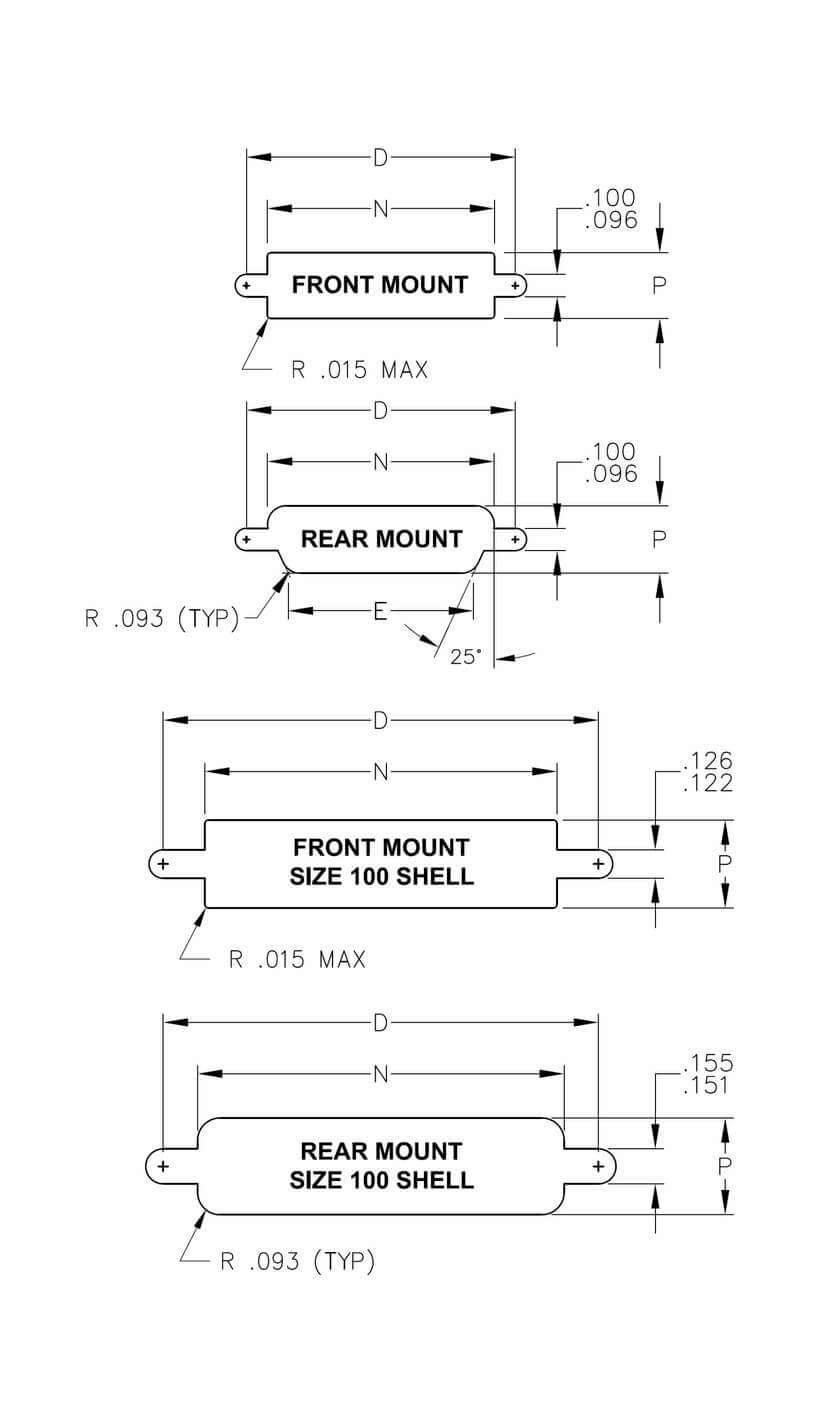

| Panel Cut-Out Dimensions | |||||
|---|---|---|---|---|---|
| N | P | ||||
| Size | D | Front Mount | Rear Mount | Front Mount | Rear Mount |
| 9 | .565 | .400 | .405 | .280 | .265 |
| 15 | .715 | .550 | .555 | .280 | .265 |
| 21 | .865 | .700 | .705 | .280 | .265 |
| 25 | .965 | .800 | .805 | .280 | .265 |
| 31 | 1.115 | .950 | .955 | .280 | .265 |
| 37 | 1.265 | 1.100 | 1.105 | .280 | .265 |
| 51-3 | 1.215 | 1.046 | 1.057 | .320 | .305 |

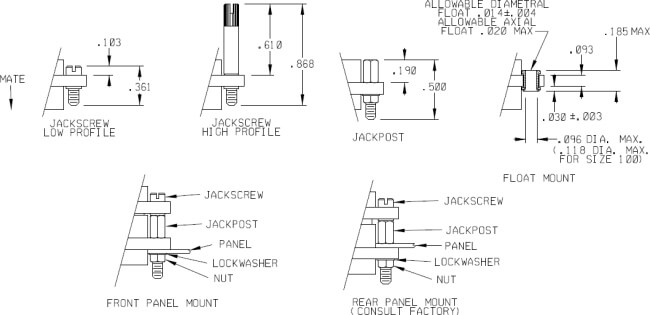

| Description | Thread | Used on Sizes | 3D Models | Used On Styles |
|---|---|---|---|---|
| Jackscrew Lo Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-02.stp | 16,17,18,19 |
| Jackscrew hi Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-03.stp | 16,17,18,19 |
| Jackscrew Lo Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-05.stp | 16,17,18,19 |
| Jackscrew hi Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-06.stp | 16,17,18,19 |
| Jackpost | 2-56 UNC-2B | 9 through 51 | M83513/05-07.stp | All Styles |

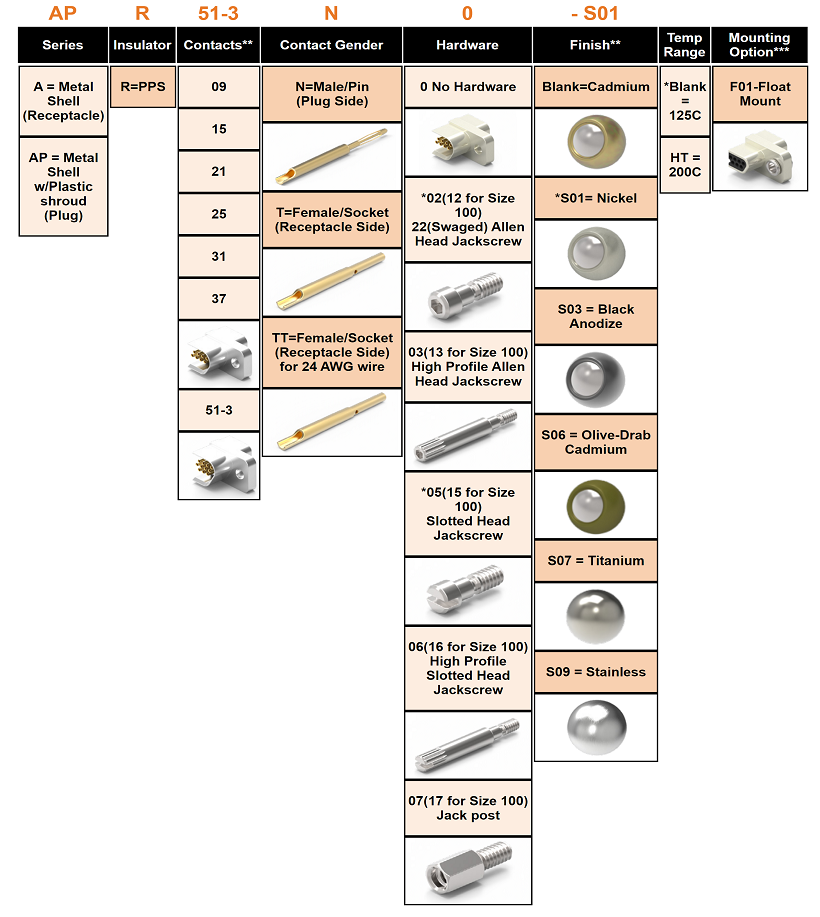

Part Number: 834410000
Engineering Part Number: AR09T0
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 9, Hardware: No Hardware, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834411000
Engineering Part Number: AR09T0-S01
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 9, Hardware: No Hardware, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834420000
Engineering Part Number: AR15T0
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 15, Hardware: No Hardware, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834421000
Engineering Part Number: AR15T0-S01
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 15, Hardware: No Hardware, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834440000
Engineering Part Number: AR25T0
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 25, Hardware: No Hardware, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834470000
Engineering Part Number: AR51-3T0
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 51, Hardware: No Hardware, Plating Type: Cadmium, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 834471000
Engineering Part Number: AR51-3T0-S01
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 51, Hardware: No Hardware, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
