Product Overview
Low Profile Plastic Shell Soldercup Connector
Aptiv Interconnect Micro offers Low Profile Plastic Shell Solder Cup Connectors designed for high performance and environmental sealing. These reliable connectors feature solder cup contacts within a durable plastic shell and operate from −55°C to +125°C, with high-temperature versions available up to +200°C (HT). Available in 9 to 51 contact configurations for 24 AWG wire, they use C17200 Beryllium Copper signal pins, C31400 Bronze Alloy sockets, and .000050 Thk Gold plating for superior conductivity.
Features and Benefits
- Low Profile Design: Compact plastic shell ideal for space-constrained applications.
- Environmentally Sealed: Ensures reliable performance in harsh environments.
- Wide Temperature Range: Operates from −55°C to +125°C; HT versions up to +200°C.
- Flexible Contact Options: Available with 9–51 contacts accepting 24 AWG wire.
- High-Quality Materials: C17200 Beryllium Copper pins and C31400 Bronze sockets.
- Gold-Plated Contacts: .000050 Thk Gold per ASTM B488 for superior conductivity.
- Durable Plastic Shell: Lightweight, robust design for versatile applications.
- Reliable Electrical Performance: Designed for precision and long-term dependability.
Specifications, Parts, and Filters
| 2D Dimensional Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | A Max. | B Max. | C Max. | D Nom. | E Max. | J Max.(Skt) | L Max.(Skt) | M Max.(Pin) | ||
| ALL | A & P SERIES | |||||||||
| 9 | .785(19.94) | .376(9.55) | .395(9.98) | .565(14.35) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 15 | .935(23.75) | .526(13.36) | .545(13.79) | .715(18.16) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 21 | 1.085(27.56) | .693(17.17) | .695(17.60) | .865(21.97) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 25 | 1.185(30.10) | .776(19.71) | .795(20.14) | .965(24.51) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 31 | 1.335(33.91) | .926(23.52) | .945(23.95) | 1.115(28.32) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 37 | 1.485(37.72) | 1.076(27.33) | 1.095(27.76) | 1.265(32.13) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 51-3 | 1.435(36.45) | 1.026(26.06) | 1.045(26.44) | 1.215(30.86) | .254(6.45) | .182(4.62) | .375(9.57) | .395(10.03) | ||

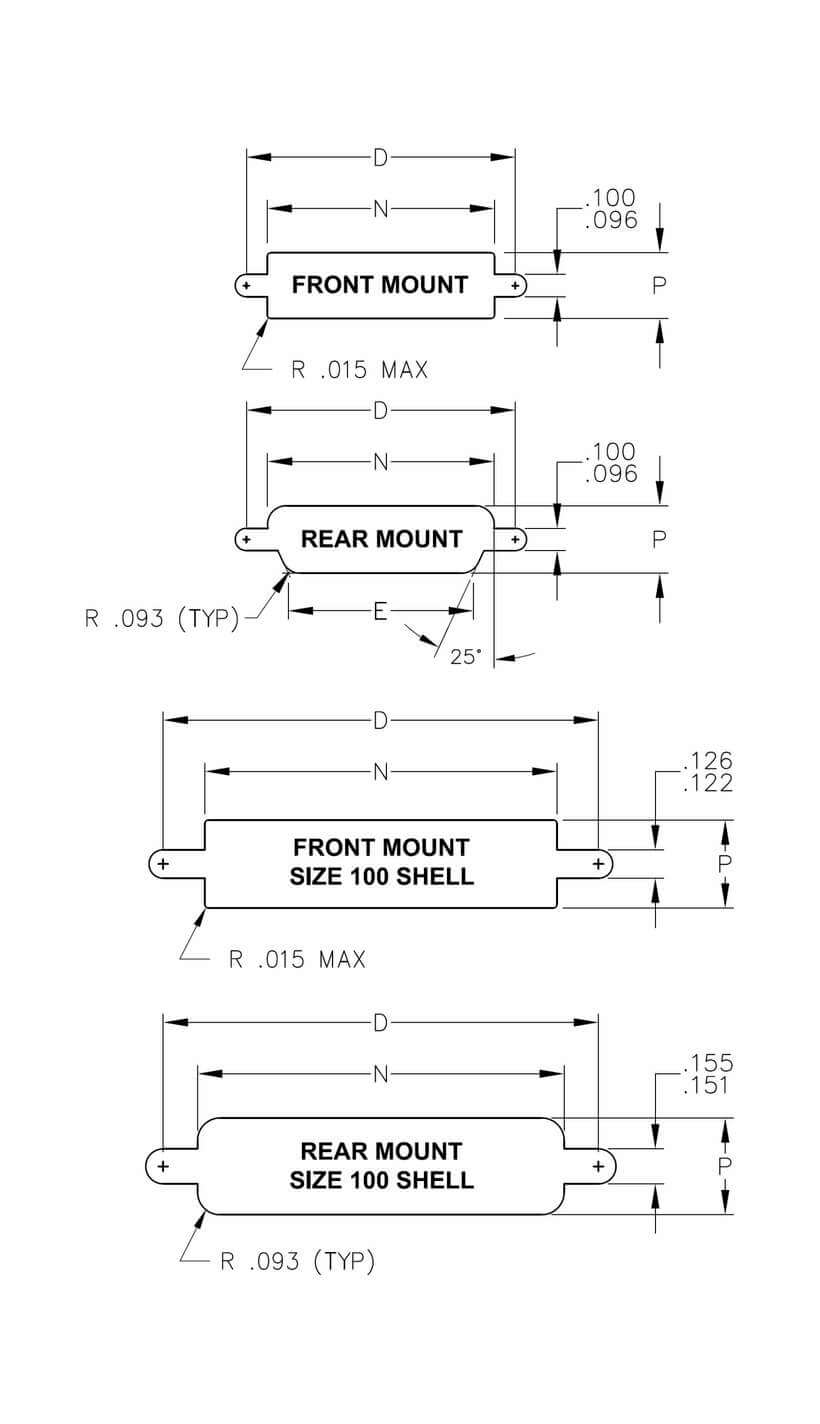

| Panel Cut-Out Dimensions | |||||
|---|---|---|---|---|---|
| N | P | ||||
| Size | D | Front Mount | Rear Mount | Front Mount | Rear Mount |
| 9 | .565 | .400 | .405 | .280 | .265 |
| 15 | .715 | .550 | .555 | .280 | .265 |
| 21 | .865 | .700 | .705 | .280 | .265 |
| 25 | .965 | .800 | .805 | .280 | .265 |
| 31 | 1.115 | .950 | .955 | .280 | .265 |
| 37 | 1.265 | 1.100 | 1.105 | .280 | .265 |
| 51-3 | 1.215 | 1.046 | 1.057 | .320 | .305 |

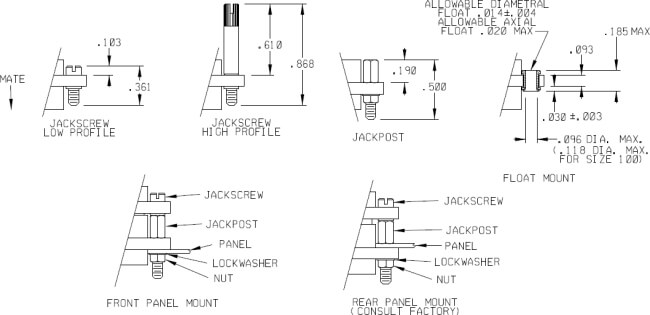

| Description | Thread | Used on Sizes | 3D Models | Used On Styles |
|---|---|---|---|---|
| Jackscrew Lo Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-02.stp | 16,17,18,19 |
| Jackscrew hi Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-03.stp | 16,17,18,19 |
| Jackscrew Lo Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-05.stp | 16,17,18,19 |
| Jackscrew hi Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-06.stp | 16,17,18,19 |
| Jackpost | 2-56 UNC-2B | 9 through 51 | M83513/05-07.stp | All Styles |

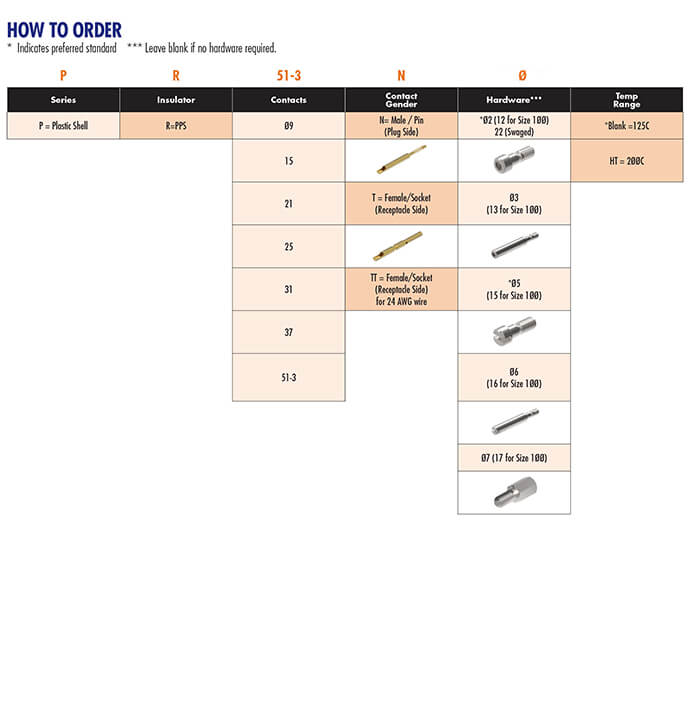

Part Number: 834238000
Engineering Part Number: PR21T0
Termination: Solder Cup, Profile: Low, Contact Gender: Socket, Number of signal contacts: 21, Hardware: No Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518000
Engineering Part Number: PR09N0
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: No Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518002
Engineering Part Number: PR09N02
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Allen Head Jackscrew, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518005
Engineering Part Number: PR09N05
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Slotted Head Jackscrew, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834528000
Engineering Part Number: PR15N0
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 15, Hardware: No Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834528002
Engineering Part Number: PR15N02
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Allen Head Jackscrew, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834528007
Engineering Part Number: PR15N07
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Jack Post, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834538000
Engineering Part Number: PR21N0
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 21, Hardware: No Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834548000
Engineering Part Number: PR25N0
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 25, Hardware: No Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834558001
Engineering Part Number: PR31N0-F01
Termination: Solder Cup, Profile: Low, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Float Hardware, Shell Material: Plastic, Max Temp: 125 C, QPL: No
