Standard Profile Metal Shell Soldercup Connector

Aptiv Interconnect Micro offers Standard Profile Metal Shell Connectors with Solder Cup Contacts, providing a reliable, environmentally sealed interconnect solution for demanding applications. Operating from −55°C to +125°C, with high temperature versions up to +200°C (HT), they accommodate 9–100 contacts for 24 AWG wire. Designed to meet MIL-DTL-83513 standards, these connectors deliver 3A max current, 600 VAC dielectric strength at sea level, and 5000 MΩ insulation resistance at 500 VDC.

Request Quote

Rugged Metal Shell: Ensures strength and environmental sealing for harsh conditions.
Wide Temperature Range: Operates from −55°C to +125°C; HT options up to +200°C.
Flexible Configurations: Supports 9–100 contacts for 24 AWG wire.
MIL-DTL-83513 Compliant: Meets strict military-grade performance standards.
Low Contact Resistance: 8 mΩ max (contact only); 32 mΩ max with 6" wire @ 2.5A.
High Current Capability: Rated 3A max at room temperature.
Excellent Dielectric Strength: 600 VAC at sea level, 150 VAC at 70,000 ft.
Superior Insulation: 500 VDC, 5000 MΩ minimum at room temperature.
Reliable Performance: Precision-built for demanding cable connector applications.

View All

Contact Resistance

8 milliohm max contact only and 32 millohms max with 6" wire @ 2.5A at room temperature

Current Rating

3A max. at room temperature

Dielectric WithStanding Voltage

600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max. at room temperature

Insulation Resistance

500 VDC and 5000 Megohms min. at room temperature

Engaging Force

6 oz max. at room temperature

Separation Force

.5 oz min. at room temperature

Mating/Unmating Force

10 oz x # of contacts max.at room temperature

Vibration

EIA-364-28 Condition IV, 1 microsecond max discontinuity at room temperature

Shock

EIA-364-27 Condition E, 1 microsecond max discontinuity at room temperature

Durability

500 matings, passes Mating Force, CR, Eng and Sep Forces at room temperature

Salt Spray

EIA 364-26 Condition B-48 hours at room temperature

Signal Pin Contacts

C17200 Beryllium Copper per ASTM B194

Signal Socket Contacts

C31400 Bronze Alloy per ASTM B140

Contact Plating

.000050 Thk Gold Plating per ASTM B488

Shell

6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or Passivated 300 Series Stainless Steel

Shell Plating

Electroless Nickel per AMS 2404 or Cadmium Plated per SAE-AMS-QQ-P-416

Insulator Material

Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F

Hardware

Passivated Stainless Steel Per MIL-DTL-83513/05

Interfacial Seals

Fluorosilicone per MIL-R-25988 Std Profile Receptacles only)

2D Dimensional Data
Size	A Max.	B Max.	C Max.	D Nom.	H Max.	E Max.	J Max.(Skt)	K Max. (Pin)	L Max.(Skt)	M Max.(Pin)
	ALL	M &B series
9	.785(19.94)	.402(10.21)	.390(9.98)	.565(14.35)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
15	.935(23.75)	.552(14.02)	.540(13.79)	.715(18.16)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
21	1.085(27.56)	.702(17.83)	.690(17.60)	.865(21.47)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
25	1.185(30.10)	.802(20.37)	.790(20.14)	.965(24.51)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
31	1.335(33.91)	.952(24.18)	.940(23.95)	1.115(28.32)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
37	1.485(37.72)	1.102(27.99)	1.090(27.76)	1.265(32.13)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
51	1.435(36.45)	1.054(26.77)	1.040(26.44)	1.215(30.86)	.297(7.54)	.351(8.92)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
100	2.165(54.99)	1.505(38.23)	1.432(36.63)	1.800(45.72)	.394(10.00)	.394(10.00)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)

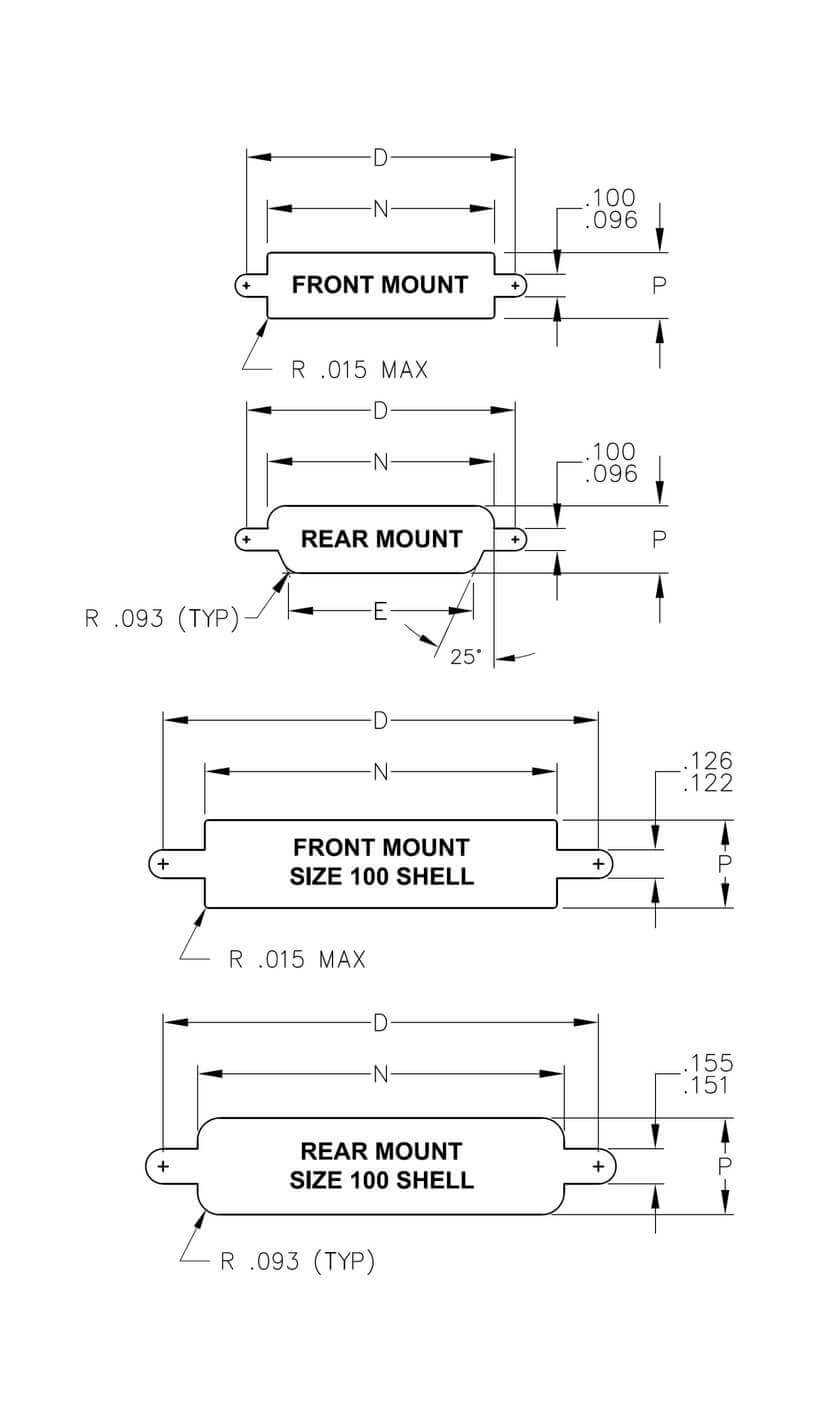

Panel Cut-Out Dimensions
		N		P
Size	D	Front Mount	Rear Mount	Front Mount	Rear Mount
9	.565	.400	.405	.280	.265
15	.715	.550	.555	.280	.265
21	.865	.700	.705	.280	.265
25	.965	.800	.805	.280	.265
31	1.115	.950	.955	.280	.265
37	1.265	1.100	1.105	.280	.265
51-3	1.215	1.046	1.057	.320	.305
100	1.800	1.445	1.506	.402	.402

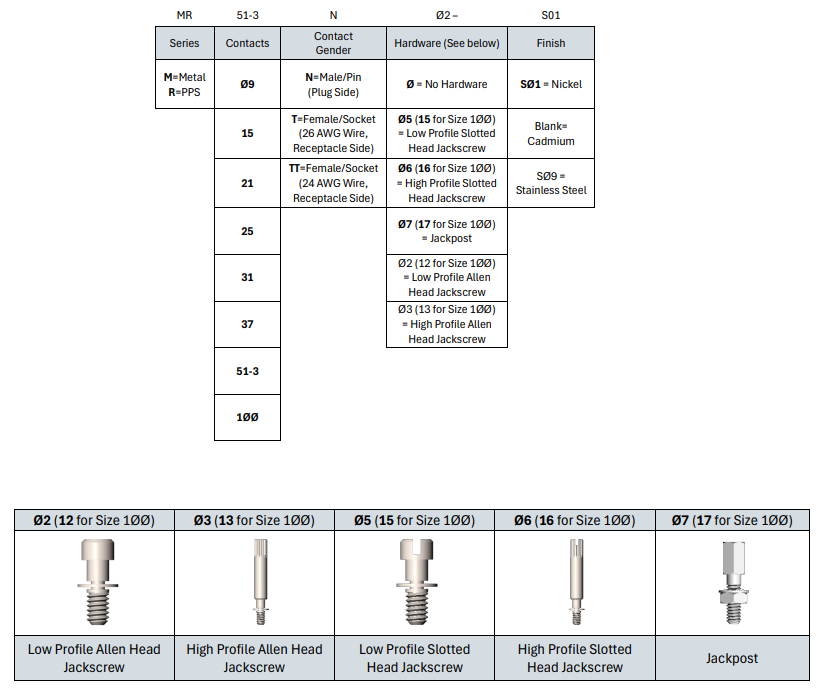

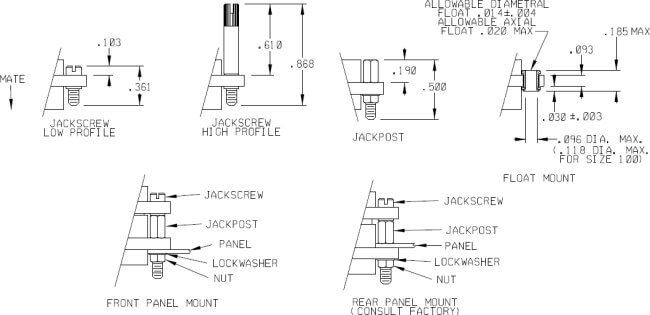

Description	Thread	Used on Sizes	3D Models	Used On Styles
Jackscrew Lo Allen	2-56 UNC-2A	9 through 51	M83513/05-02.stp	16,17,18,19
Jackscrew hi Allen	2-56 UNC-2A	9 through 51	M83513/05-03.stp	16,17,18,19
Jackscrew Lo Slot	2-56 UNC-2A	9 through 51	M83513/05-05.stp	16,17,18,19
Jackscrew hi Slot	2-56 UNC-2A	9 through 51	M83513/05-06.stp	16,17,18,19
Jackpost	2-56 UNC-2B	9 through 51	M83513/05-07.stp	All Styles
Jackscrew Lo Allen	4-40 UNC-2A	100	M83513/05-12.stp	16,17,18,19
Jackscrew hi Allen	4-40 UNC-2A	100	M83513/05-13.stp	16,17,18,19
Jackscrew Lo Slot	4-40 UNC-2A	100	M83513/05-15.stp	16,17,18,19
Jackscrew hi Slot	4-40 UNC-2A	100	M83513/05-16.stp	16,17,18,19
Jackpost	4-40 UNC-2B	100	M83513/05-17.stp	All Styles

S.No	Name	Datasheet Link
1	Standard Profile Metal Shell Soldercup Connector Datasheet	Link
2	Tin/Lead Plated Micro-D Soldercup Connectors Datasheet	Link
