Standard Profile Plastic Shell Soldercup Connector

Aptiv Interconnect Micro offers Standard Profile Plastic Shell Soldercup Connectors, designed for reliable performance in demanding environments. These environmentally sealed connectors operate from −55°C to +125°C, with high temperature versions available up to +200°C (HT). Available in 9–100 contact configurations accepting 24 AWG wire, they ensure versatile connectivity. With 3A max current rating, low contact resistance, and high dielectric and insulation performance, these connectors deliver durability and precision across critical applications.

Request Quote

Standard Profile Design: Compact, proven geometry for versatile integration.
Environmentally Sealed: Protects against moisture and harsh conditions.
Wide Operating Temperature: −55°C to +125°C; HT versions up to +200°C.
Flexible Contact Options: 9–100 contacts accepting 24 AWG wire.
Low Contact Resistance: 8 mΩ max (contact only), 32 mΩ with 6" wire @ 2.5A.
High Current Rating: Supports up to 3A max at room temperature.
Dielectric Strength: Withstands 600 VAC at sea level, 150 VAC at 70,000 ft.
Excellent Insulation Resistance: 5000 MΩ min @ 500 VDC.
Reliable Construction: Ensures stable electrical performance and long service life.

View All

Contact Resistance

8 milliohm max contact only and 32 millohms max with 6" wire @ 2.5A at room temperature

Current Rating

3A max. at room temperature

Dielectric WithStanding Voltage

600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max. at room temperature

Insulation Resistance

500 VDC and 5000 Megohms min. at room temperature

Engaging Force

6 oz max.

Separation Force

.5 oz min.

Mating/Unmating Force

10 oz x # of contacts max.

Vibration

EIA-364-28 Condition IV, 1 microsecond max discontinuity

Shock

EIA-364-27 Condition E, 1 microsecond max discontinuity at room temperature

Durability

500 matings, passes Mating Force, CR, Eng and Sep Forces at room temperature

Signal Pin Contacts

C17200 Beryllium Copper per ASTM B194

Signal Socket Contacts

C31400 Bronze Alloy per ASTM B140

Contact Plating

.000050 Thk Gold Plating per ASTM B488

Shell

Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F

Insulator Material

Polyphenylene Sulfide (PPS) Per MIL-M-24519 GST-40F

Hardware

Passivated Stainless Steel Per MIL-DTL-83513/05

2D Dimensional Data
Size	A Max.	B Max.	C Max.	D Nom.	H Max.	E Max.	J Max.(Skt)	K Max. (Pin)	L Max.(Skt)	M Max.(Pin)
	ALL	M &B series
9	.785(19.94)	.402(10.21)	.390(9.98)	.565(14.35)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
15	.935(23.75)	.552(14.02)	.540(13.79)	.715(18.16)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
21	1.085(27.56)	.702(17.83)	.690(17.60)	.865(21.47)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
25	1.185(30.10)	.802(20.37)	.790(20.14)	.965(24.51)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
31	1.335(33.91)	.952(24.18)	.940(23.95)	1.115(28.32)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
37	1.485(37.72)	1.102(27.99)	1.090(27.76)	1.265(32.13)	.248(6.30)	.308(7.83)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
51	1.435(36.45)	1.054(26.77)	1.040(26.44)	1.215(30.86)	.297(7.54)	.351(8.92)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)
100	2.165(54.99)	1.505(38.23)	1.432(36.63)	1.800(45.72)	.394(10.00)	.394(10.00)	.199(5.05)	.187(4.75)	.429(10.90)	.416(10.57)

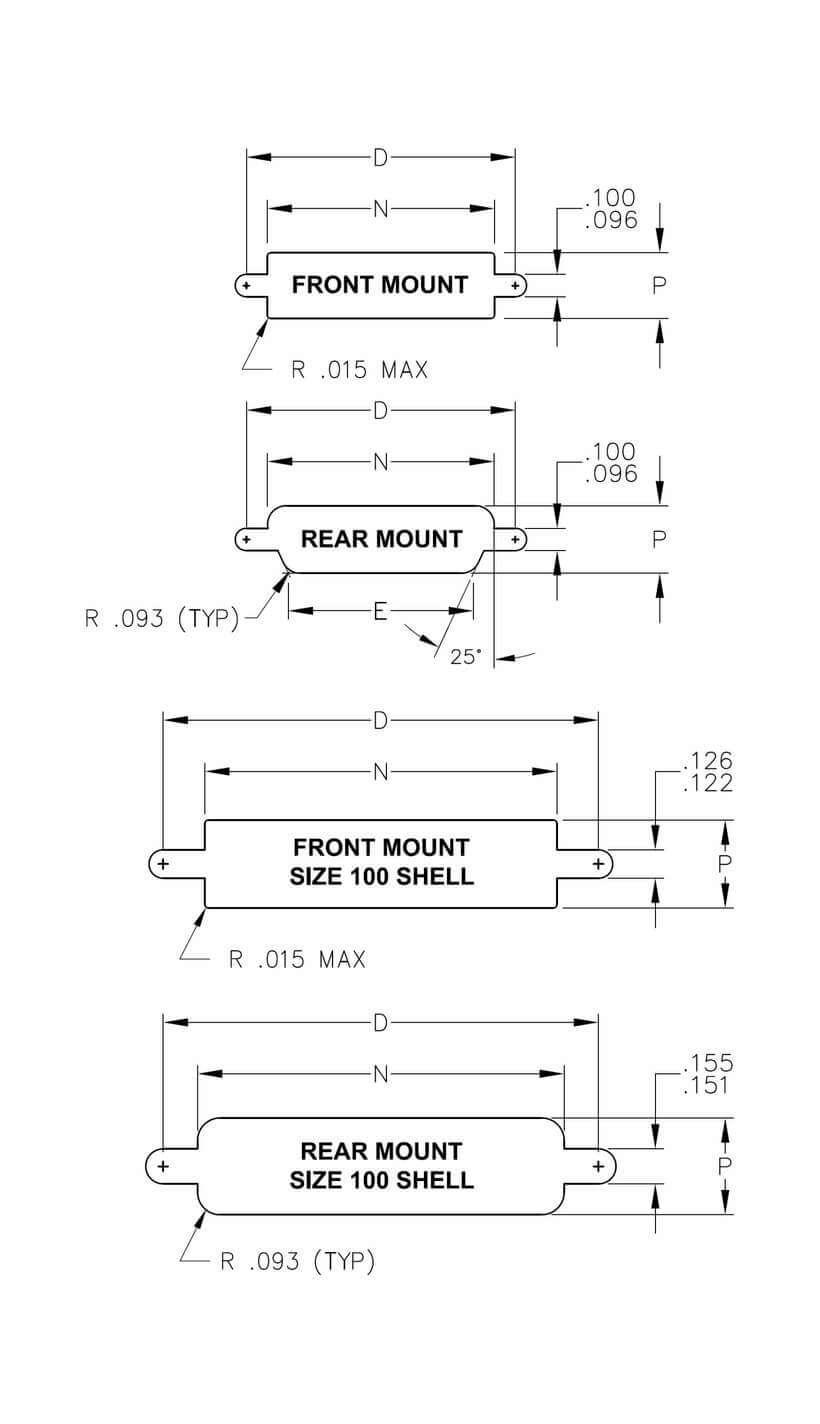

Panel Cut-Out Dimensions
		N		P
Size	D	Front Mount	Rear Mount	Front Mount	Rear Mount
9	.565	.400	.405	.280	.265
15	.715	.550	.555	.280	.265
21	.865	.700	.705	.280	.265
25	.965	.800	.805	.280	.265
31	1.115	.950	.955	.280	.265
37	1.265	1.100	1.105	.280	.265
51-3	1.215	1.046	1.057	.320	.305
100	1.800	1.445	1.506	.402	.402

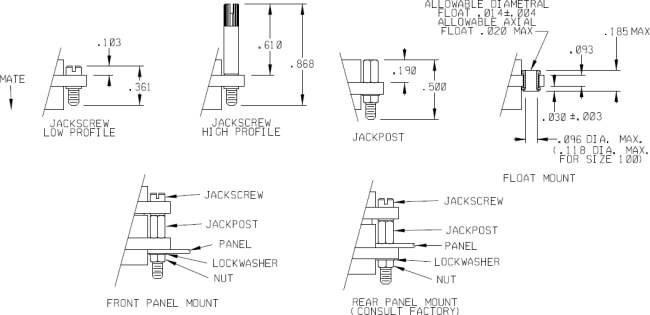

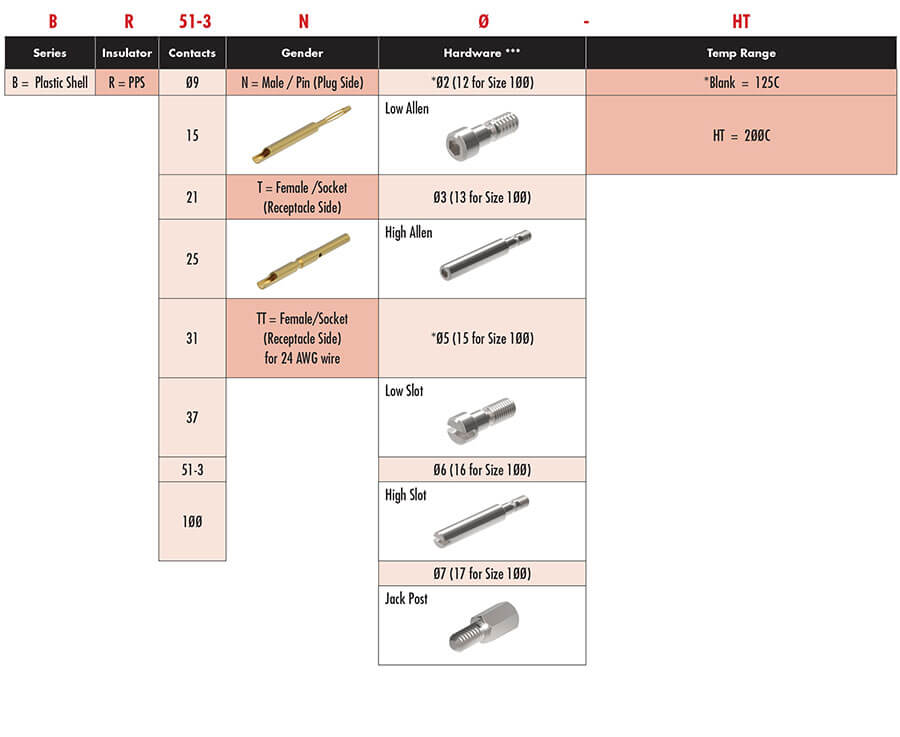

Description	Thread	Used on Sizes	3D Models	Used On Styles
Jackscrew Lo Allen	2-56 UNC-2A	9 through 51	M83513/05-02.stp	16,17,18,19
Jackscrew hi Allen	2-56 UNC-2A	9 through 51	M83513/05-03.stp	16,17,18,19
Jackscrew Lo Slot	2-56 UNC-2A	9 through 51	M83513/05-05.stp	16,17,18,19
Jackscrew hi Slot	2-56 UNC-2A	9 through 51	M83513/05-06.stp	16,17,18,19
Jackpost	2-56 UNC-2B	9 through 51	M83513/05-07.stp	All Styles
Jackscrew Lo Allen	4-40 UNC-2A	100	M83513/05-12.stp	16,17,18,19
Jackscrew hi Allen	4-40 UNC-2A	100	M83513/05-13.stp	16,17,18,19
Jackscrew Lo Slot	4-40 UNC-2A	100	M83513/05-15.stp	16,17,18,19
Jackscrew hi Slot	4-40 UNC-2A	100	M83513/05-16.stp	16,17,18,19
Jackpost	4-40 UNC-2B	100	M83513/05-17.stp	All Styles

S.No	Name	Datasheet Link
1	Standard Profile Plastic Shell Soldercup Connector	Link
2	Tin/Lead Plated Micro-D Soldercup Connectors Datasheet	Link
