Product Overview
Printed Circuit Board
Aptiv Interconnect Micro offers Micro Strip Printed Circuit Board Connectors designed for secure and reliable board-level connections. Built to withstand mechanical stress and harsh conditions, these connectors deliver consistent electrical performance with stable mating and unmating characteristics. Ideal for demanding environments requiring long-term reliability and durability.
Features and Benefits
- Reliable Connection Performance: Engaging force of 6 oz max and separation force of 0.5 oz min (signal contacts only).
- Stable Mating/Unmating: Designed with 10 oz × number of contacts max (signal contacts only) for smooth, repeatable engagement.
- Rugged and Durable: Tested to endure 500 mating cycles while maintaining consistent contact resistance and mechanical integrity.
- Vibration Resistant: Qualified per EIA-364-28 Condition IV for dependable operation under dynamic conditions.
- Shock Tested: Meets EIA-364-27 Condition E standards to ensure durability under mechanical impact.
- Built for Harsh Environments: Engineered for applications requiring reliability and stability under vibration, shock, and frequent mating cycles.
Specifications, Parts, and Filters
Part Number: 437022050
Engineering Part Number: SR02S0-L02-HT

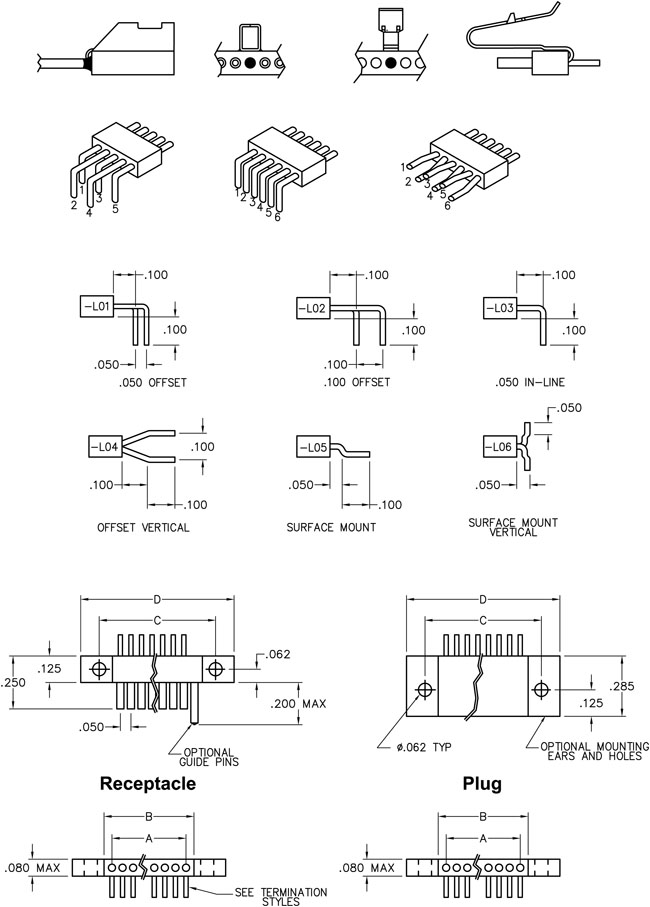

Termination: PCB, Contact Gender: Socket, Number of signal contacts: 2, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L02), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 200 C
Part Number: 437061900
Engineering Part Number: SR06P1-L05-HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 6, Hardware: One guide post (post on socket side), PCB Termination: SMT, Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 200 C
Part Number: 837041024
Engineering Part Number: SR04P4-L05
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: Mounting Holes on both ends, PCB Termination: SMT, Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837041051
Engineering Part Number: SR04P1-L02
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: One guide post (post on socket side), PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L02), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837041121
Engineering Part Number: SR04P1-L03
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: One guide post (post on socket side), PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 inline (style L03), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837041220
Engineering Part Number: SR04P0-L04
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: No Hardware, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L04), Orientation: Vertical, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837041223
Engineering Part Number: SR04P3-L04
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: Center Jackscrew (screw on socket side), PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L04), Orientation: Vertical, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837043904
Engineering Part Number: SR04P0-L03 W LATCH
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 4, Hardware: Latch, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 inline (style L03), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 837051051
Engineering Part Number: SR05P1-L02
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 5, Hardware: One guide post (post on socket side), PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L02), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 125 C
Part Number: 437062051
Engineering Part Number: SR06S1-L02-HT
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 6, Hardware: One guide post (post on socket side), PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .100 offset (style L02), Orientation: Right Angle, Lead Finish: None, PC Tail Length: 0.1, Shell Material: Plastic, Max Temp: 200 C
