Product Overview

Solder Cup Contacts

Aptiv Interconnect Micro offers Micro Strip Soldercup Contacts that provide a dependable and high-performance interconnect solution. Built with precision materials and engineered for durability, these connectors ensure stable electrical connections in demanding environments. Their robust construction and reliable contact integrity make them ideal for high-reliability applications.

Request Quote
Download Datasheet

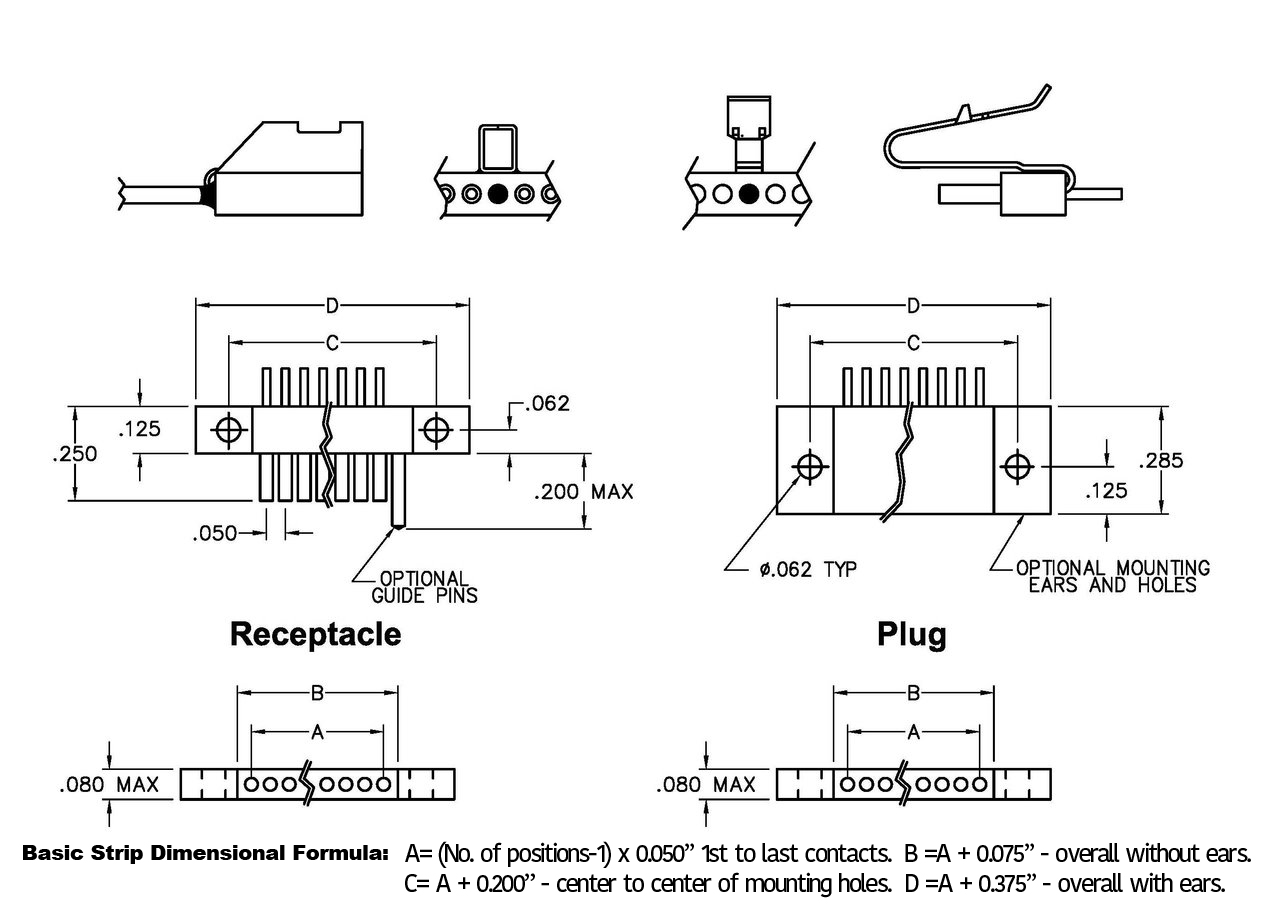

Solder Cup Contacts product image

Features and Benefits

  • Durable Contact Materials: Signal pin contacts made from C17200 Beryllium Copper and signal socket contacts from C31400 Bronze Alloy.
  • Superior Conductivity: Features .000050 Thick Gold Plating for enhanced corrosion resistance and low contact resistance.
  • Rugged Shell Design: Shell constructed from C36000 Brass Alloy with Electroless Nickel plating for strength and protection.
  • High-Quality Insulator: Made from Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F for excellent thermal and electrical stability.
  • Secure Locking Mechanism: Includes a C17300 Beryllium Copper locking ring and a C36000 Brass Alloy actuating ring for reliable retention.
  • Effective Sealing: Equipped with a 70 Durometer Nitrile (Buna-N) O-Ring for improved environmental sealing and performance.

Specifications, Parts, and Filters

View All

Contact Resistance
8 milliohm max contact only and 32 millohms max with 6" length @ 2.5A.
Current Rating
3A max
Dielectric WithStanding Voltage
600 VAC at sea level, 150 VAC at 70,000 feet. 1mA leakage current max
Insulation Resistance
500 VDC and 5000 Megohms min

Engaging Force
6 oz max. (Signal contacts only, no data for Power or Coax contacts)
Separation Force
.5 oz. min. (Signal contacts only, no data for Power or Coax contacts)
Mating/Unmating Force
10 oz x # of contacts max. (Signal contacts only, no data for Power or Coax contacts)
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition E, 1 microsecond max discontinuity
Durability
500 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours

Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C31400 Bronze Alloy per ASTM B140
Contact Plating
.000050 Thick Gold Plating per ASTM B488
Shell
C36000 Brass Alloy per ASTM B36
Shell Plating
Electroless Nickel per AMS 2404
Insulator Material
Polyphenylene Sulfide (PPS) per MIL-M-24519 GST-40F
Locking Ring
C17300 Beryllium Copper per ASTM B196 (plug side only)
Actuating Ring
C36000 Brass Alloy per ASTM B36 (plug side only)
O-Ring
70 Durometer Nitrile (Buna-N)
