Product Overview
Low Profile Plastic Shell Connectors
Aptiv Interconnect Micro offers Low Profile Plastic Shell Connectors—compact, high-quality solutions for demanding environments. These environmentally sealed connectors operate from −55°C to +125°C, with high-temperature versions available up to +200°C (HT). They provide reliable engagement with a 6 oz max engaging force, 0.5 oz min separation force, and 10 oz × # of contacts max mating/unmating force. Tested per EIA-364-28 for vibration and EIA-364-27 for shock, they ensure durability under extreme conditions.
Features and Benefits
- Compact, Lightweight Design: Ideal for space-limited applications.
- Sealed Construction: Protects against moisture and harsh environments.
- Wide Temperature Range: Operates from −55°C to +125°C; HT versions to +200°C.
- Reliable Mating Performance: 6 oz max engaging, 0.5 oz min separation force.
- Durable Mechanism: 10 oz × # of contacts max mating/unmating force.
- Tested for Reliability: Meets EIA-364-28 (vibration) and EIA-364-27 (shock) standards.
- High-Quality Construction: Engineered for consistent performance and longevity.
Specifications, Parts, and Filters
| 2D Dimensional Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | A Max. | B Max. | C Max. | D Nom. | E Max. | J Max.(Skt) | L Max.(Skt) | M Max.(Pin) | ||
| ALL | A & P SERIES | |||||||||
| 9 | .785(19.94) | .376(9.55) | .395(9.98) | .565(14.35) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 15 | .935(23.75) | .526(13.36) | .545(13.79) | .715(18.16) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 21 | 1.085(27.56) | .693(17.17) | .695(17.60) | .865(21.97) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 25 | 1.185(30.10) | .776(19.71) | .795(20.14) | .965(24.51) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 31 | 1.335(33.91) | .926(23.52) | .945(23.95) | 1.115(28.32) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 37 | 1.485(37.72) | 1.076(27.33) | 1.095(27.76) | 1.265(32.13) | .218(5.54) | .182(4.62) | .375(9.57) | .395(10.03) | ||
| 51-3 | 1.435(36.45) | 1.026(26.06) | 1.045(26.44) | 1.215(30.86) | .254(6.45) | .182(4.62) | .375(9.57) | .395(10.03) | ||

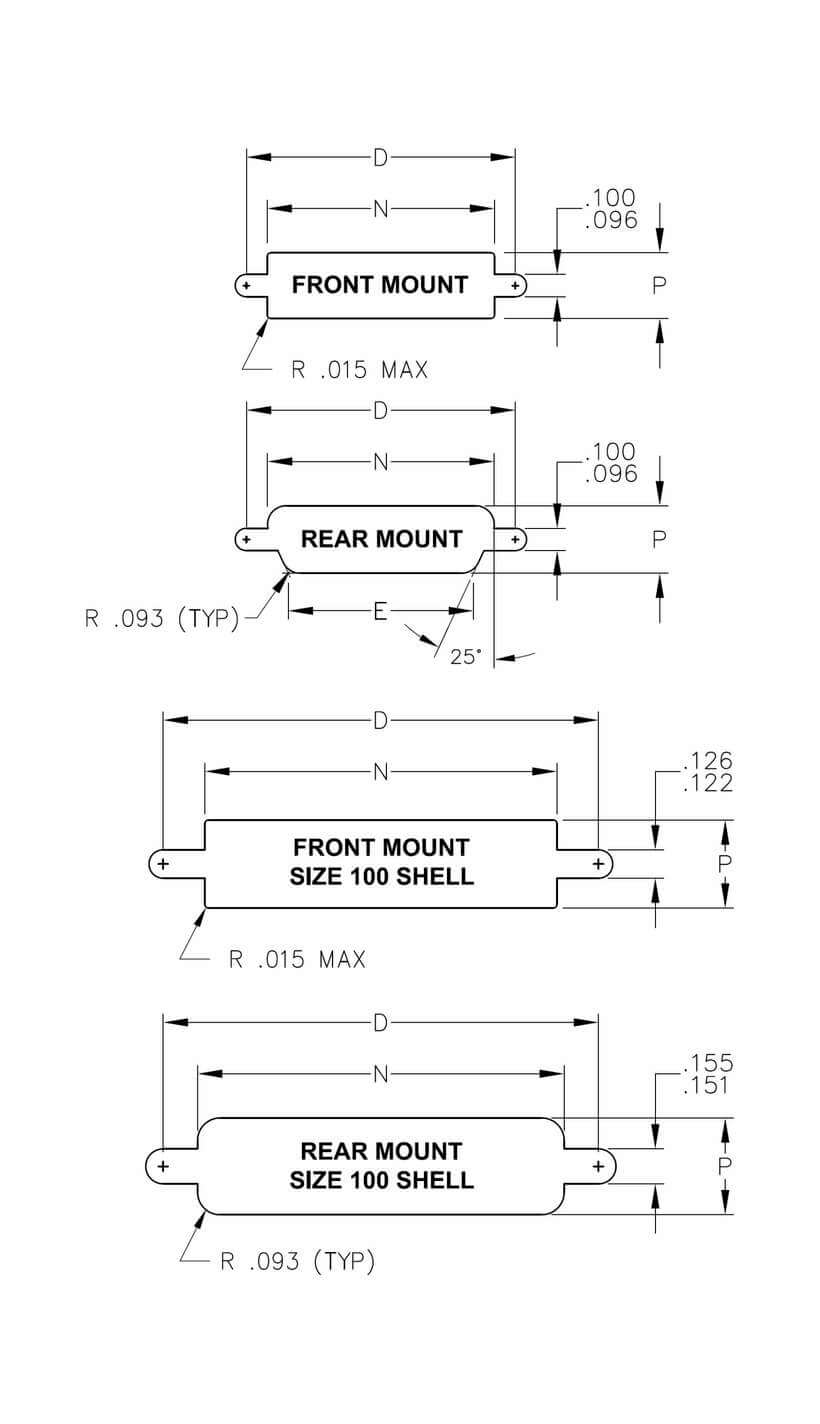

| Panel Cut-Out Dimensions | |||||
|---|---|---|---|---|---|
| N | P | ||||
| Size | D | Front Mount | Rear Mount | Front Mount | Rear Mount |
| 9 | .565 | .400 | .405 | .280 | .265 |
| 15 | .715 | .550 | .555 | .280 | .265 |
| 21 | .865 | .700 | .705 | .280 | .265 |
| 25 | .965 | .800 | .805 | .280 | .265 |
| 31 | 1.115 | .950 | .955 | .280 | .265 |
| 37 | 1.265 | 1.100 | 1.105 | .280 | .265 |
| 51-3 | 1.215 | 1.046 | 1.057 | .320 | .305 |

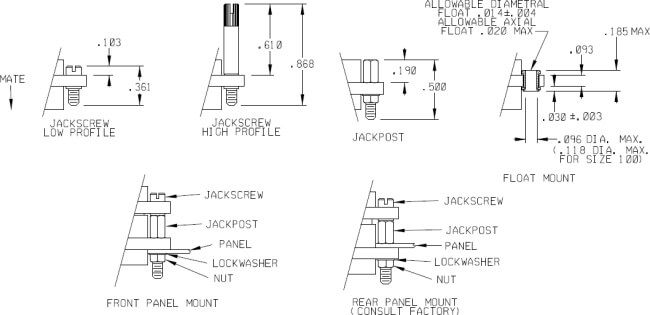

| Description | Thread | Used on Sizes | 3D Models | Used On Styles |
|---|---|---|---|---|
| Jackscrew Lo Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-02.stp | 16,17,18,19 |
| Jackscrew hi Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-03.stp | 16,17,18,19 |
| Jackscrew Lo Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-05.stp | 16,17,18,19 |
| Jackscrew hi Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-06.stp | 16,17,18,19 |
| Jackpost | 2-56 UNC-2B | 9 through 51 | M83513/05-07.stp | All Styles |

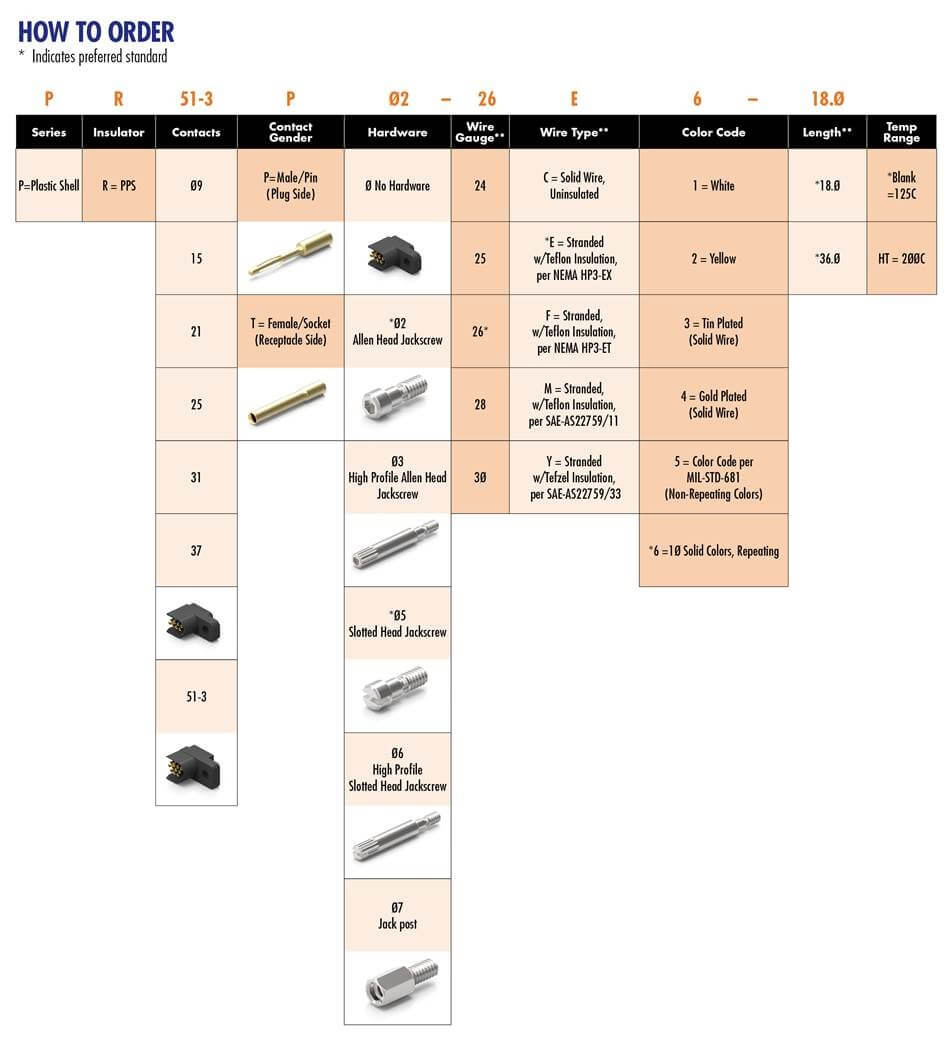

Part Number: 839040111
Engineering Part Number: PR51-3S02-24F1-72.00-HT
Termination: Wired, Profile: Low, Contact Gender: Socket, Number of signal contacts: 51, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: White, Wire Length: 72 in., Shell Material: Plastic, Max Temp: 200 C, QPL: No
Part Number: 839040112
Engineering Part Number: PR15S02-24F1-72.00-HT
Termination: Wired, Profile: Low, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: White, Wire Length: 72 in., Shell Material: Plastic, Max Temp: 200 C, QPL: No
Part Number: 839040113
Engineering Part Number: PR37S02-24F1-72.00-HT
Termination: Wired, Profile: Low, Contact Gender: Socket, Number of signal contacts: 37, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: White, Wire Length: 72 in., Shell Material: Plastic, Max Temp: 200 C, QPL: No
Part Number: 839040114
Engineering Part Number: PR21S02-24F1-72.00-HT
Termination: Wired, Profile: Low, Contact Gender: Socket, Number of signal contacts: 21, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: White, Wire Length: 72 in., Shell Material: Plastic, Max Temp: 200 C, QPL: No
Part Number: 834518070
Engineering Part Number: PR09P0-26E5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: No Hardware, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518072
Engineering Part Number: PR09P02-26E5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Allen Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518075
Engineering Part Number: PR09P05-26E5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Slotted Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518180
Engineering Part Number: PR09P0-26M5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: No Hardware, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (SAE-AS22759/11), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518235
Engineering Part Number: PR09P05-28E5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Slotted Head Jackscrew, Wire AWG: 28, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834518242
Engineering Part Number: PR09P02-24E5-18.0
Termination: Wired, Profile: Low, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
