Standard Profile Plastic Shell Connector
Aptiv Interconnect Micro offers Standard Profile Plastic Shell Connectors with environmentally sealed wire leads for reliable performance in demanding environments. Operating from -55°C to +125°C (up to +200°C with HT versions), these connectors feature high-quality materials and gold-plated contacts. Available in 9–100 contact configurations, they deliver durability and consistent performance in harsh conditions.
Features and Benefits
- Sealed Plastic Shell Design: Protects against moisture, dust, and environmental stress.
- Wide Temperature Range: Operates from -55°C to +125°C; HT versions up to +200°C.
- Flexible Contact Options: Available in 9 to 100 contact configurations.
- High-Quality Contact Materials: C17200 Beryllium Copper pins and C21000 Brass sockets.
- Reliable Gold Plating: .000050 Thk Gold per ASTM B488 ensures corrosion resistance.
- Rugged Construction: PPS shell and insulator per MIL-M-24519 GST-40F for durability.
- Passivated Stainless-Steel Hardware: Provides mechanical strength and longevity.
Specifications, Parts, and Filters

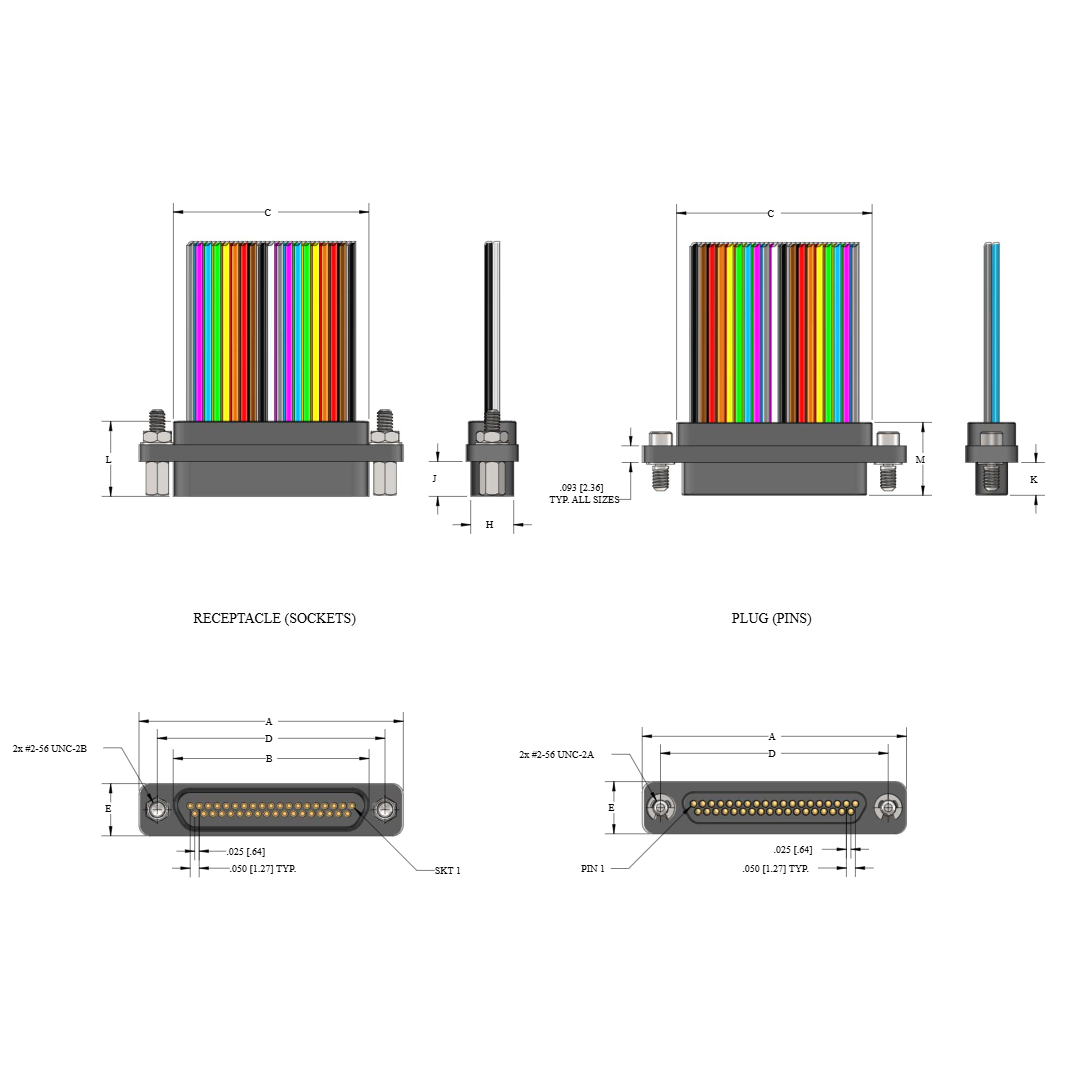

| 2D Dimensional Data | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Size | A Max. | B Max. | C Max. | D Nom. | H Max. | E Max. | J Max.(Skt) | K Max. (Pin) | L Max.(Skt) | M Max.(Pin) |
| ALL | M &B series | |||||||||
| 9 | .785(19.94) | .402(10.21) | .390(9.98) | .565(14.35) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 15 | .935(23.75) | .552(14.02) | .540(13.79) | .715(18.16) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 21 | 1.085(27.56) | .702(17.83) | .690(17.60) | .865(21.47) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 25 | 1.185(30.10) | .802(20.37) | .790(20.14) | .965(24.51) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 31 | 1.335(33.91) | .952(24.18) | .940(23.95) | 1.115(28.32) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 37 | 1.485(37.72) | 1.102(27.99) | 1.090(27.76) | 1.265(32.13) | .248(6.30) | .308(7.83) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 51 | 1.435(36.45) | 1.054(26.77) | 1.040(26.44) | 1.215(30.86) | .297(7.54) | .351(8.92) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |
| 100 | 2.165(54.99) | 1.505(38.23) | 1.432(36.63) | 1.800(45.72) | .394(10.00) | .394(10.00) | .199(5.05) | .187(4.75) | .429(10.90) | .416(10.57) |

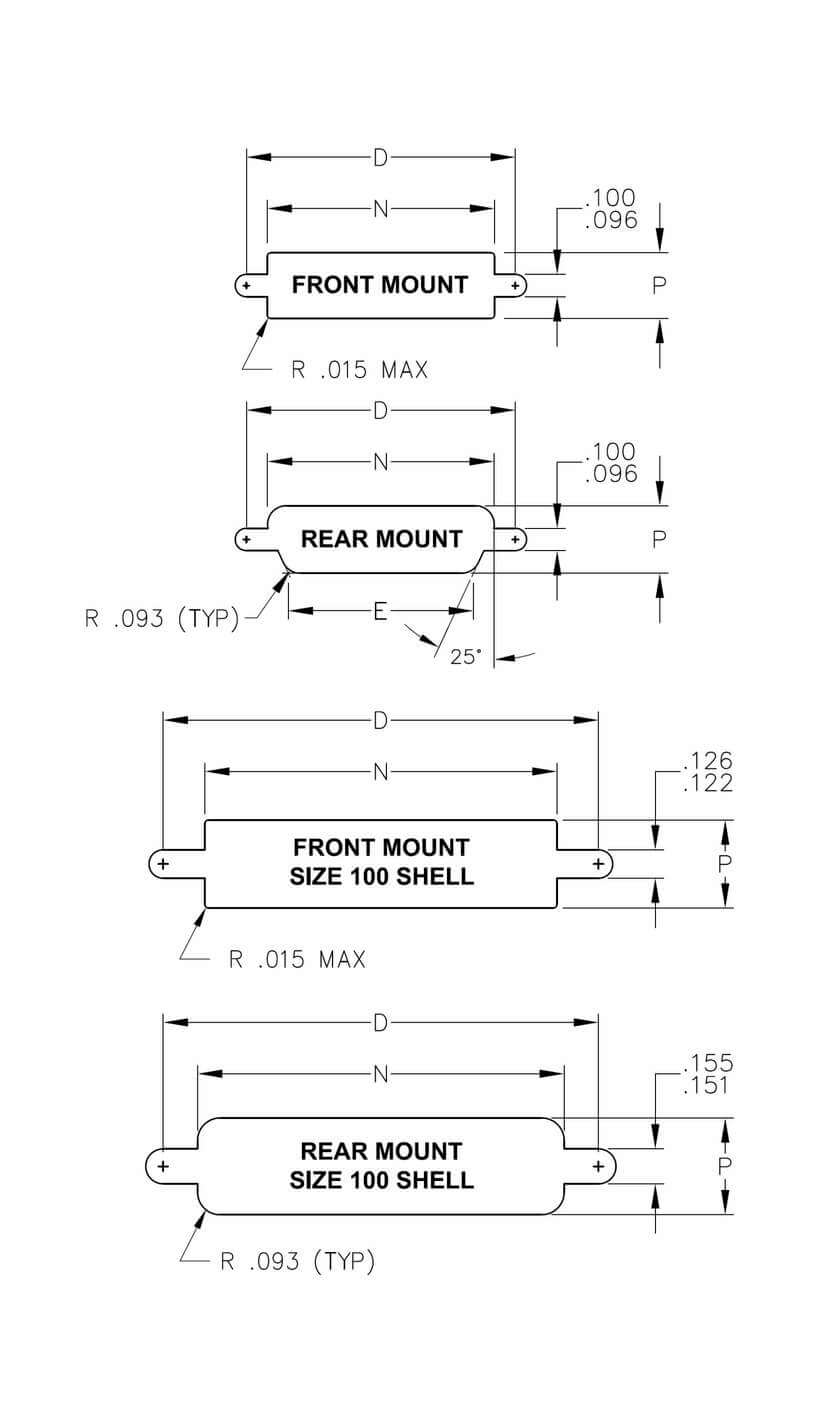

| Panel Cut-Out Dimensions | |||||
|---|---|---|---|---|---|
| N | P | ||||
| Size | D | Front Mount | Rear Mount | Front Mount | Rear Mount |
| 9 | .565 | .400 | .405 | .280 | .265 |
| 15 | .715 | .550 | .555 | .280 | .265 |
| 21 | .865 | .700 | .705 | .280 | .265 |
| 25 | .965 | .800 | .805 | .280 | .265 |
| 31 | 1.115 | .950 | .955 | .280 | .265 |
| 37 | 1.265 | 1.100 | 1.105 | .280 | .265 |
| 51-3 | 1.215 | 1.046 | 1.057 | .320 | .305 |
| 100 | 1.800 | 1.445 | 1.506 | .402 | .402 |

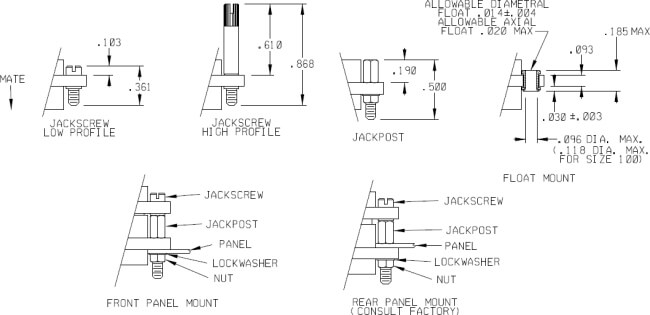

| Description | Thread | Used on Sizes | 3D Models | Used On Styles |
|---|---|---|---|---|
| Jackscrew Lo Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-02.stp | 16,17,18,19 |
| Jackscrew hi Allen | 2-56 UNC-2A | 9 through 51 | M83513/05-03.stp | 16,17,18,19 |
| Jackscrew Lo Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-05.stp | 16,17,18,19 |
| Jackscrew hi Slot | 2-56 UNC-2A | 9 through 51 | M83513/05-06.stp | 16,17,18,19 |
| Jackpost | 2-56 UNC-2B | 9 through 51 | M83513/05-07.stp | All Styles |
| Jackscrew Lo Allen | 4-40 UNC-2A | 100 | M83513/05-12.stp | 16,17,18,19 |
| Jackscrew hi Allen | 4-40 UNC-2A | 100 | M83513/05-13.stp | 16,17,18,19 |
| Jackscrew Lo Slot | 4-40 UNC-2A | 100 | M83513/05-15.stp | 16,17,18,19 |
| Jackscrew hi Slot | 4-40 UNC-2A | 100 | M83513/05-16.stp | 16,17,18,19 |
| Jackpost | 4-40 UNC-2B | 100 | M83513/05-17.stp | All Styles |

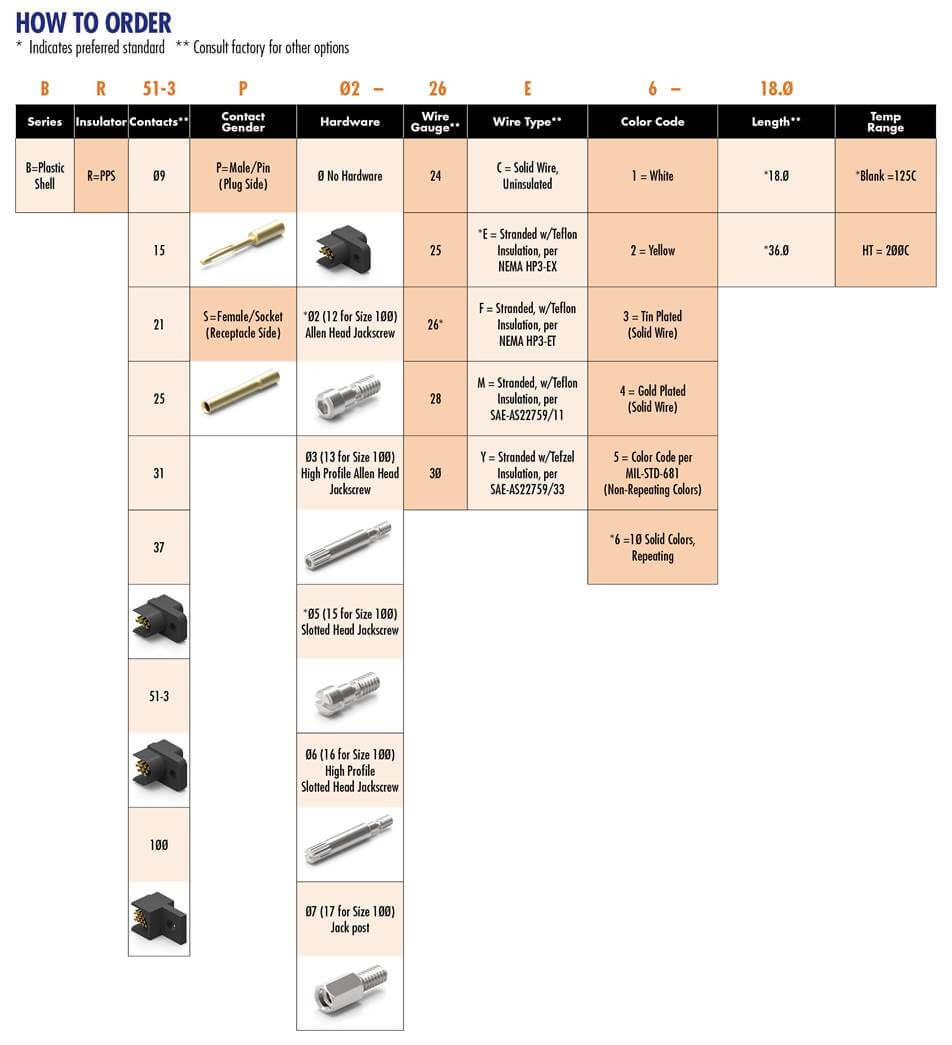

Part Number: 834718072
Engineering Part Number: BR09P02-26E5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Allen Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834718075
Engineering Part Number: BR09P05-26E5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Slotted Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834718532
Engineering Part Number: BR09P02-26E5-36.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Allen Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834718533
Engineering Part Number: BR09P03-26E5-36.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 9, Hardware: High Profile Allen Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834720742
Engineering Part Number: BR15P02-24M5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (SAE-AS22759/11), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834728242
Engineering Part Number: BR15P02-24E5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834728510
Engineering Part Number: BR15P0-24E6-36.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 15, Hardware: No Hardware, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: 10 Repeating Colors, Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834738070
Engineering Part Number: BR21P0-26E5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 21, Hardware: No Hardware, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834738242
Engineering Part Number: BR21P02-24E5-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Allen Head Jackscrew, Wire AWG: 24, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: Non-Repeating Colors (Mil-Std-681), Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 834768015
Engineering Part Number: BR37P05-26E1-18.0
Termination: Wired, Profile: Standard, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Slotted Head Jackscrew, Wire AWG: 26, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-EX), Wire Color: White, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
