Nano Field Attachable Dual Row Metal Shell Connector

Aptiv Interconnect Micro, formerly known as Ulti-Mate Connector, offers Nano Field Attachable Dual Row Metal Shell Connectors — a durable and compact solution for precision cable connections. These connectors feature a metal shell with flat leads, providing excellent shielding and mechanical protection. With an operating temperature range of −55°C to 125°C and high-temperature versions available up to 200°C (add HT), they are built to perform in harsh environments. Available in 9 to 65 contact configurations, these connectors are QPL qualified to MIL-DTL-32139, ensuring military-grade reliability and consistency.

Request Quote
Download Datasheet
Nano Field Attachable Dual Row Metal Shell Connector product image

Features and Benefits

  • Metal Shell Construction: Provides superior durability and EMI/RFI protection.
  • Field-Attachable Design: Enables easy and secure assembly for on-site applications.
  • Wide Operating Temperature Range: Performs reliably from −55°C to 125°C, extendable to 200°C (HT option).
  • Flexible Contact Options: Available with 9 to 65 contacts to meet varied design needs.
  • QPL Qualified to MIL-DTL-32139: Ensures compliance with military and aerospace standards.
  • Reliable Mechanical Performance: Engaging force of 5 oz max, separation force of 0.4 oz min, and mating/unmating force of 7 oz × number of contacts for secure connections.

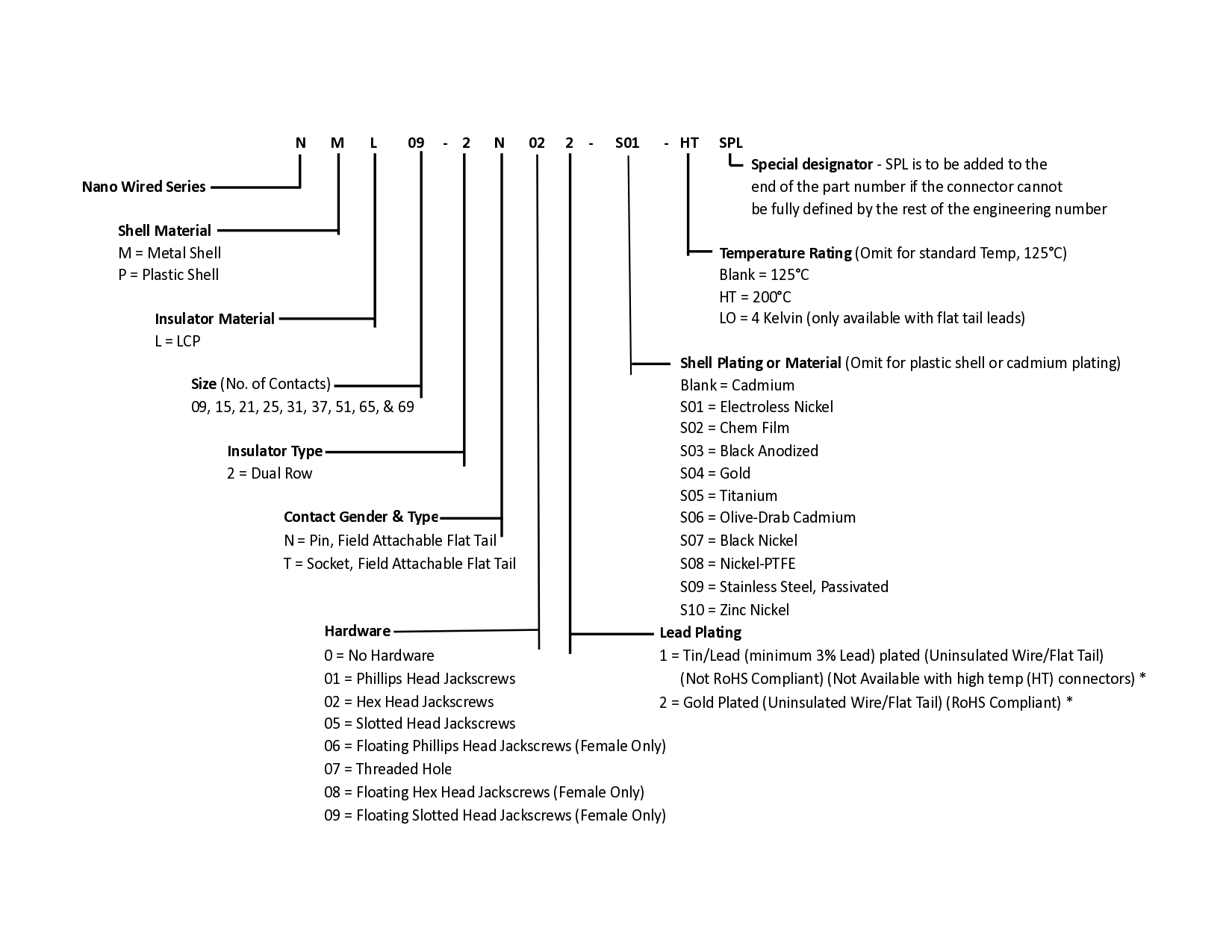

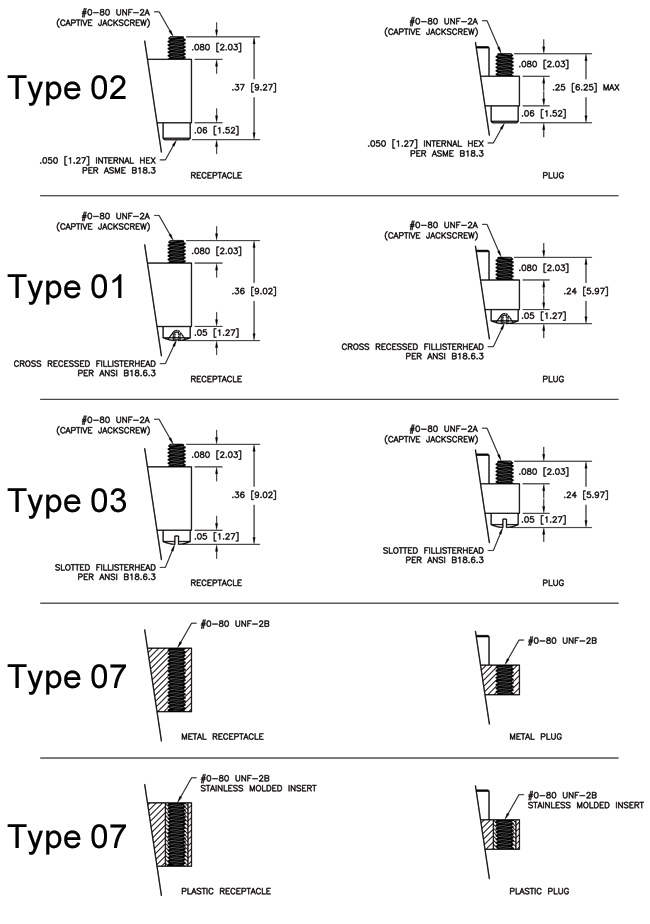

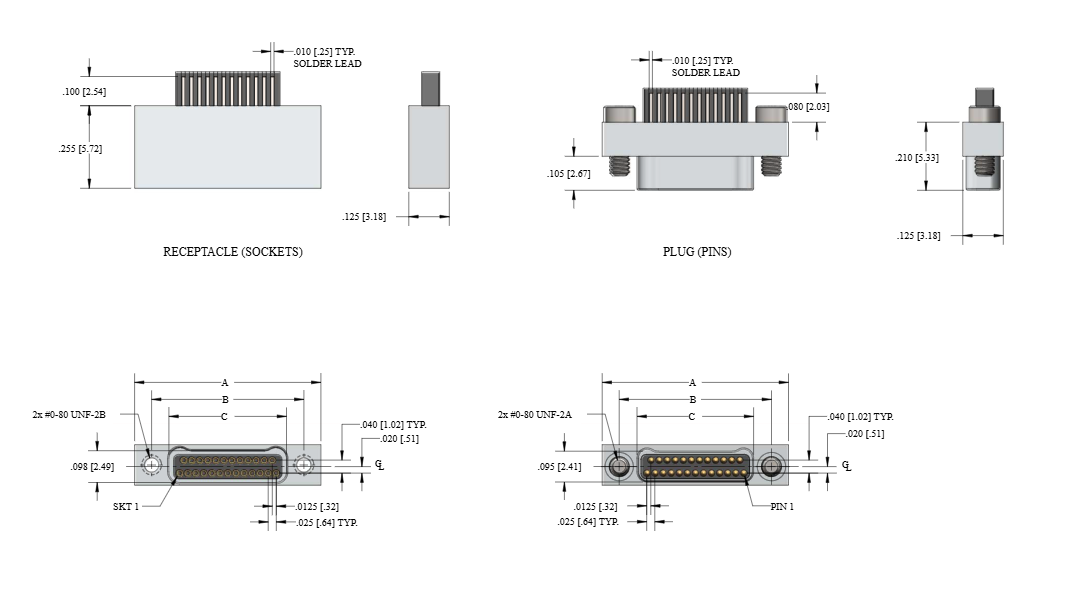

Specifications, Parts, and Filters

View All

Contact Resistance
33 milliohms max (contact only) and 87 milliohms max with 6" wire @ 1A.
Current Rating
1A max.
Dielectric Withstanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet; 1 mA leakage current max.
Insulation Resistance
100 VDC and 5000 megohms min.

Engaging Force
5 oz max.
Separation Force
0.4 oz min.
Mating/Unmating Force
7 oz × of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity.
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity.
Durability
EIA-364-09, 200 mating cycles; passes mating force, contact resistance, engaging force, and separation force requirements.
Salt Spray
EIA-364-26 Condition B, 48 hours.

Signal Pin Contacts
C17410 Beryllium Copper per ASTM B768
Signal Socket Contacts
C17410 Beryllium Copper per ASTM B768
Contact Plating
Gold Plating per ASTM B488
PC Tails
C17410 Beryllium Copper per ASTM B768
PC Tail Plating
60/40 Tin/Lead Plating per SAE-AMS-P-81728, or Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or 300 Series Stainless Steel per ASTM A582
Shell Plating
Electroless Nickel per SAE-AMS2404, or Cadmium per SAE-AMS-QQ-P-416, or Black Anodize per MIL-A-8625, or Passivated per AMS2700
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F
