Nano Field Attachable Dual Row Plastic Shell Connector

Aptiv Interconnect offers Nano Field Attachable Dual Row Plastic Shell Connectors, designed for precision and reliability in compact interconnect applications. These circular plastic, field-attachable inline connectors feature a field-solderable design with flat leads, ensuring ease of use and dependable performance. Operating within a temperature range of −55°C to 125°C, and available in high-temperature versions up to 200°C (add HT), they are built to perform in a variety of demanding environments. Equipped with 7 contacts, these connectors are QPL qualified to MIL-DTL-32139, meeting stringent military and aerospace standards.

Request Quote
Download Datasheet
Nano Field Attachable Dual Row Plastic Shell Connector product image

Features and Benefits

  • Lightweight Plastic Shell Design: Offers durability with reduced weight for compact system integration.
  • Field-Attachable and Solderable: Simplifies on-site assembly and repair.
  • Wide Temperature Range: Operates from −55°C to 125°C, extendable to 200°C (HT option).
  • High-Quality Materials: Signal pin and socket contacts made of C17410 Beryllium Copper per ASTM B768 for strength and conductivity.
  • Reliable Plating Options: Gold plating per ASTM B488; PC tails plated with either 60/40 Tin/Lead or Gold for corrosion resistance.
  • QPL Qualified to MIL-DTL-32139: Ensures dependable performance in mission-critical applications.

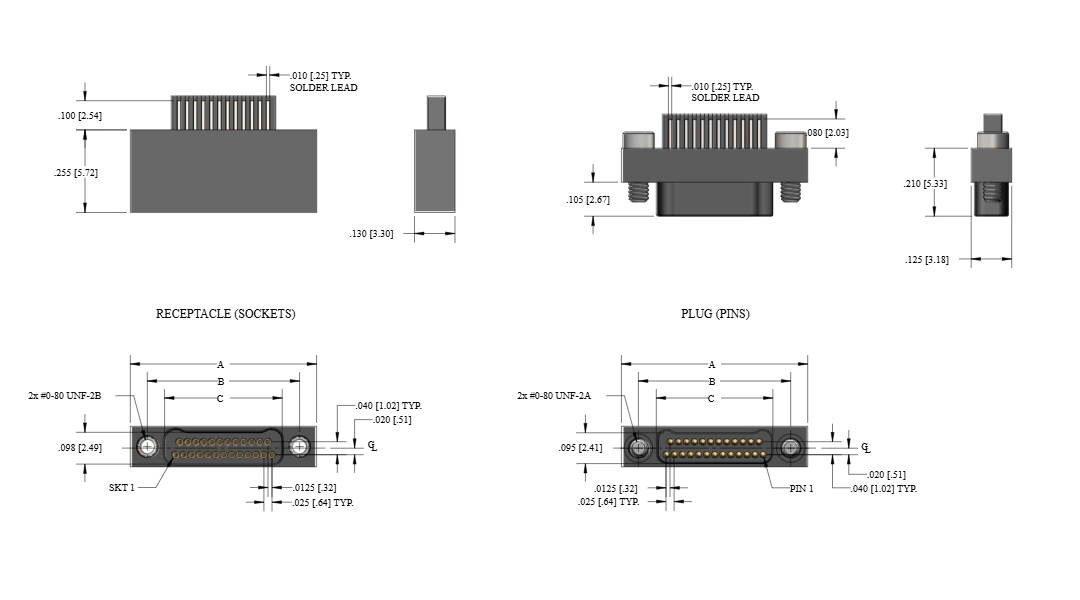

Specifications, Parts, and Filters

View All

Contact Resistance
33 milliohms max (contact only) and 87 milliohms max with 6" wire @ 1A.
Current Rating
1A max.
Dielectric Withstanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet; 1 mA leakage current max.
Insulation Resistance
100 VDC and 5000 megohms min.

Engaging Force
5 oz max.
Separation Force
0.4 oz min.
Mating/Unmating Force
7 oz × # of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity.
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity.
Durability
EIA-364-09, 200 mating cycles; passes mating force, contact resistance, engaging force, and separation force requirements.

Signal Pin Contacts
C17410 Beryllium Copper per ASTM B768
Signal Socket Contacts
C17410 Beryllium Copper per ASTM B768
Contact Plating
Gold Plating per ASTM B488
PC Tails
C17410 Beryllium Copper per ASTM B768
PC Tail Plating
60/40 Tin/Lead Plating per SAE-AMS-P-81728, or Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or 300 Series Stainless Steel per ASTM A582
Shell Plating
Electroless Nickel per SAE-AMS2404, or Cadmium per SAE-AMS-QQ-P-416, or Black Anodize per MIL-A-8625, or Passivated per AMS2700
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F

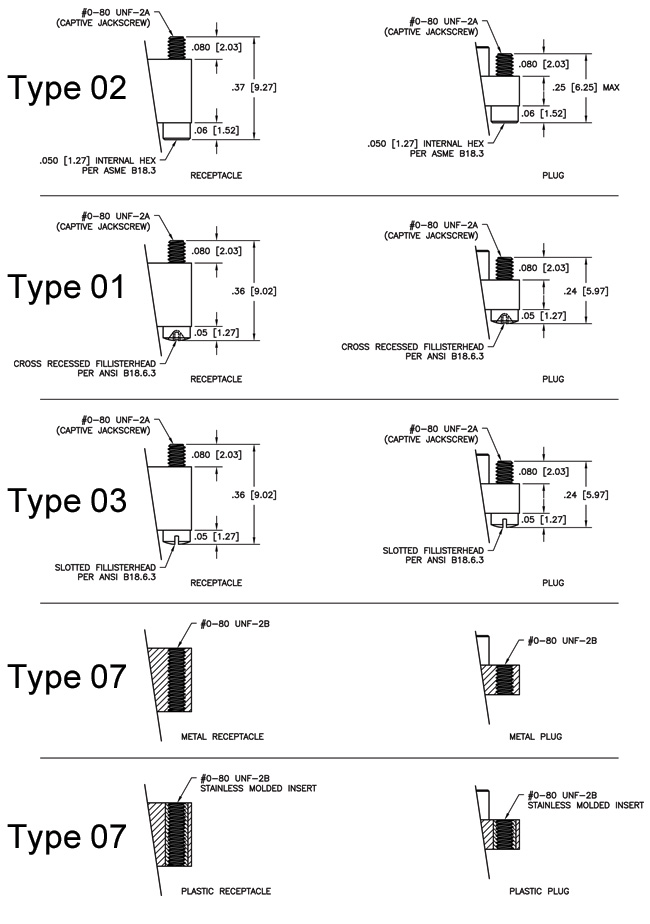

Hardware
300 Series Stainless Steel per ASTM A582/A582M or ASTM A581/A581M, Passivated per SAE AMS-2700
