Product Overview
Right Angle Dual Row Plated Thru Hole Metal Shell (Style 8) Connector
Aptiv Interconnect Micro, formerly known as Ulti-Mate Connector, offers PCB Right Angle Dual Row Plated Thru Hole Metal Shell (Style 8) Connectors engineered for high reliability and performance. Featuring a durable metal shell and flat tail termination with .050 x .050 spacing, these connectors ensure precise board integration. They operate within a temperature range of −55°C to 125°C, with high-temperature versions available up to 200°C (add HT). Available in 9 to 65 contacts, these QPL-qualified MIL-DTL-32139 connectors deliver dependable electrical performance and long service life.
Features and Benefits
- Robust Metal Shell Design: Provides superior mechanical protection and EMI shielding.
- Right-Angle Plated Thru Hole Style: Ensures secure and stable PCB mounting.
- Wide Temperature Range: Operates from −55°C to 125°C, extendable to 200°C (HT option).
- High-Strength Contacts: Signal pin and socket contacts made from C17410 Beryllium Copper for excellent conductivity.
- Gold-Plated Contacts: Gold plating per ASTM B488 ensures reliable, corrosion-resistant performance.
- Versatile PC Tail Options: Available with 60/40 tin/lead or gold-plated PC tails for application flexibility.
- Multiple Contact Configurations: Offered in 9 to 65 contact options to support diverse circuit requirements.
Specifications, Parts, and Filters
C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |

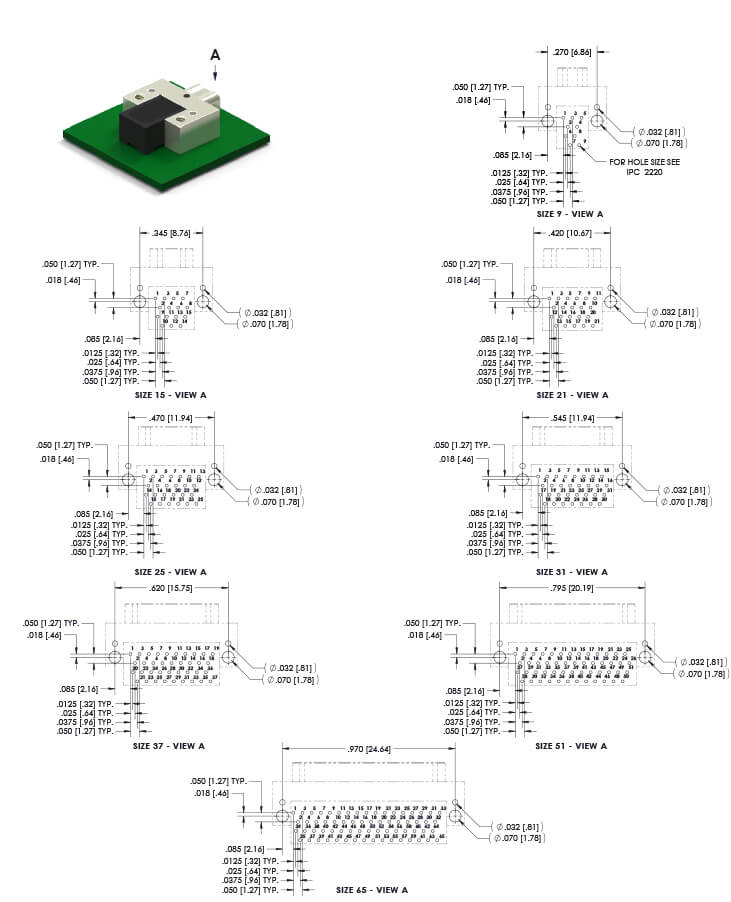

C_PCB.webp)

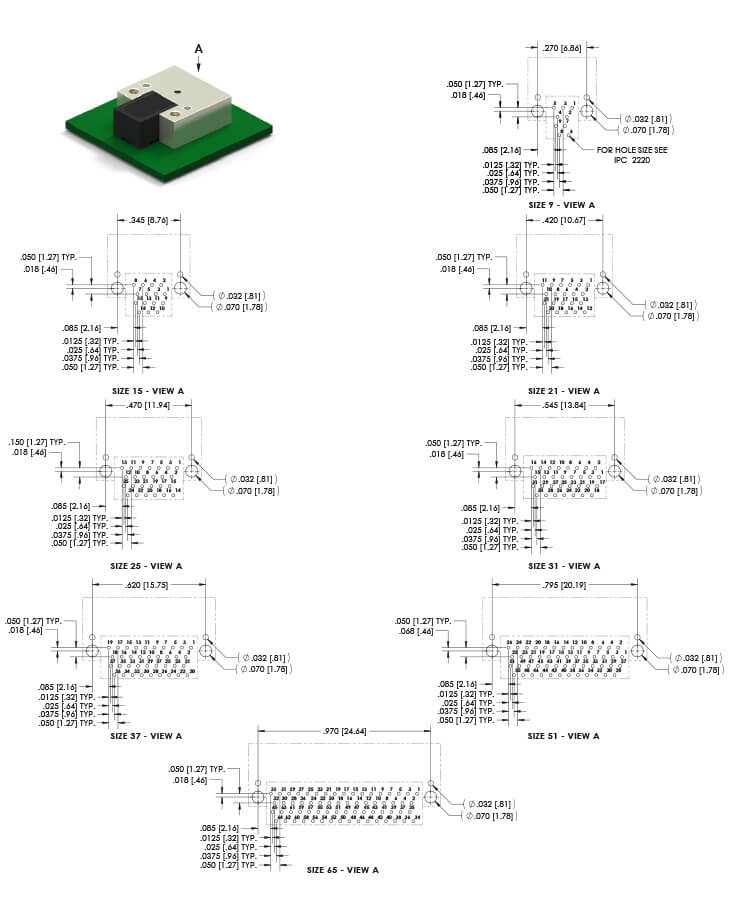

_PCB_F.webp)
Part Number: 432311827
Engineering Part Number: CNM8L09-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432321827
Engineering Part Number: CNM8L15-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432331827
Engineering Part Number: CNM8L21-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432341827
Engineering Part Number: CNM8L25-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432351827
Engineering Part Number: CNM8L31-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432361827
Engineering Part Number: CNM8L37-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432371827
Engineering Part Number: CNM8L51-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432381827
Engineering Part Number: CNM8L65-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 65, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432411827
Engineering Part Number: CNM8L09-2S072-S01 HT
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432421827
Engineering Part Number: CNM8L15-2S072-S01 HT
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Gold Plated, PC Tail Length: 0.109, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
