Product Overview

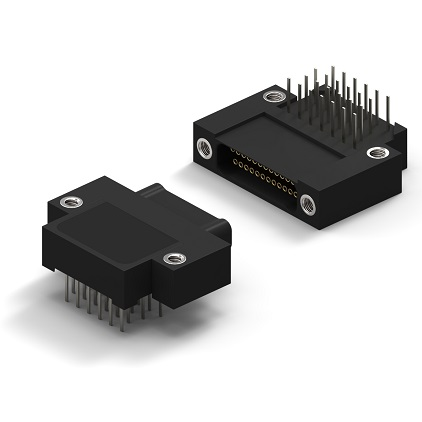

Right Angle Dual Row Plated Thru Hole Plastic Shell (Style 8) Connector
Aptiv Interconnect Micro offers Nano PCB Right Angle Dual Row Plated Thru Hole Plastic Shell (Style 8) Connectors, engineered for compact, high-performance interconnect applications. These connectors feature a durable plastic shell with flat tail termination and .025 x .040 (Style 28) spacing for stable PCB mounting. Operating within a temperature range of −55°C to 125°C—with high-temperature versions up to 200°C (add HT)—they are available in 9 to 65 contact configurations. As a QPL-qualified supplier for MIL-DTL-32139 products, Aptiv ensures reliability and precision in every connection.
Features and Benefits
- Durable Plastic Shell: Provides lightweight protection and insulation for compact designs.
- Right-Angle Plated Thru Hole Design: Enables secure, low-profile PCB integration.
- Wide Temperature Range: Operates from −55°C to 125°C, with optional high-temp versions up to 200°C.
- High-Performance Contacts: Signal pin and socket contacts made from C17410 Beryllium Copper for superior conductivity.
- Gold-Plated Finish: Gold plating per ASTM B488 ensures corrosion resistance and stable signal transmission.
- Versatile PC Tail Options: PC tails in C17410 Beryllium Copper with 60/40 Tin/Lead or Gold plating options.
- Multiple Contact Counts: Available with 9 to 65 contacts to support diverse application requirements.
Specifications, Parts, and Filters
C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |

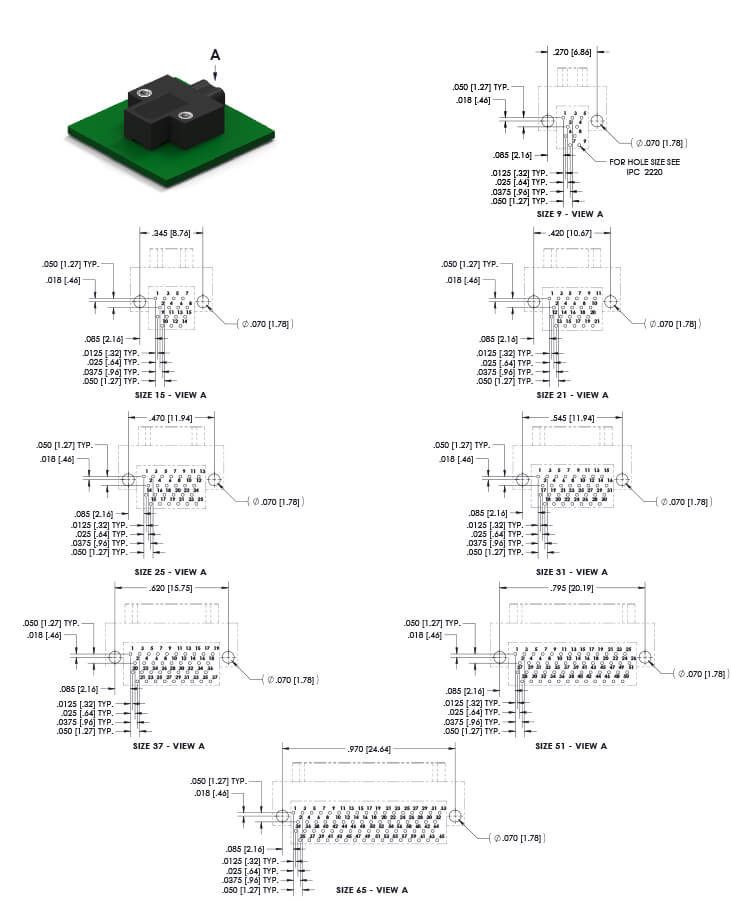

C_PCB.webp)

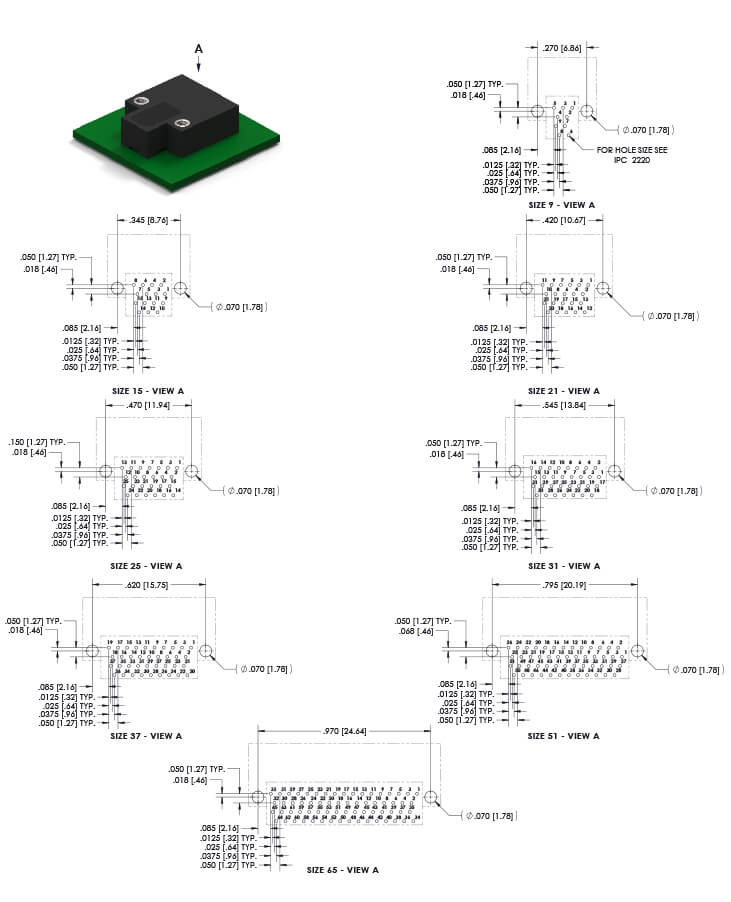

C_PCB_F.webp)
Part Number: 832318817
Engineering Part Number: CNP8L092P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832328817
Engineering Part Number: CNP8L152P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832338817
Engineering Part Number: CNP8L212P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832348817
Engineering Part Number: CNP8L252P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832358817
Engineering Part Number: CNP8L312P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832368817
Engineering Part Number: CNP8L37-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832378817
Engineering Part Number: CNP8L512P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832388817
Engineering Part Number: CNP8L652P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 65, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832418817
Engineering Part Number: CNP8L092S071
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832428817
Engineering Part Number: CNP8L152S071
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: Thru-Hole, Thru-Hole PCB Layout: .050 x .050 (style 8), Orientation: Right Angle, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
