Product Overview

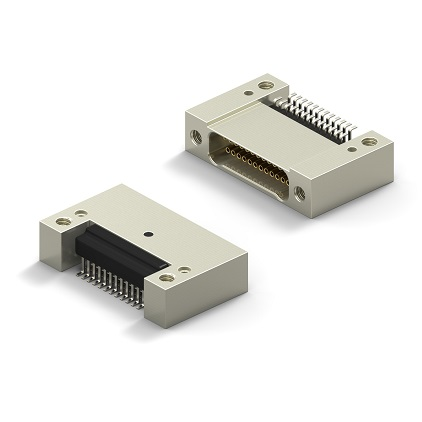

Right Angle Surface Mount Extended Profile Female Only Metal Shell (Style 38) Connector
Aptiv Interconnect Micro offers Nano PCB Right Angle SMT Extended Profile Female Only Metal Shell (Style 38) Connectors, designed for durability, precision, and reliability in high performance PCB applications. Featuring a Surface Mount .025 x .040 (Style 38) configuration, these connectors include a 1-piece contact and rectangular flat tails that ensure superior soldering results without lead deformation. Operating from −55°C to 125°C— with high-temperature versions available up to 200°C (add HT)—they are ideal for demanding environments requiring robust connectivity.
Features and Benefits
- Extended Profile Female Design: Optimized for secure and precise mating in compact PCB layouts.
- Rectangular Flat Tails: Provide superior solder integrity and eliminate lead deformation.
- Durable Metal Shell: Enhances shielding and mechanical protection for long-term reliability.
- Wide Operating Range: Performs efficiently from −55°C to 125°C; high-temp option up to 200°C.
- Reliable Mechanical Performance: Engaging force 5 oz max, separation force 0.4 oz min, and mating/unmating force 7 oz × number of contacts max.
- Tested for Harsh Conditions: Meets vibration (EIA-364-28 Condition IV) and shock (EIA-364-27 Condition G) standards with 1 µs max discontinuity.
Specifications, Parts, and Filters
C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |
| Nano Series Circuit Dual Row (Extended Profile-Female Only) Surface Mount Metal Shell | ||||||
|---|---|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D | 3D | PCB |
| 9 | ||||||
| Female | CNM38L09-2S071-S01 | 832411117 | 2D | 3D | PCB | |
| 15 | ||||||
| Female | CNM38L15-2S071-S01 | 832421117 | 2D | 3D | PCB | |
| 21 | ||||||
| Female | CNM38L21-2S071-S01 | 832431117 | 2D | 3D | PCB | |
| 25 | ||||||
| Female | CNM38L25-2S071-S01 | 832441117 | 2D | 3D | PCB | |
| 31 | ||||||
| Female | CNM38L31-2S071-S01 | 832451117 | 2D | 3D | PCB | |
| 37 | ||||||
| Female | CNM38L37-2S071-S01 | 832461117 | 2D | 3D | PCB | |
| 51 | ||||||
| Female | CNM38L51-2S071-S01 | 832471117 | 2D | 3D | PCB | |
| 65 | ||||||
| Female | CNM38L65-2S071-S01 | 832481117 | 2D | 3D | PCB | |

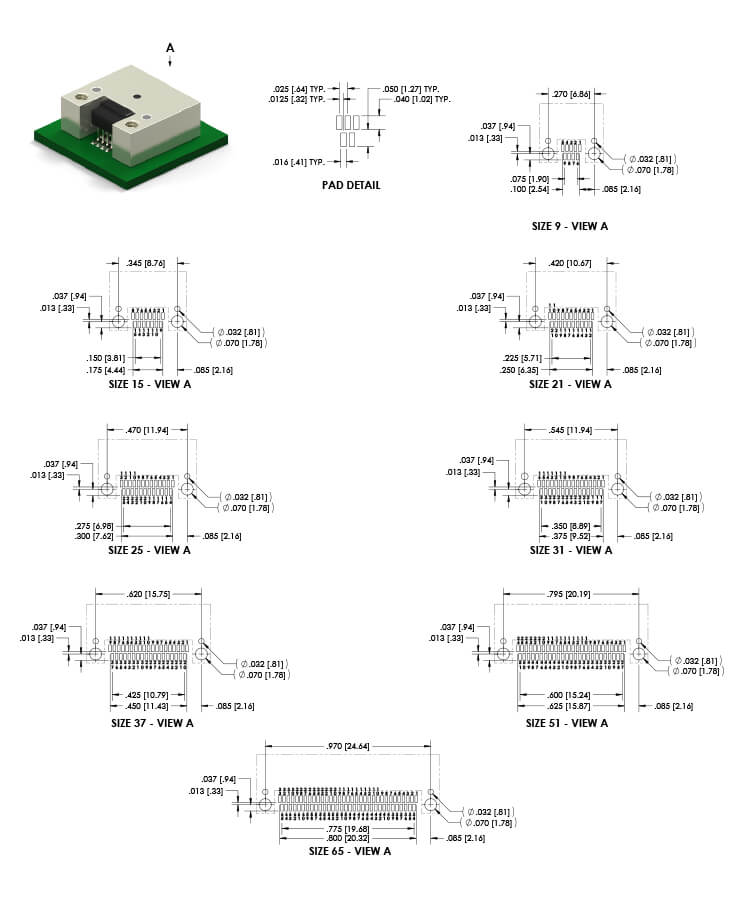

C_PCB.webp)
Part Number: 832411117
Engineering Part Number: CNM38L09-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832421117
Engineering Part Number: CNM38L15-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832431117
Engineering Part Number: CNM38L21-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832441117
Engineering Part Number: CNM38L25-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832451117
Engineering Part Number: CNM38L31-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832461117
Engineering Part Number: CNM38L37-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 37, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832471117
Engineering Part Number: CNM38L51-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 51, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832481117
Engineering Part Number: CNM38L65-2S071-S01
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 65, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .040 (style 38), Orientation: Right Angle, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
