Product Overview
Vertical Dual Row Surface Mount Metal Shell Low Profile Male Only (Style 36) Connector
Aptiv Interconnect Micro offers PCB Vertical Dual Row Surface Mount Metal Shell Low Profile Male Only (Style 36) Connectors, engineered for compact, high-reliability PCB applications. Featuring a .025 x .075 (Style 36) configuration with a 1-piece contact and rectangular flat tail, these connectors deliver superior soldering results with no lead deformation. Built to perform in extreme conditions, they operate from −55°C to 125°C, with high-temperature versions available up to 200°C (add HT). Available in 9 to 65 contacts, they combine durability, precision, and performance in one compact design.
Features and Benefits
- Low-Profile Metal Shell Design: Ideal for compact and space-limited PCB layouts.
- Rectangular Flat Tail Termination: Ensures clean solder joints and prevents lead deformation.
- Wide Temperature Range: Operates from −55°C to 125°C; HT versions extend to 200°C.
- Reliable Mechanical Performance: Engaging Force
- Available in 9–65 Contacts: Supports a variety of interconnect configurations.
- Perfect for High-Density PCB Applications: Provides precision connectivity for aerospace, defense, and instrumentation systems.
Specifications, Parts, and Filters
C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |
| Nano Series Circuit Vertical Dual Row (Extended Profile-Male Only) Surface Mount Metal Shell | ||||||
|---|---|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D | 3D | PCB |
| 9 | ||||||
| Male | CNM36L09-2P071-S01 | 832311717 | 2D | 3D | PCB | |
| 15 | ||||||
| Male | CNM36L15-2P071-S01 | 832321717 | 2D | 3D | PCB | |
| 21 | ||||||
| Male | CNM36L21-2P071-S01 | 832331717 | 2D | 3D | PCB | |
| 25 | ||||||
| Male | CNM36L25-2P071-S01 | 832341717 | 2D | 3D | PCB | |
| 31 | ||||||
| Male | CNM36L31-2P071-S01 | 832351717 | 2D | 3D | PCB | |
| 37 | ||||||
| Male | CNM36L37-2P071-S01 | 832361717 | 2D | 3D | PCB | |
| 51 | ||||||
| Male | CNM36L51-2P071-S01 | 832371717 | 2D | 3D | PCB | |
| 65 | ||||||
| Male | CNM36L65-2P071-S01 | 832381717 | 2D | 3D | PCB | |

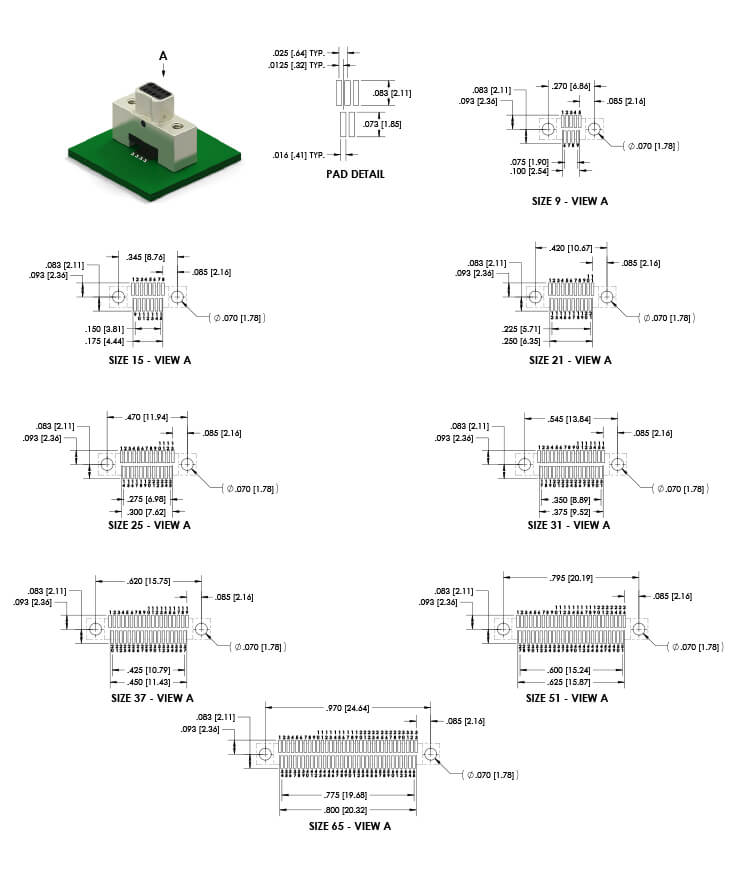

C_PCB.webp)
Part Number: 832311717
Engineering Part Number: CNM36L09-2P071-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832311727
Engineering Part Number: CNM36L09-2P072-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832321717
Engineering Part Number: CNM36L15-2P071-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832321727
Engineering Part Number: CNM36L15-2P072-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832331717
Engineering Part Number: CNM36L21-2P071-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832331727
Engineering Part Number: CNM36L21-2P072-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832341717
Engineering Part Number: CNM36L25-2P071-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832341727
Engineering Part Number: CNM36L25-2P072-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832351717
Engineering Part Number: CNM36L31-2P071-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
Part Number: 832351727
Engineering Part Number: CNM36L31-2P072-S01
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 125 C, QPL: No
