Product Overview
Vertical Dual Row Surface Mount Metal Shell (Style 26) Connector
Aptiv Interconnect Micro, formerly known as Ulti-Mate Connector, offers Nano PCB Vertical Dual Row Surface Mount Metal Shell (Style 26) Connectors, engineered for exceptional reliability and performance in demanding applications. These connectors feature a metal shell with surface mount .025 x .075 (Style 26) configuration and a rectangular flat tail design that ensures superior soldering results with no lead deformation. Operating across a −55°C to 125°C temperature range, with high-temperature versions available up to 200°C (add HT), these connectors are ideal for rugged environments where consistent electrical performance is essential.
Features and Benefits
- Durable Metal Shell Construction: Provides superior shielding and mechanical strength.
- Rectangular Flat Tail Design: Enables precise, distortion-free soldering and secure PCB mounting.
- Wide Temperature Range: Operates from −55°C to 125°C, with optional HT versions up to 200°C.
- Reliable Electrical and Mechanical Performance: Withstands vibration, shock, durability, and salt spray testing.
- Multiple Contact Options: Available in 9 to 65 contacts to suit various applications.
- Controlled Mating Forces: Engaging force 5 oz max, separation force 0.4 oz min, mating/unmating force 7 oz × number of contacts max.
- Ideal for High-Density PCB Applications: Perfect for aerospace, defense, and instrumentation systems requiring compact, high-performance interconnects.
Specifications, Parts, and Filters

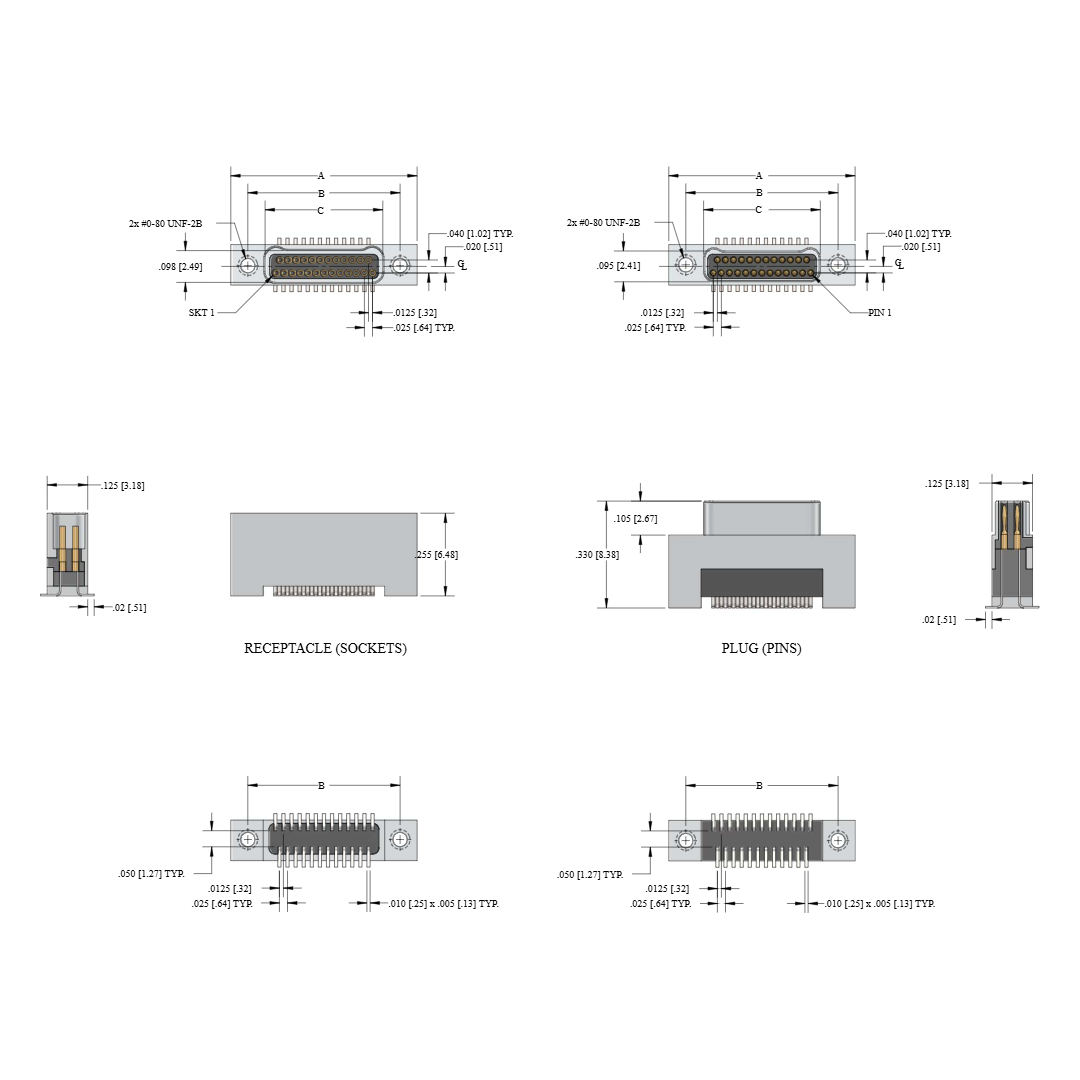

C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |
| NanoD Vertical Dual Row Plated Surface Mount Metal Shell | ||||||
|---|---|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D | 3D | PCB |
| 9 | ||||||
| Male | CNM26L09-2P071-S01 | 832311317 | 2D | 3D | PCB | |
| Female | CNM26L09-2S071-S01 | 832411317 | 2D | 3D | PCB | |
| 15 | ||||||
| Male | CNM26L15-2P071-S01 | 832321317 | 2D | 3D | PCB | |
| Female | CNM26L15-2S071-S01 | 832421317 | 2D | 3D | PCB | |
| 21 | ||||||
| Male | CNM26L21-2P071-S01 | 832331317 | 2D | 3D | PCB | |
| Female | CNM26L21-2S071-S01 | 832431317 | 2D | 3D | PCB | |
| 25 | ||||||
| Male | CNM26L25-2P071-S01 | 832341317 | 2D | 3D | PCB | |
| Female | CNM26L25-2S071-S01 | 832441317 | 2D | 3D | PCB | |
| 31 | ||||||
| Male | CNM26L31-2P071-S01 | 832351317 | 2D | 3D | PCB | |
| Female | CNM26L31-2S071-S01 | 832451317 | 2D | 3D | PCB | |
| 37 | ||||||
| Male | CNM26L37-2P071-S01 | 832361317 | 2D | 3D | PCB | |
| Female | CNM26L37-2S071-S01 | 832461317 | 2D | 3D | PCB | |
| 51 | ||||||
| Male | CNM26L51-2P071-S01 | 832371317 | 2D | 3D | PCB | |
| Female | CNM26L51-2S071-S01 | 832471317 | 2D | 3D | PCB | |
| 65 | ||||||
| Male | CNM26L65-2P071-S01 | 832381317 | 2D | 3D | PCB | |
| Female | CNM26L65-2S071-S01 | 832481317 | 2D | 3D | PCB | |
Part Number: 432311327
Engineering Part Number: CNM26L09-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432321327
Engineering Part Number: CNM26L15-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432331327
Engineering Part Number: CNM26L21-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432341327
Engineering Part Number: CNM26L25-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432351327
Engineering Part Number: CNM26L31-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432361327
Engineering Part Number: CNM26L37-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432371327
Engineering Part Number: CNM26L51-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432381327
Engineering Part Number: CNM26L65-2P072-S01 HT
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 65, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432411327
Engineering Part Number: CNM26L09-2S072-S01 HT
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
Part Number: 432421327
Engineering Part Number: CNM26L15-2S072-S01 HT
Termination: PCB, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 26), Orientation: Vertical, Lead Finish: Gold Plated, Plating Type: Nickel, Shell Material: Metal, Max Temp: 200 C, QPL: No
