Product Overview
Vertical Single Row Plated Thru Hole Metal Shell (Style 6) Connector
Aptiv Interconnect Micro offers Nano PCB Vertical Dual Row Plated Thru Hole Plastic Shell (Style 6) Connectors, designed for compact, high-performance PCB applications. Featuring a plastic shell with plated thru-hole .050 x .050 (Style 6) configuration, these connectors include a 1-piece contact and flat tail termination for strong, reliable solder connections. They operate across a −55°C to 125°C temperature range, with high-temperature versions available up to 200°C (add HT), ensuring dependable performance in demanding environments.
Features and Benefits
- Durable Metal Shell: Provides robust protection and EMI resistance in harsh environments.
- Piece Contact with Flat Tail Termination: Ensures efficient soldering and secure mechanical connection.
- Wide Operating Range: Performs reliably from −55°C to 125°C; HT versions up to 200°C.
- Flexible Contact Options: Available with 9 to 51 contacts for varied design requirements.
- High-Quality Materials: C17410 Beryllium Copper used for signal pin, socket, and PC tails.
- Superior Plating Options: Gold contact plating per ASTM B488; PC tails plated with 60/40 Tin/Lead or Gold for optimal conductivity.
- Ideal for Compact PCB Designs: Offers reliable connectivity and strength in high-density layouts.
Specifications, Parts, and Filters
View All
Contact Resistance
33 milliohms max (contact only) and 87 milliohms max with 6" wire @ 1A.
Current Rating
1A max.
Dielectric Withstanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet; 1 mA leakage current max.
Insulation Resistance
100 VDC and 5000 megohms min.
Engaging Force
5 oz max.
Separation Force
0.4 oz min.
Mating/Unmating Force
7 oz × number of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity.
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity.
Durability
EIA-364-09, 200 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA-364-26 Condition B, 48 hours.
Signal Pin Contacts
C17410 Beryllium Copper per ASTM B768
Signal Socket Contacts
C17410 Beryllium Copper per ASTM B768
Contact Plating
Gold Plating per ASTM B488
PC Tails
C17410 Beryllium Copper per ASTM B768
PC Tail Plating
60/40 Tin/Lead Plating per SAE-AMS-P-81728, or Gold Plating per ASTM B488
Shell
LCP(Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F
Hardware
300 Series Stainless Steel per ASTM A582/A582M or ASTM A581/A581M, Passivated per SAE AMS-2700

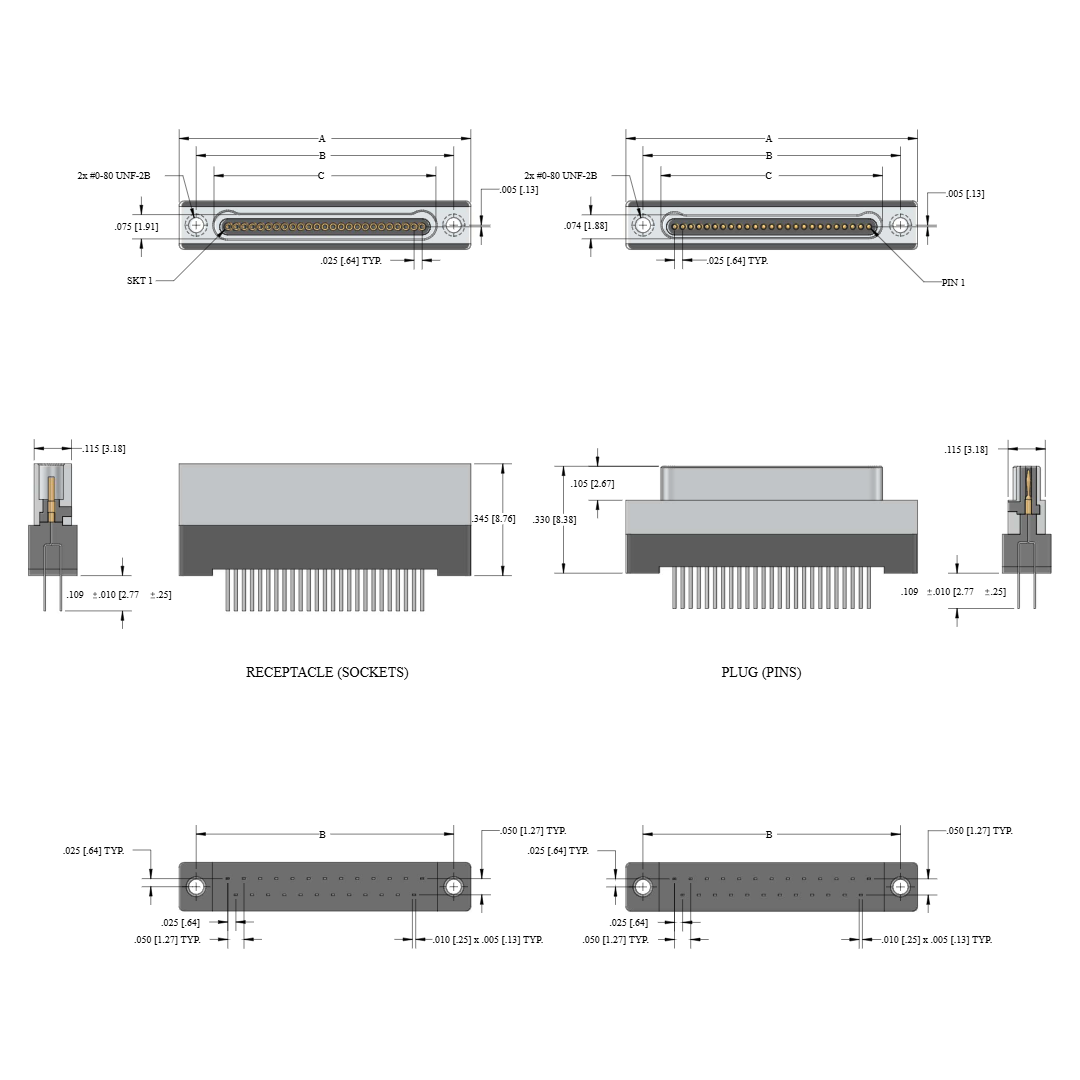

C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO PCB SINGLE ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .500 [12.70] | .395 [10.03] | .284 [7.21] | .285 [7.24] | .300 [7.62] |
| 15 | .650 [16.51] | .545 [13.84] | .434 [11.02] | .435 [11.05] | .450 [11.43] |
| 21 | .800 [20.32] | .695 [17.65] | .584 [14.83] | .585 [14.86] | .600 [15.24] |
| 25 | .900 [22.86] | .795 [20.19] | .684 [17.37] | .685 [17.40] | .700[17.78] |
| 31 | 1.050 [26.67] | .945 [24.00] | .834 [21.18] | .835 [21.21] | .850[21.59] |
| 37 | 1.200 [30.48] | 1.095 [27.81] | .984 [24.99] | .985 [25.02] | 1.000[25.40] |
| 51 | 1.550 [39.37] | 1.445 [36.70] | 1.334 [33.88] | 1.335 [33.91] | 1.350 [34.29] |

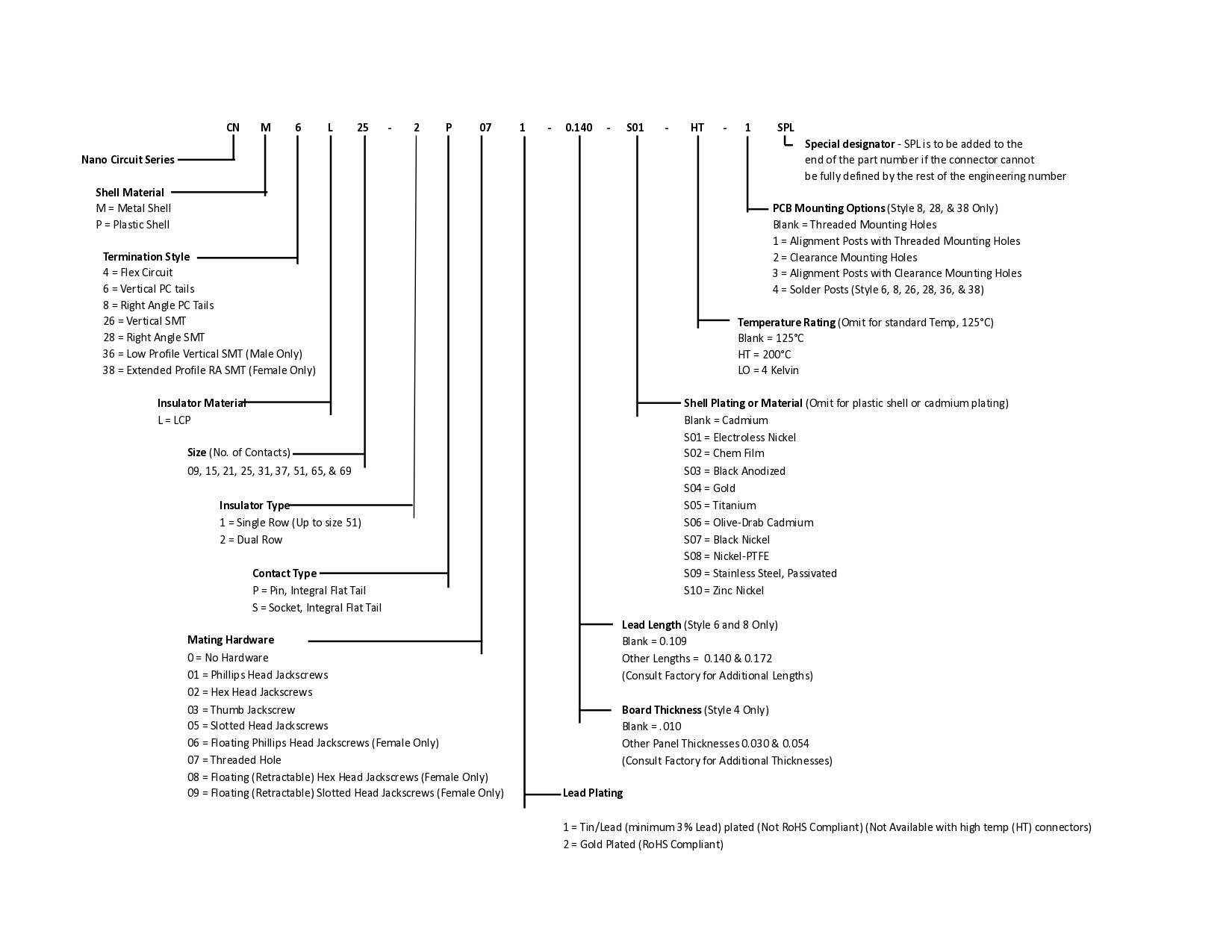

| Nano Series Vertical Single Row - Plated Thru Hole - Metal Shell | ||||
|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D |
| 9 | ||||
| Male | CNM6L09-1P071-S01 | 832111617 | 2D | |
| Female | CNM6L09-1S071-S01 | 832211617 | 2D | |
| 15 | ||||
| Male | CNM6L15-1P071-S01 | 832121617 | 2D | |
| Female | CNM6L15-1S071-S01 | 832221617 | 2D | |
| 21 | ||||
| Male | CNM6L21-1P071-S01 | 832131617 | 2D | |
| Female | CNM6L21-1S071-S01 | 832231617 | 2D | |
| 25 | ||||
| Male | CNM6L25-1P071-S01 | 832141617 | 2D | |
| Female | CNM6L25-1S071-S01 | 832241617 | 2D | |
| 31 | ||||
| Male | CNM6L31-1P071-S01 | 832151617 | 2D | |
| Female | CNM6L31-1S071-S01 | 832251617 | 2D | |
| 37 | ||||
| Male | CNM6L37-1P071-S01 | 832161617 | 2D | |
| Female | CNM6L37-1S071-S01 | 832261617 | 2D | |
| 51 | ||||
| Male | CNM6L51-1P071-S01 | 832171617 | 2D | |
| Female | CNM6L51-1S071-S01 | 832271617 | 2D | |
PCB NanoD-Circuit-Vertical-Single Row-Plated Thru Hole-Metal Shell-Male_W
C_PCB.webp)

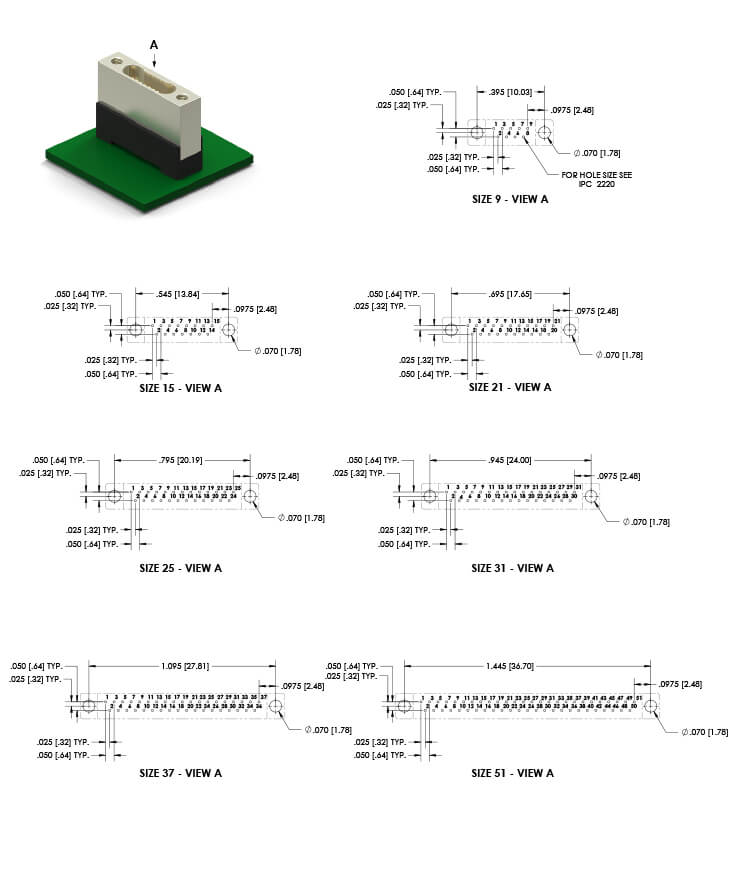

PCB NanoD-Circuit-Vertical-Single Row-Plated Thru Hole-Metal Shell-Female_W
C_PCB_F.webp)
