Vertical Single Row Vertical Surface Mount (Style 26) Connector

Aptiv Interconnect Micro offers Nano PCB Vertical Single Row Vertical SMT (Style 26) Connectors, designed for precision and durability in compact electronic assemblies. Featuring a metal shell with surface mount .025 x .075 (Style 26) and a 1-piece contact with rectangular flat tail termination, these connectors ensure superior soldering results without lead deformation. Operating from −55°C to 125°C, with high-temperature versions available up to 200°C (add HT), they deliver consistent performance in demanding environments.

Request Quote
Download Datasheet
Vertical Single Row Vertical Surface Mount (Style 26) Connector product image

Features and Benefits

  • Metal Shell Construction: Provides durability and EMI protection for critical applications.
  • Piece Contact Design: Ensures secure connection and consistent solder performance.
  • Wide Temperature Range: Operates reliably from −55°C to 125°C; HT versions up to 200°C.
  • High Electrical Performance: 33 mΩ max contact resistance (contact only), 1A max current rating.
  • Dielectric Strength: Withstands 250 VAC at sea level and 100 VAC at 70,000 ft with 1 mA leakage max.
  • Flexible Configurations: Available with 9 to 51 contacts for a variety of PCB layouts.
  • Ideal for Compact PCB Applications: Perfect for high-density designs requiring reliability and precision.

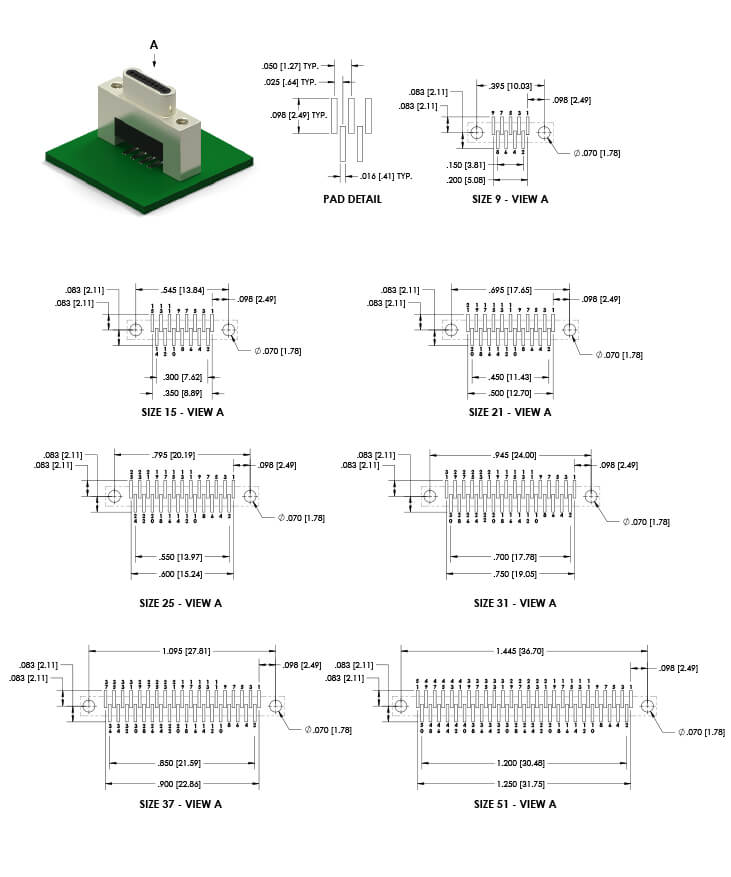

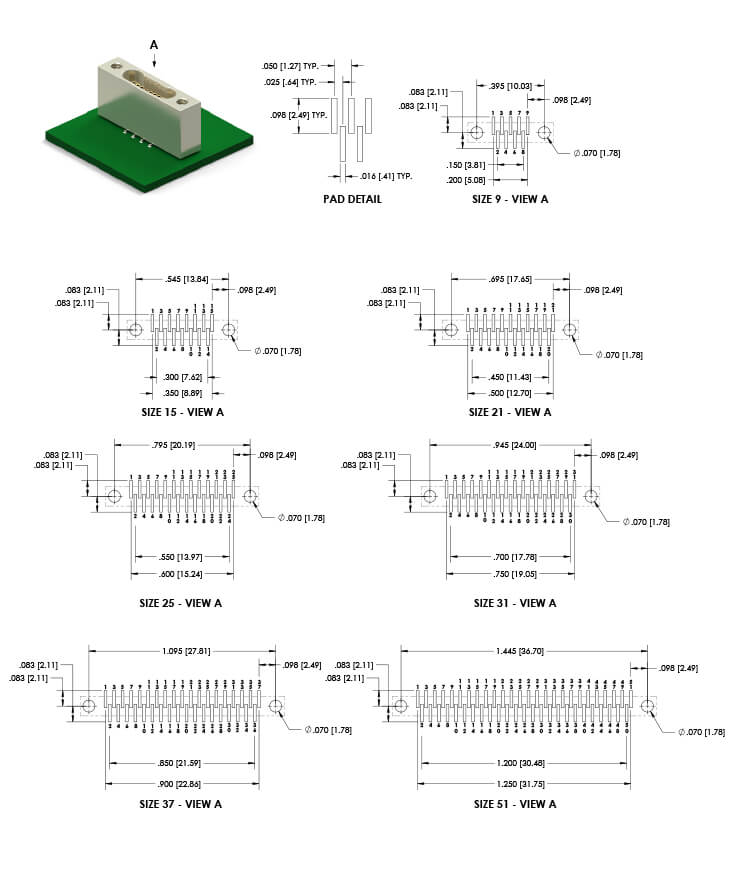

Specifications, Parts, and Filters

View All

Contact Resistance
33 milliohms max (contact only) and 87 milliohms max with 6" wire @ 1A.
Current Rating
1A max.
Dielectric Withstanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet; 1 mA leakage current max.
Insulation Resistance
100 VDC and 5000 megohms min.

Engaging Force
5 oz max.
Separation Force
0.4 oz min.
Mating/Unmating Force
7 oz × number of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity.
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity.
Durability
EIA-364-09, 200 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA-364-26 Condition B, 48 hours.

Signal Pin Contacts
C17410 Beryllium Copper per ASTM B768
Signal Socket Contacts
C17410 Beryllium Copper per ASTM B768
Contact Plating
Gold Plating per ASTM B488
PC Tails
C17410 Beryllium Copper per ASTM B768
PC Tail Plating
60/40 Tin/Lead Plating per SAE-AMS-P-81728, or Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or 300 Series Stainless Steel per ASTM A582
Shell Plating
Electroless Nickel per SAE-AMS2404, or Cadmium per SAE-AMS-QQ-P-416 or Black Anodize per MIL-A-8625 or Passivated per AMS2700
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F
Hardware
300 Series Stainless Steel per ASTM A582/A582M or ASTM A581/A581M, Passivated per SAE AMS-2700
