Vertical Surface Mount Plastic Shell Male Only (Style 36) Connector
Aptiv Interconnect Micro offers PCB Vertical SMT Plastic Shell Male Only (Style 36) Connectors, engineered for precision and durability in surface mount applications. Featuring a rectangular flat tail for superior solder results and no lead deformation, these connectors ensure long-term reliability. They operate across a temperature range of −55°C to 125°C, with high-temperature versions up to 200°C (add HT) for demanding conditions. Available in 9 to 65 contact configurations, they provide flexibility for a wide range of PCB layouts and high density designs.
Features and Benefits
- Plastic Shell Construction: Lightweight and robust, offering reliable mechanical stability.
- Rectangular Flat Tail Termination: Provides consistent solder quality and prevents lead deformation.
- Wide Operating Temperature Range: Performs from −55°C to 125°C; HT versions extend up to 200°C.
- Reliable Electrical Characteristics: Contact Resistance
- Available in 9–65 Contacts: Supports multiple configurations for design versatility.
- Ideal for High-Density PCB Applications: Ensures dependable signal integrity in compact electronic assemblies.
Specifications, Parts, and Filters
C_Dimensional.webp)
| 2D DIMENSIONAL DATA - NANO CIRCUIT DUAL ROW | |||||
|---|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle | D |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] | .175 [4.44] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] | .250 [6.35] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] | .325 [8.25] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] | .375 [9.52] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] | .450 [11.43] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] | .525 [13.33] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] | .700 [17.78] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] | .875 [22.22] |
| Nano Series Circuit Vertical Dual Row (Low Profile-Male Only) Surface Mount Plastic Shell | |||||
|---|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D | PCB |
| 9 | |||||
| Male | CNP36L09-2P071-S01 | 832318317 | 2D | PCB | |
| 15 | |||||
| Male | CNP36L15-2P071-S01 | 832328317 | 2D | PCB | |
| 21 | |||||
| Male | CNP36L21-2P071-S01 | 832338317 | 2D | PCB | |
| 25 | |||||
| Male | CNP36L25-2P071-S01 | 832348317 | 2D | PCB | |
| 31 | |||||
| Male | CNP36L31-2P071-S01 | 832358317 | 2D | PCB | |
| 37 | |||||
| Male | CNP36L37-2P071-S01 | 832368317 | 2D | PCB | |
| 51 | |||||
| Male | CNP36L51-2P071-S01 | 832378317 | 2D | PCB | |
| 65 | |||||
| Male | CNP36L65-2P071-S01 | 832388317 | 2D | PCB | |

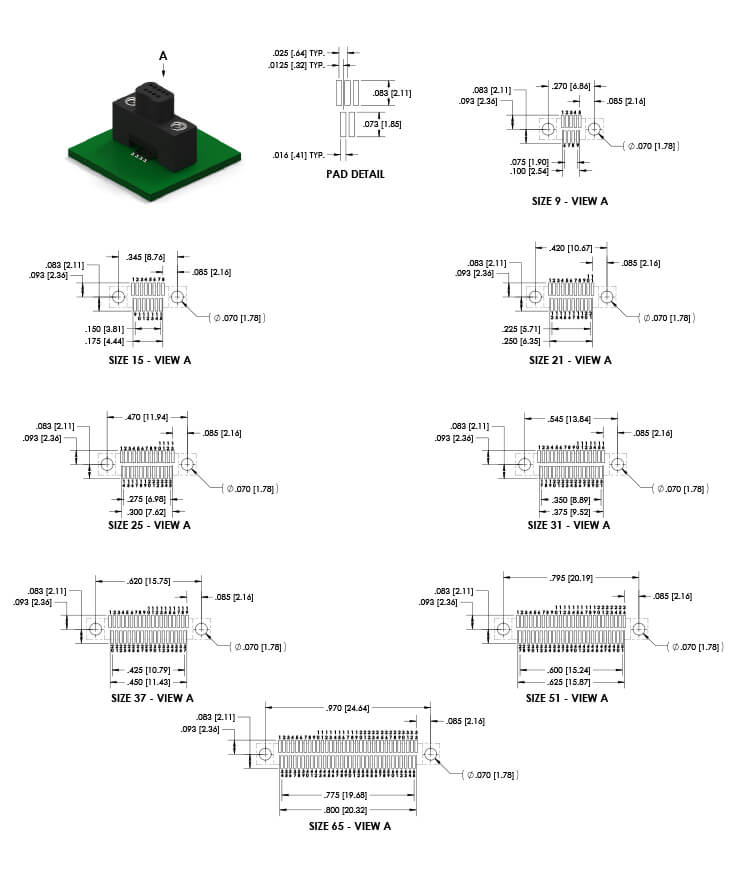

C_PCB.webp)
Part Number: 832318717
Engineering Part Number: CNP36L09-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832328717
Engineering Part Number: CNP36L15-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832338717
Engineering Part Number: CNP36L21-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832348717
Engineering Part Number: CNP36L25-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832358717
Engineering Part Number: CNP36L31-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 31, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832368717
Engineering Part Number: CNP36L37-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832378717
Engineering Part Number: CNP36L51-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 832388717
Engineering Part Number: CNP36L65-2P071
Termination: PCB, Contact Gender: Pin, Number of signal contacts: 65, Hardware: Threaded Hole, Number of Rows: 2, PCB Termination: SMT, Thru-Hole PCB Layout: .025 x .075 (style 36), Orientation: Vertical, Lead Finish: Tin Lead, Shell Material: Plastic, Max Temp: 125 C, QPL: No
