Product Overview
Dual Row Center Jackscrew Connector
Aptiv Interconnect Micro offers Nano Strip Dual Row Center Jackscrew Connectors, designed for compact, high-reliability applications requiring secure mechanical fastening. These connectors feature a dual-row JSB plastic strip with wire leads in a single-ended configuration. They operate from −55°C to 125°C, with high-temperature (HT) versions up to 200°C, and are QPL qualified to MIL-DTL-32139, ensuring proven performance and durability in demanding environments.
Features and Benefits
- Wide Temperature Range: Operates from −55°C to 125°C; HT versions rated up to 200°C.
- Consistent Electrical Performance: Contact resistance of 33 milliohms max (contact only) and 87 milliohms max (with 6" wire at 1A).
- Current Rating: Supports up to 1A maximum.
- High Dielectric Strength: Withstands 250 VAC at sea level and 100 VAC at 70,000 feet.
- Excellent Insulation Resistance: 100 VDC and 5000 megohms minimum.
- Secure Connection Options: Available with optional guide posts and threaded hardware.

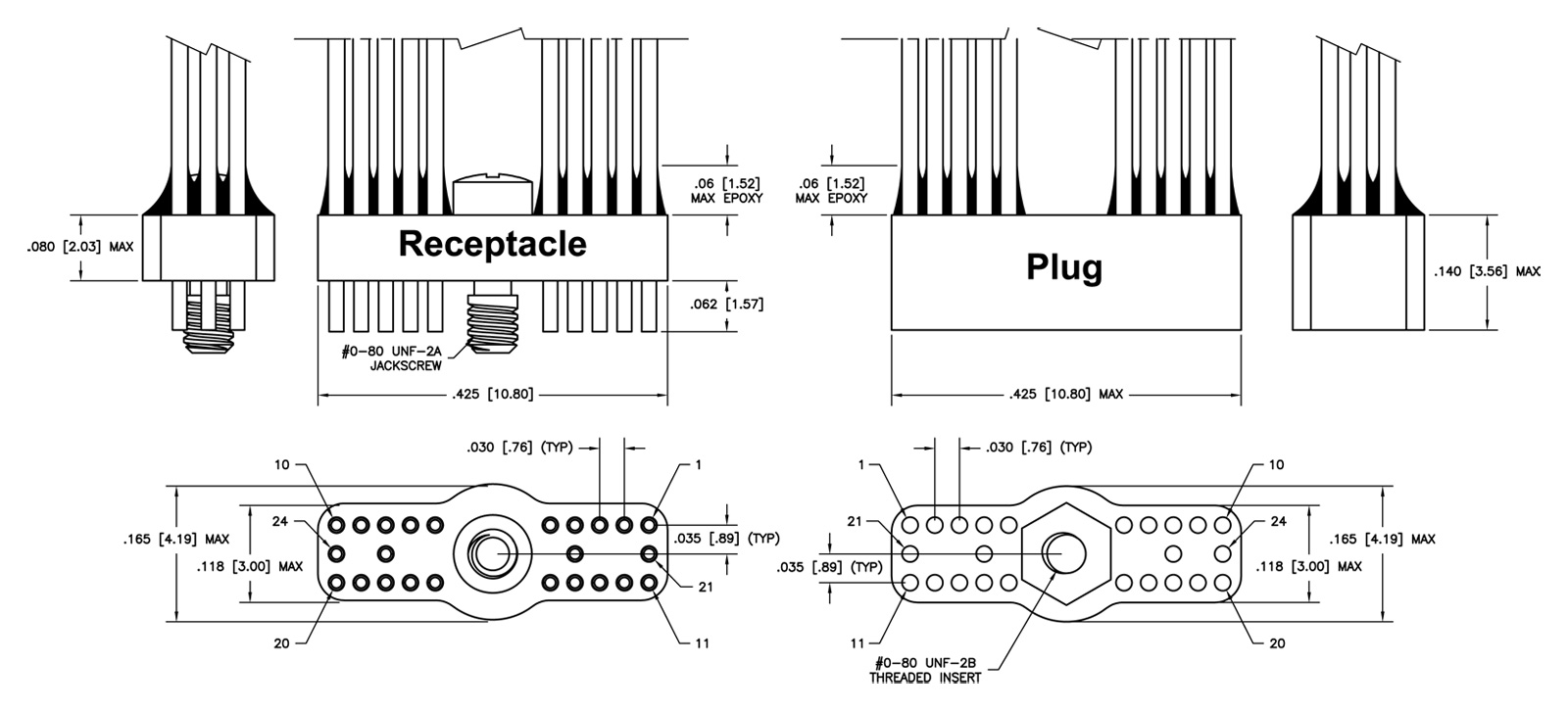

- Dual-Row Compact Design: 24 contacts for higher density in limited spaces.
- QPL Qualified: Meets MIL-DTL-32139 standards for nano connector reliability.

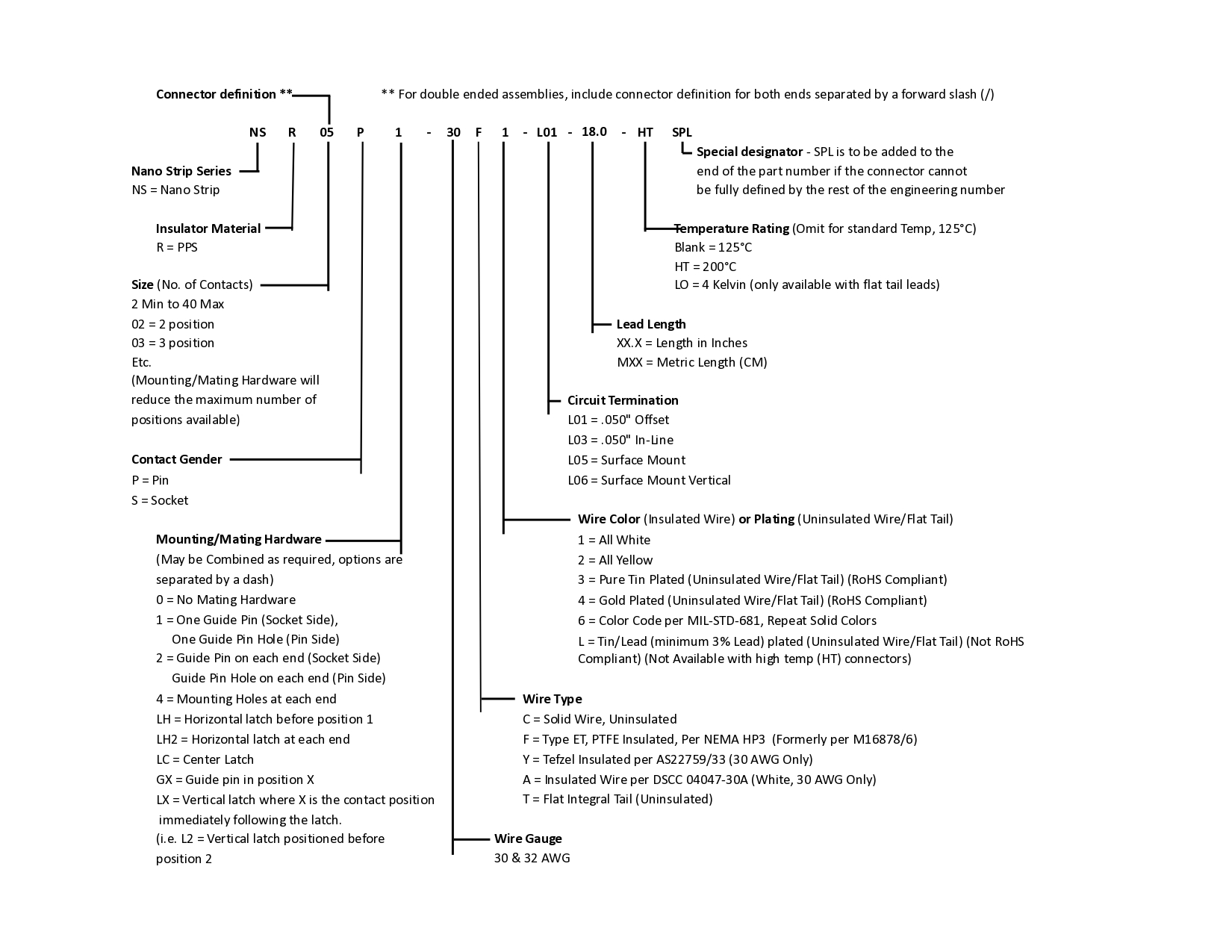

Specifications, Parts, and Filters
View All
Contact Resistance
33 milliohms max (contact only) and 87 milliohms max with 6" wire @ 1A.
Current Rating
1A max.
Dielectric Withstanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet; 1 mA leakage current max.
Insulation Resistance
100 VDC and 5000 megohms min.
Engaging Force
5 oz max.
Separation Force
0.4 oz min.
Mating/Unmating Force
7 oz × # of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity.
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity.
Durability
EIA-364-09, 200 mating cycles; passes mating force, contact resistance, engaging force, and separation forces
Salt Spray
EIA 364-26 Condition B-48 hours
Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194 or C17410 Beryllium Copper per ASTM B768
Signal Socket Contacts
C26000 Brass Alloy per ASTM B135 or C17410 Beryllium Copper per ASTM B768
Contact Plating
Gold Plating per ASTM B488
PC Tails
Copper Wire per A-A-59551 Type S or C17410 Beryllium Copper per ASTM B768
PC Tail Plating
Tin Plating per ASTM B545, or 60/40 Tin/Lead Plating per SAE-AMS-P-81728, or Gold Plating per ASTM B488
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F

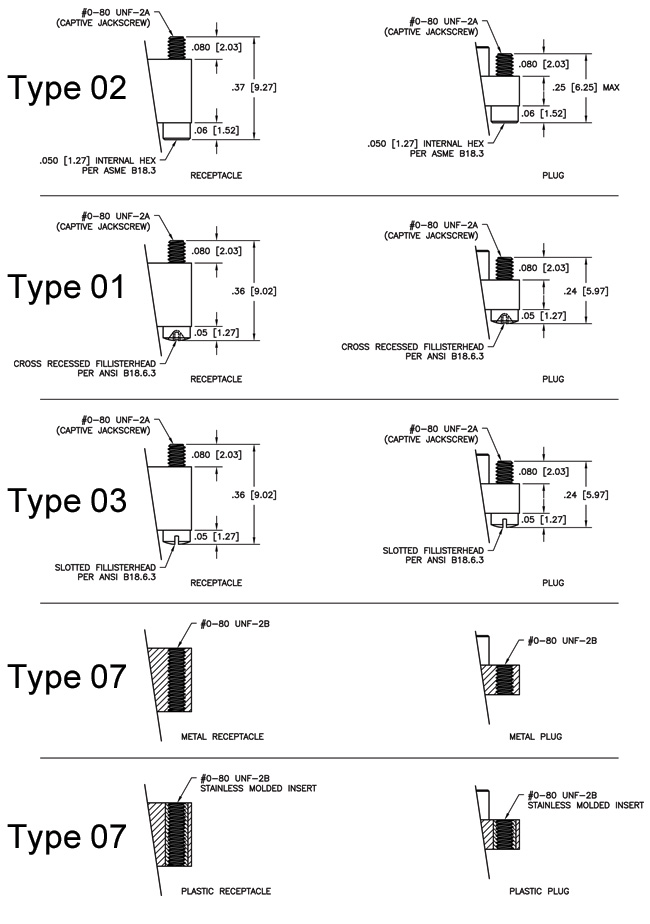

Hardware
300 Series Stainless Steel per ASTM A582/A582M or ASTM A581/A581M, Passivated per SAE AMS-2700
