Wired Dual Row Double Ended Metal Shell Connector

Aptiv Interconnect Micro, formerly known as Ulti-Mate Connector, offers Nano Wired Dual Row Double Ended Metal Shell Connectors designed for durability and reliability in demanding environments. These metal shell connectors with wire leads operate across a wide temperature range from −55°C to 125°C, with high-temperature versions available up to 200°C (add HT). Available in configurations from 9 to 65 contacts, they meet MIL-DTL-32139 QPL qualifications, ensuring military-grade performance. Constructed with high-quality materials and precision plating, these connectors deliver exceptional electrical and mechanical integrity for mission-critical applications.

Request Quote
Download Datasheet
Wired Dual Row Double Ended Metal Shell Connector product image

Features and Benefits

  • Rugged Metal Shell: Made from 6061-T6 Aluminum or 300 Series Stainless Steel for superior strength and protection.
  • Wide Temperature Range: Performs reliably from −55°C to 125°C; high-temp versions up to 200°C available (add HT).
  • High-Quality Contact Materials: Signal pins use C17200 Beryllium Copper per ASTM B194; sockets use C26000 Brass Alloy per ASTM B135.
  • Gold-Plated Contacts: Gold plating per ASTM B488 ensures excellent conductivity and corrosion resistance.
  • Durable Insulator Options: Available in LCP GLCP-30F or PPS per MIL-M-24519 GST-40F for long-term stability.
  • Flexible Contact Configurations: Offered in 9 to 65 contacts for a range of design requirements.
  • MIL-DTL-32139 Qualified: QPL-certified to meet stringent military and aerospace standards.

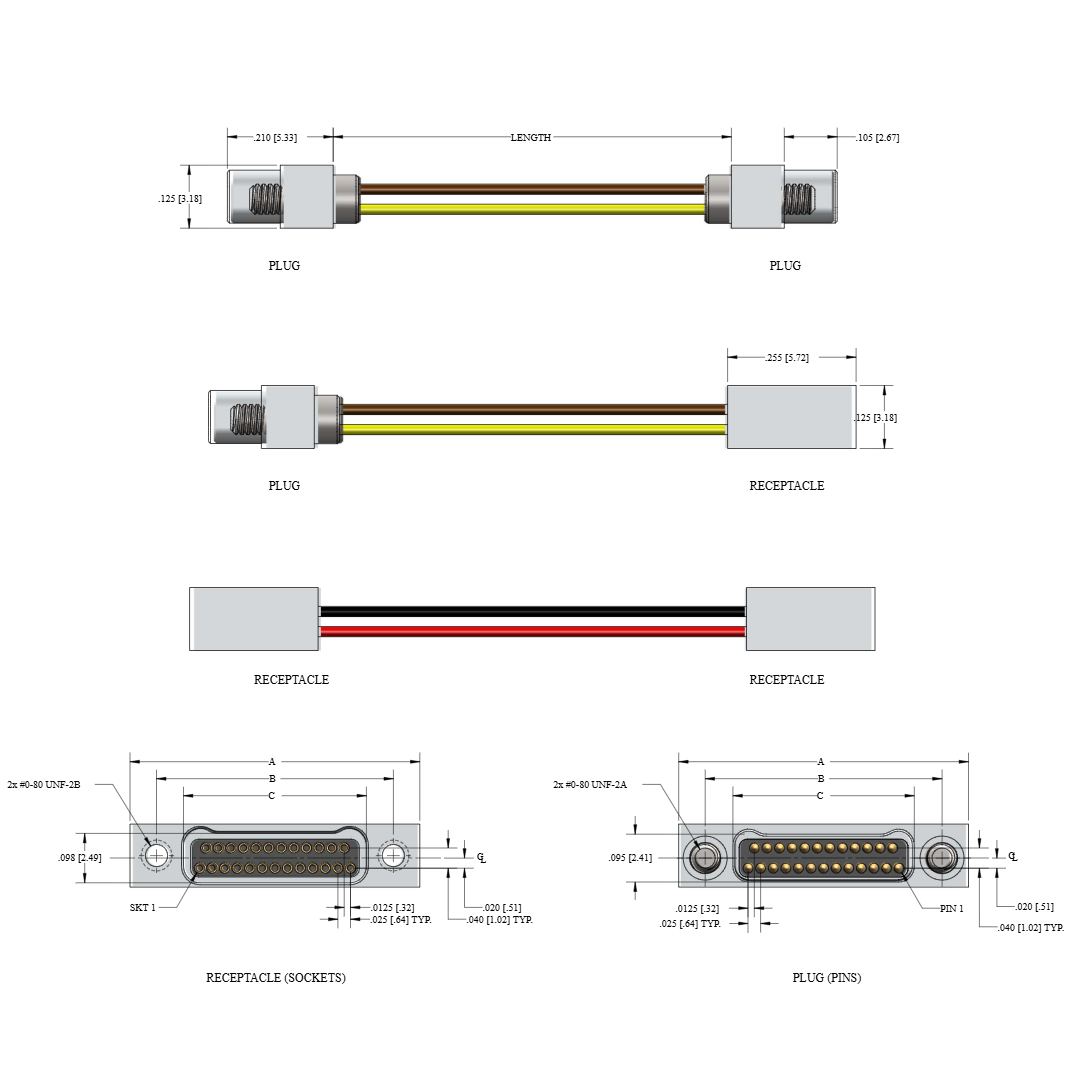

Specifications, Parts, and Filters

View All

Contact Resistance
33 milliohm max contact only and 87 milliohms max with 6" wire @ 1A
Current Rating
1A max.
Dielectric WithStanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet. 1mA leakage current max.
Insulation Resistance
100 VDC and 5000 Megohms min.

Engaging Force
5 oz max.
Separation Force
.4 oz min.
Mating/Unmating Force
7 oz x # of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity
Durability
EIA-364-09, 200 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours

Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C26000 Brass Alloy per ASTM B135
Contact Plating
Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or 300 Series Stainless Steel per ASTM A582
Shell Plating
Electroless Nickel per SAE-AMS2404, or Cadmium per SAE-AMS-QQ-P-416 or Black Anodize per MIL-A-8625 or Passivated per AMS2700
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F

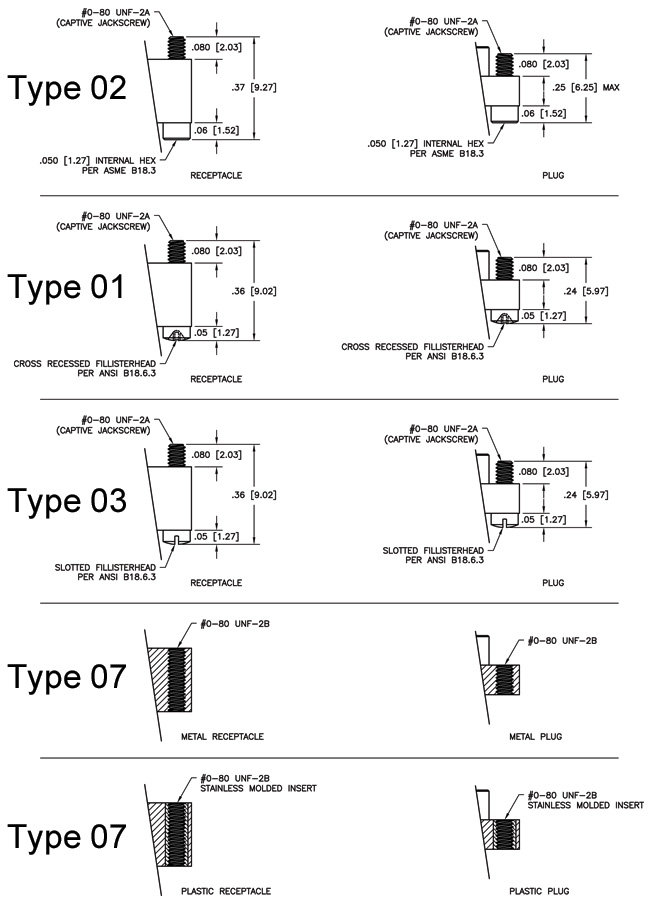

Hardware
300 Series Stainless Steel per ASTM A582/A582 or ASTM A581/A581M, Passivated per SAE AMS-2700
