Wired Dual Row Single Ended Metal Shell Connector

Aptiv Interconnect Micro, formerly known as Ulti-Mate Connector, offers Wired Dual Row Single Ended Metal Shell Connectors engineered for reliability and precision in demanding environments. These metal shell connectors with wire leads operate within a temperature range of −55°C to 125°C, with high-temperature versions available up to 200°C (add HT). Available in 9 to 65 contacts, they are QPL qualified to MIL-DTL-32139 standards, ensuring superior performance and compliance with military specifications. Built to endure vibration, shock, durability, and salt spray tests, these connectors are ideal for rugged applications.

Request Quote
Download Datasheet
Wired Dual Row Single Ended Metal Shell Connector product image

Features and Benefits

  • Dual Row Configuration: Provides high contact density for compact, space-efficient designs.
  • Metal Shell Construction: Offers robust mechanical protection and EMI shielding.
  • Wide Temperature Range: Operates from −55°C to 125°C, extendable to 200°C (HT option).
  • Reliable Mechanical Performance: Engaging force of 5 oz max., separation force of 0.4 oz min., and mating/unmating force of 7 oz × number of contacts max.
  • Tested for Durability: Passes vibration, shock, salt spray, and endurance testing for dependable operation.
  • MIL-DTL-32139 Qualified: Ensures consistent quality and performance to military-grade standards.
  • Flexible Contact Options: Available in 9 to 65 contact configurations to suit diverse interconnect requirements.

Specifications, Parts, and Filters

View All

Contact Resistance
33 milliohm max contact only and 87 milliohms max with 6" wire @ 1A
Current Rating
1A max.
Dielectric WithStanding Voltage
250 VAC at sea level, 100 VAC at 70,000 feet. 1mA leakage current max.
Insulation Resistance
100 VDC and 5000 Megohms min.

Engaging Force
5 oz max.
Separation Force
.4 oz min.
Mating/Unmating Force
7 oz x # of contacts max.
Vibration
EIA-364-28 Condition IV, 1 microsecond max discontinuity
Shock
EIA-364-27 Condition G, 1 microsecond max discontinuity
Durability
EIA-364-09, 200 matings, passes Mating Force, CR, Eng and Sep Forces
Salt Spray
EIA 364-26 Condition B-48 hours

Signal Pin Contacts
C17200 Beryllium Copper per ASTM B194
Signal Socket Contacts
C26000 Brass Alloy per ASTM B135
Contact Plating
Gold Plating per ASTM B488
Shell
6061-T6 Aluminum per SAE-AMS-QQ-A200/8 or 300 Series Stainless Steel per ASTM A582
Shell Plating
Electroless Nickel per SAE-AMS2404, or Cadmium per SAE-AMS-QQ-P-416 or Black Anodize per MIL-A-8625 or Passivated per AMS2700
Insulator Material
LCP (Liquid Crystal Polymer) GLCP-30F or PPS per MIL-M-24519 GST-40F

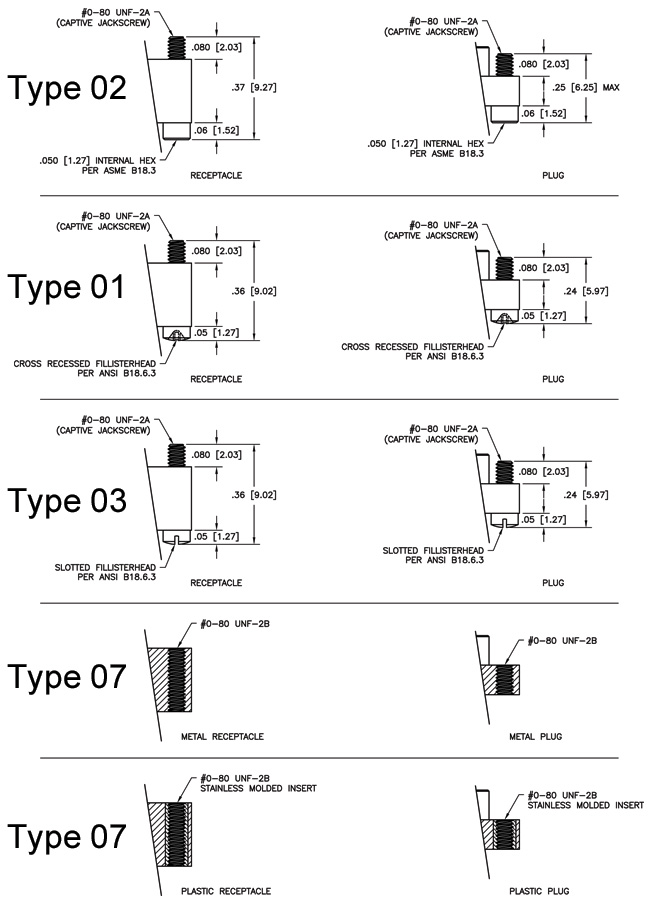

Hardware
300 Series Stainless Steel per ASTM A582/A582 or ASTM A581/A581M, Passivated per SAE AMS-2700
