Product Overview
Wired Dual Row Single Ended Plastic Shell Connector
Aptiv Interconnect Micro offers Wired Dual Row Single Ended Plastic Shell Connectors designed for high performance in compact and lightweight applications. These plastic shell connectors with wire leads operate within a standard temperature range of −55°C to 125°C, with high-temperature versions available up to 200°C (add HT). Available in 9 to 65 contact configurations, they provide flexibility for a wide range of interconnect solutions. As a QPL qualified supplier for MIL-DTL-32139 products, Aptiv ensures military-grade reliability and durability.
Features and Benefits
- Lightweight Plastic Shell: Provides durability while minimizing weight for compact systems.
- Dual Row Design: Supports higher contact density in limited space.
- Wide Temperature Range: Operates from −55°C to 125°C, extendable to 200°C (HT option).
- Reliable Electrical Performance: Ensures consistent connectivity under varying environmental conditions.
- MIL-DTL-32139 Qualified: Meets stringent military and aerospace standards for quality and reliability.
- Flexible Contact Options: Available in 9 to 65 contact configurations to suit diverse application needs.
Specifications, Parts, and Filters
| 2D DIMENSIONAL DATA - NANO WIRED DUAL ROW | ||||
|---|---|---|---|---|
| Size | A | B |
Plug
C
|
Receptacle |
| 9 | .375 [9.52] | .270 [6.86] | .160 [4.06] | .163 [4.14] |
| 15 | .450 [11.43] | .345 [8.76] | .235 [5.97] | .238 [6.04] |
| 21 | .525 [13.33] | .420 [10.67] | .310 [7.87] | .313 [7.95] |
| 25 | .575 [14.60] | .470 [11.94] | .360 [9.14] | .363 [9.22] |
| 31 | .650 [16.51] | .545 [13.84] | .435 [11.05] | .438 [11.12] |
| 37 | .725 [18.41] | .620 [15.75] | .510 [12.95] | .513 [13.03] |
| 51 | .900 [22.86] | .795 [20.19] | .685 [17.40] | .688 [17.47] |
| 65 | 1.075 [27.30] | .970 [24.64] | .860 [21.84] | .863 [21.92] |
| Nano Series Wired Dual Row Single Ended Plastic Shell | |||||
|---|---|---|---|---|---|
| Size | Gender | Eng# | Ordering# | 2D | 3D |
| 9 | |||||
| Male | NPL09-2P02-30F6-18.0 | 833318622 | 2D | 3D | |
| Female | NPL09-2S07-30F6-18.0 | 833418627 | 2D | 3D | |
| Female W/Hardware | NPL09-2S02-30F6-18.0 | 833418622 | 2D | 3D | |
| 15 | |||||
| Male | NPL15-2P02-30F6-18.0 | 833328622 | 2D | 3D | |
| Female | NPL15-2S07-30F6-18.0 | 833428627 | 2D | 3D | |
| Female W/Hardware | NPL15-2S02-30F6-18.0 | 833428622 | 2D | 3D | |
| 21 | |||||
| Male | NPL21-2P02-30F6-18.0 | 833338622 | 2D | 3D | |
| Female | NPL21-2S07-30F6-18.0 | 833438627 | 2D | 3D | |
| Female W/Hardware | NPL21-2S02-30F6-18.0 | 833438622 | 2D | 3D | |
| 25 | |||||
| Male | NPL25-2P02-30F6-18.0 | 833348622 | 2D | 3D | |
| Female | NPL25-2S07-30F6-18.0 | 833448627 | 2D | 3D | |
| Female W/Hardware | NPL25-2S02-30F6-18.0 | 833448622 | 2D | 3D | |
| 31 | |||||
| Male | NPL31-2P02-30F6-18.0 | 833358622 | 2D | 3D | |
| Female | NPL31-2S07-30F6-18.0 | 833458627 | 2D | 3D | |
| Female W/Hardware | (NPL31-2S02-30F6-18.0) | 833458622 | 2D | 3D | |
| 37 | |||||
| Male | NPL37-2P02-30F6-18.0 | 833368622 | 2D | 3D | |
| Female | NPL37-2S07-30F6-18.0 | 833468627 | 2D | 3D | |
| Female W/Hardware | NPL37-2S02-30F6-18.0 | 833468622 | 2D | 3D | |
| 51 | |||||
| Male | NPL51-2P02-30F6-18.0 | 833378622 | 2D | 3D | |
| Female | NPL51-2S07-30F6-18.0 | 833478627 | 2D | 3D | |
| Female W/Hardware | NPL51-2S02-30F6-18.0 | 833478622 | 2D | 3D | |
| 65 | |||||
| Male | NPL65-2P02-30F6-18.0 | 833388622 | 2D | 3D | |
| Female | NPL65-2S07-30F6-18.0 | 833488627 | 2D | 3D | |
| Female W/Hardware | NPL65-2S02-30F6-18.0 | 833488622 | 2D | 3D | |
Part Number: 833368622
Engineering Part Number: NPL37-2P02-30F6-18.0

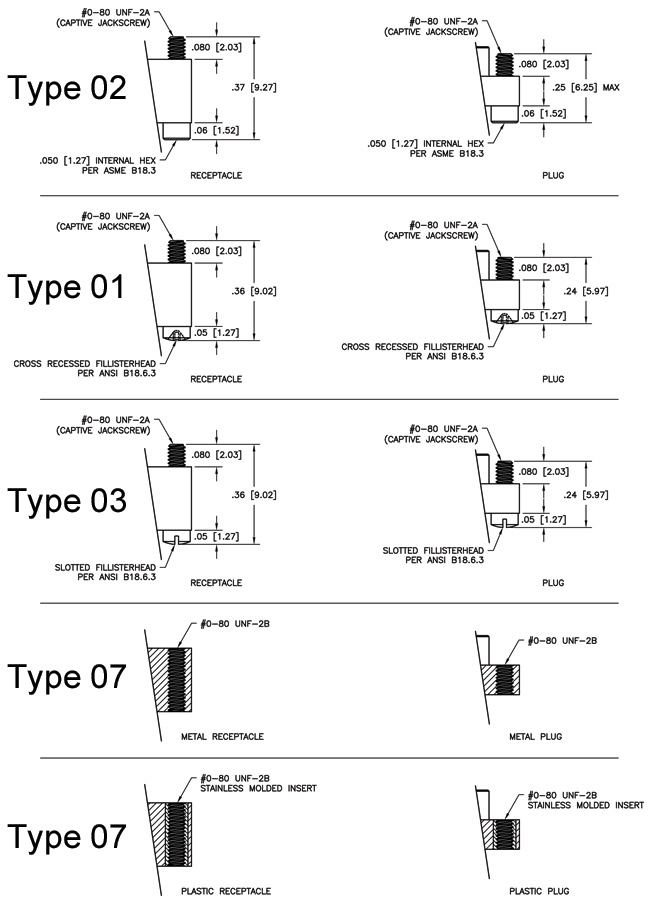

Termination: Wired, Contact Gender: Pin, Number of signal contacts: 37, Hardware: Allen Head Jackscrew, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833378622
Engineering Part Number: NPL51-2P02-30F6-18.0
Termination: Wired, Contact Gender: Pin, Number of signal contacts: 51, Hardware: Allen Head Jackscrew, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833388622
Engineering Part Number: NPL65-2P02-30F6-18.0
Termination: Wired, Contact Gender: Pin, Number of signal contacts: 65, Hardware: Allen Head Jackscrew, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833418627
Engineering Part Number: NPL09-2S07-30F6-18.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833418637
Engineering Part Number: NPL09-2S07-30F6-36.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 9, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833428627
Engineering Part Number: NPL15-2S07-30F6-18.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833428637
Engineering Part Number: NPL15-2S07-30F6-36.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 15, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833438627
Engineering Part Number: NPL21-2S07-30F6-18.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833438637
Engineering Part Number: NPL21-2S07-30F6-36.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 21, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 36 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
Part Number: 833448627
Engineering Part Number: NPL25-2S07-30F6-18.0
Termination: Wired, Contact Gender: Socket, Number of signal contacts: 25, Hardware: Threaded Hole, Number of Rows: 2, Wire AWG: 30, Wire Type: Stranded w/ Teflon insulation (NEMA HP3-ET), Wire Color: 10 Repeating Colors, Wire Length: 18 in., Shell Material: Plastic, Max Temp: 125 C, QPL: No
