EIA & MEIA Series RF Connectors

Aptiv Interconnect's EIA (Electronic Industries Alliance) Series are the standard for high-power RF transmission in broadcast and cellular infrastructure. Characterized by their large size and flanged mounting, EIA connectors handle significant kilowatt power levels with minimal signal loss. The MEIA™ (Miniaturized EIA) Series is the next generation, offering equivalent power handling in a 30% smaller and 40% lighter form factor. MEIA connectors use a threaded coupling for easier installation, addressing the challenges of high-density packaging and field deployment in modern applications like 5G infrastructure.

Request Quote
Download Datasheet

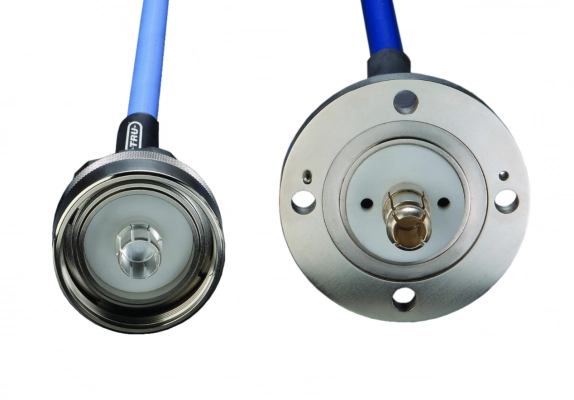

EIA & MEIA Series RF Connectors product image

Features and Benefits

  • EIA Series
  • Exceptional Power Handling: Transmits kilowatts of RF power.
  • Low PIM Performance: Minimizes Passive Intermodulation.
  • Rugged Construction: Built to withstand demanding environments.
  • Standardized Interfaces: Ensures broad compatibility.
  • MEIA Series
  • Equivalent Power, Smaller Size: Same high-power capability in a smaller, lighter footprint.
  • Threaded Coupling: More efficient, user-friendly installation.
  • Enhanced Reliability: Provides a consistent and secure connection.
  • Optimized for Modern Infrastructure: Ideal for space-constrained and weight-sensitive applications.
  • Adaptable: Seamlessly integrates with existing EIA systems via adapters.

Specifications, Parts, and Filters

View All

Impedance
50 Ohms (standard)
Superior PIM (Passive Intermodulation)
Typically ≤ -155 dBc to -160 dBc
Low VSWR & Insertion Loss
Designed for minimal signal reflection and power loss

EIA Series
Frequency Range
DC to 7.5 GHz (for 7/8"); lower for larger sizes (e.g., 3-1/8" typically up to 1-2 GHz).
Average Power
Varies significantly by size (e.g., 7/8" up to ~2.2 kW @ 900 MHz; 3-1/8" up to ~11 kW @ 960 MHz).
Voltage Rating
Varies by size (e.g., 7/8" up to ~2121 VRMS; 3-1/8" up to ~5656 VRMS).
MEIA Series
Frequency Range
DC to 6 GHz (for MEIA-875); DC to 3 GHz (for MEIA-1625).
Power Handling
Equivalent to comparable EIA line sizes
Voltage Rating
Often very high, e.g., 5100 VRMS to 10400 VRMS.

Materials
Typically constructed from brass, copper alloy, or stainless steel, with plating options like nickel, silver, or tri-metal for enhanced conductivity and corrosion resistance.
Insulator Material
PTFE (Polytetrafluoroethylene) for excellent dielectric properties.

EIA Series
Coupling Mechanism
Flange and bolt attachment
Sizes
Designated by the outer conductor's inner diameter
Mating Cycles
≥ 500 cycles.
MEIA Series
Coupling Mechanism
Threaded
Sizes
Designated similar to EIA by approximate line sizes
Mating Cycles≥ 500 cycles
≥ 500 cycles

Temperature Range
-55°C to +165°C
Thermal Shock
MIL-STD-202, Method 107, Test Condition B.
Vibration
MIL-STD-202, Method 204, Test Condition D.
Shock
MIL-STD-202, Method 213, Test Condition I.
Moisture Resistance
MIL-STD-202, Method 106.
Corrosion (Salt Fog)
MIL-STD-202, Method 101, Test Condition B
Weatherproofing
Both series offer excellent sealing capabilities
