Product Overview

N Series RF Connector

The N Series RF connector (Type N) by Aptiv Interconnect is a robust, medium-sized, threaded coaxial connector. Developed in the 1940s, it was among the first RF connectors to operate in the microwave frequency range (typically up to 11 GHz, with precision versions reaching 18 GHz). Its threaded coupling ensures a vibration-proof and weather-resistant connection, making it ideal for outdoor and demanding environments. The N Series is widely used in antennas, base stations, broadcast equipment, test & measurement instruments, radar, and wireless communications. Trust Aptiv Interconnect's N Series for critical RF connectivity.

Request Quote
Download Datasheet

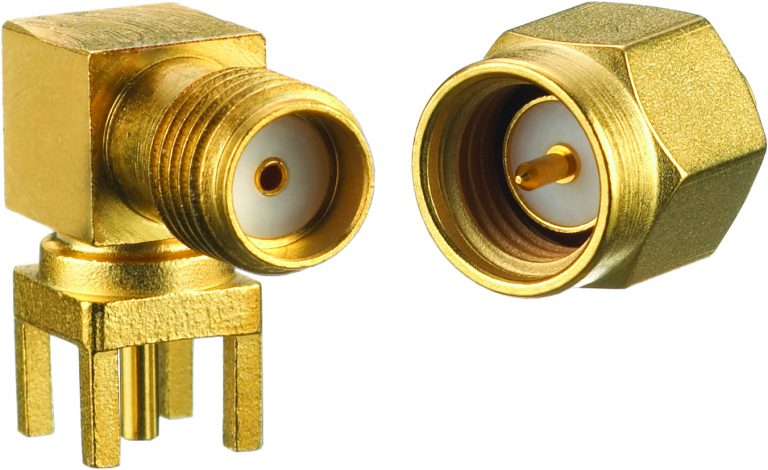

N Series RF Connector product image

Features and Benefits

  • Reliable Threaded Coupling: Secure, stable, vibration-resistant connection for consistent electrical performance.
  • Broad Frequency Range: Operates up to 11 GHz (standard) or 18 GHz (precision) for RF and microwave applications.
  • Excellent Electrical Performance: Low VSWR and insertion loss maintain signal integrity and minimize power loss.
  • Weatherproof Design: Weather-sealed, suitable for outdoor antenna installations and exposed environments.
  • 50 Ohm Impedance: Standardized for compatibility with most RF transmission systems (75 Ohm version available).
  • Durable Construction: Passivated stainless steel with gold-plated BeCu center contact for reliability and corrosion resistance.
  • Versatile Termination Options: Available in various configurations (straight, right-angle, bulkhead, PCB mount) and termination styles (solder, crimp, clamp).
  • Global Standard: Universally recognized, ensuring broad availability and intermateability.

Specifications, Parts, and Filters

View All

Impedance
50 Ohms (standard); 75 Ohms (for specific video/broadcast applications)
Frequency Range
DC to 11 GHz (standard); DC to 18 GHz or 26.5 GHz (precision/high-performance versions)
Voltage Rating
1000 VRMS (max.)
Dielectric Withstanding Voltage
2500 VRMS (min.)
Contact Resistance
Center Contact
≤ 1.0 mΩ
Outer Contact
≤ 0.5 mΩ
VSWR (Voltage Standing Wave Ratio)
50 Ohm (Standard)
Typical ≤ 1.30 @ 11 GHz
50 Ohm (Precision)
Typical ≤ 1.20 @ 18 GHz
Insertion Loss
≤ 0.1 dB @ 6 GHz (typical)

Coupling Mechanism
Threaded
Mating Cycles
≥ 500 cycles (standard); up to 1000 cycles for high-grade versions.
Recommended Mating Torque
15-20 in-lbs
Cable Retention (typical)
Varies by cable type and termination method
Body Material
Brass or Stainless Steel
Center Contact Material
Beryllium Copper, Phosphor Bronze, or Brass (typically gold plated).
Insulator Material
PTFE

Temperature Range
-65°C to +165°C
Thermal Shock
MIL-STD-202, Method 107, Test Condition B
Vibration
MIL-STD-202, Method 204, Test Condition B
Shock
MIL-STD-202, Method 213, Test Condition I
Moisture Resistance
MIL-STD-202, Method 106
Corrosion (Salt Fog)
MIL-STD-202, Method 101, Test Condition B
