Product Overview

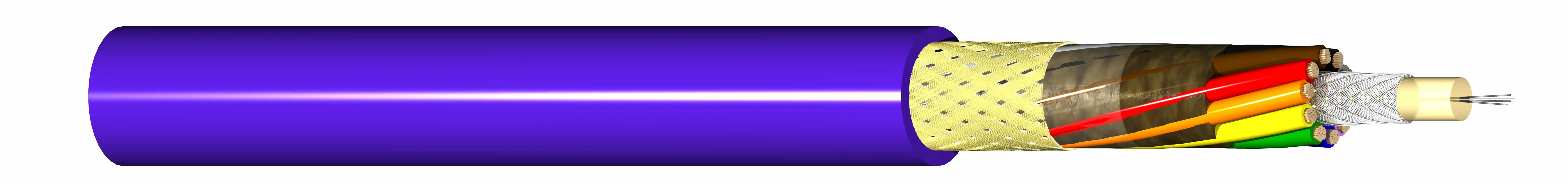

Xtreme-Marine® Cables
Xtreme-Marine® cables, part of Aptiv Interconnect's "Xtreme" line, are highly ruggedized subsea video cables. These cables are specifically engineered for the most demanding deepwater and marine environments, designed to deliver superior video, data, and power transmission over long distances and at significant depths. Distinguished by their robust construction, incorporating full water-blocked designs, improved strength members, and specialized "Xtreme-grade" polyurethane jackets, Xtreme-Marine® cables are built to withstand extreme hydrostatic pressure, abrasion, chemical exposure, and temperature fluctuations. They are crucial for professionals in oceanographic research, ROV (Remotely Operated Vehicle) operations, subsea oil and gas exploration, and other critical underwater applications requiring uncompromising reliability and performance.

Features and Benefits
- Extreme Deepwater Capability: Engineered to withstand significant hydrostatic pressures, ideal for deep-sea ROV tethers, oceanographic instruments, and subsea infrastructure.
- Superior Ruggedness & Durability: Features a robust construction with "Xtreme-grade" polyurethane jackets for exceptional abrasion, cut, and chemical resistance, ensuring long service life in harsh marine environments.
- Reliable Video & Data Transmission: Incorporates precision coaxial components for high-definition (SD/HD) video and high-speed data transmission, maintaining signal integrity over long cable runs.
- Electro-Optical Composite Design: Can integrate various elements including electrical conductors for power, data pairs (e.g., Ethernet), coaxial elements for video, and fiber optic strands for high-bandwidth data, all within a single cable.
- Full Water-Blocked Construction: Designed to prevent water ingress and migration along the cable, protecting internal components and ensuring reliable performance in submerged conditions.
- High Strength Members: Often includes synthetic (e.g., Kevlar, Vectran) or steel strength members to provide high breaking strength and resist tensile loads during deployment and recovery.
- Temperature Resilience: Designed to perform reliably across a wide range of operating temperatures encountered in subsea environments.
- Customizable Configurations: Aptiv Interconnect offers tailored designs to meet specific application requirements for length, strength, and material composition.
Specifications, Parts, and Filters
Part Number: FM020914S-1**
11 x 16AWG (1.32 mm2)
Part Number: FM020914S-2**
12 x 18AWG (1.00 mm2)
Part Number: FM020914S-11**
2 x 18AWG 2x 22AWG (300v)
Part Number: FM020914S-12**
1TSP16AWG, 1TSP 20AWG 1TP 26AWG 1 x16 overall shld
Part Number: FM020914S-13**
1TT 18AWG, 1TSP 24 1UTP 24 100 Ohm 2 x 22AWG
Part Number: FM070901
11C- 18AWG
Part Number: FM020914S-3**
12 x 20AWG (.52 mm2)
Part Number: FM020914S-4**
8 x 16AWG (1.32 mm2)
Part Number: FM020914S-5*
10 x 18AWG (1.0 mm2)
Part Number: FM020914S-6*
14 x 22AWG (.38 mm2)
